VIMP-00002-V01.01

Download the PEP PDF
Name of the PEP

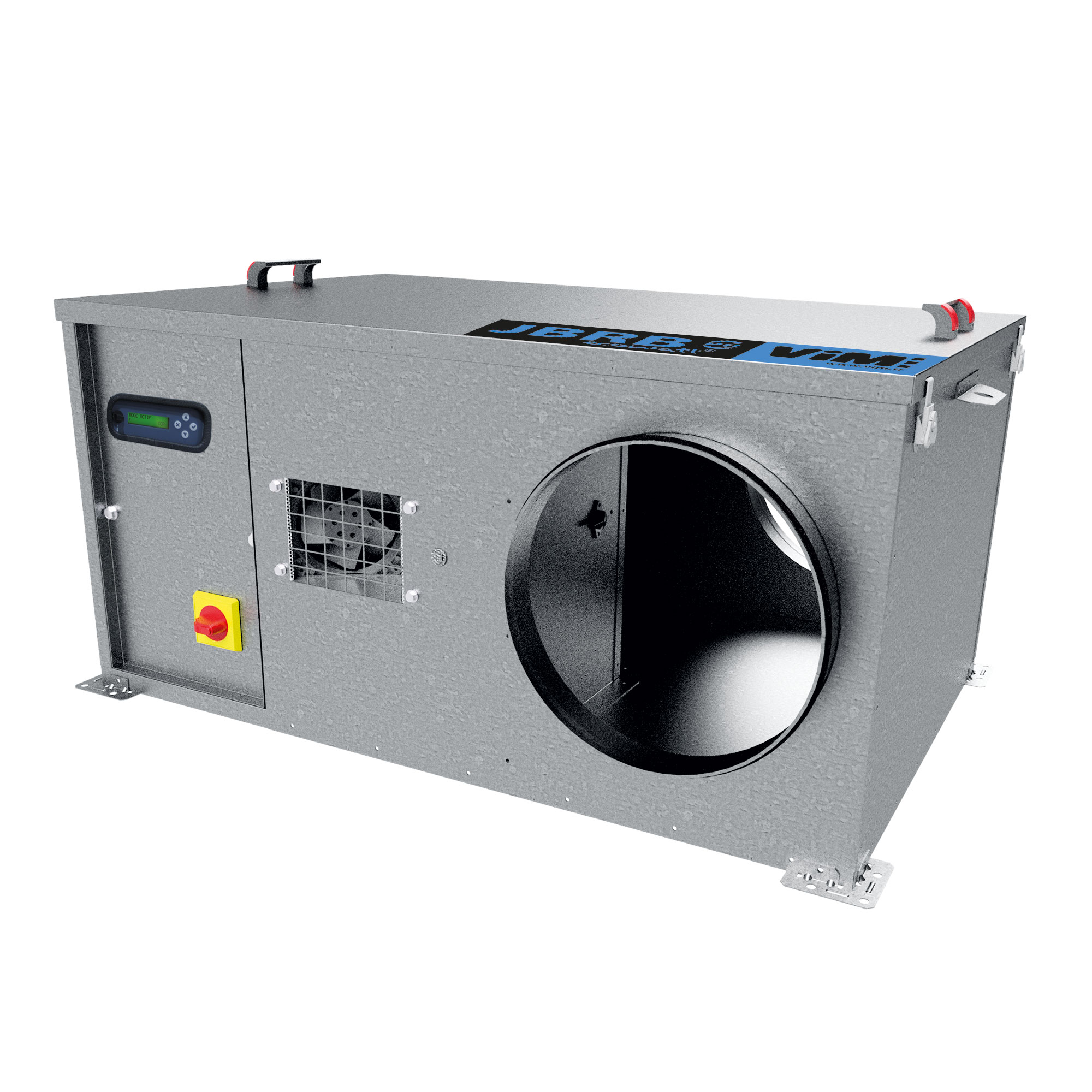

JBRB ECOWATT Caisson d’extraction basse consommation à entrainement direct, C4
Trademark / Owner
VIM
VIM
Collective PEP
No
Product classification
  • Heating, ventilation and air conditioning equipement
  • Ventilation units
  • Unidirectionnal ventilation unit
Date of publication
2018/12/26
Date of end of validity
2023/12/26
Date of verification
-
PCR
PEP-PCR-ed3-2015 04 02
PSR
No PSR
Use life time
17 years
Reference Product
JBRB ECOWATT PR 38 HD IS Référence: 262905
Energy model used
Fabrication et utilisation en France
Total mass
118.2 kg
Constitution
Plastic
1.80 %
Metal
81.10 %
Other
17.10 %
Comments
Emballage 15,0
Covered products or brand by text
JBRB ECOWATT PR : Gamme de caissons d’extraction à entrainement direct, classement C4 :10 tailles : 04 / 06 / 10 / 22 / 30 / 38 / 48 / 70 / 82 / 92.(Débits de 100 à 9200 m3/h, pression de 50 à 650 Pa).3 arrangements disponibles :- L : en ligne.- M : modulable, livré avec un bouchon pour 1 ou 2 aspirations à 90°.- D : double aspiration à 180°.2 types de rejet :- H : rejet horizontal - V : rejet vertical.Version sans isolation NU ou version isolée IS : isolation acoustique par laine de verre 25 mm (classement au feu M0) dans panneaux double peau.Modes de fonctionnement:- Régulé avec RMEC- Non régulé avec potentiomètre de réglage.
Functional Unit
1 m³/h
Description
Assurer un transfert d’air d’1 m3/h en vue de la ventilation d’un bâtiment pendant une durée de vie type de 17 ans
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 1.21E+0 1.5E-1 2.15E-3 3.42E-4 1.05E+0 1.61E-3 00E+0 1.28E-2 00E+0 00E+0 00E+0 1.04E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 2.27E-6 1.42E-8 3.99E-10 3.93E-11 2.25E-6 2.62E-10 00E+0 1.36E-9 00E+0 00E+0 00E+0 2.25E-6 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 4.82E-3 1.06E-3 5.74E-6 6.3E-7 3.75E-3 4.41E-6 00E+0 7.06E-5 00E+0 00E+0 00E+0 3.68E-3 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 7.78E-4 4.71E-4 9.78E-7 1.16E-7 3.05E-4 9.9E-7 00E+0 1.68E-5 00E+0 00E+0 00E+0 2.88E-4 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 3.48E-4 1.01E-4 6.46E-7 8.31E-8 2.46E-4 5.83E-7 00E+0 8.49E-6 00E+0 00E+0 00E+0 2.37E-4 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 3.33E-5 3.25E-5 5.73E-12 1.27E-12 7.81E-7 3.03E-11 00E+0 7.26E-7 00E+0 00E+0 00E+0 5.53E-8 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 1.14E+1 1.65E+0 3.09E-2 3.04E-3 9.74E+0 1.87E-2 00E+0 1.71E-1 00E+0 00E+0 00E+0 9.57E+0 00E+0 00E+0 0
Water pollution m³ 2.18E-1 1.02E-1 6.3E-4 6.49E-5 1.14E-1 4.8E-4 00E+0 5.56E-3 00E+0 00E+0 00E+0 1.09E-1 00E+0 00E+0 0
Air pollution m³ 6.97E+1 4.13E+1 1.44E-1 1.3E-2 2.82E+1 9.29E-2 00E+0 3.27E+0 00E+0 00E+0 00E+0 2.49E+1 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 4.73E+0 3.51E-1 9.08E-5 9.59E-6 4.37E+0 1.5E-3 00E+0 1.18E-2 00E+0 00E+0 00E+0 4.36E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.73E+0 3.51E-1 9.08E-5 9.59E-6 4.37E+0 1.5E-3 00E+0 1.18E-2 00E+0 00E+0 00E+0 4.36E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 9E+1 1.9E+0 3.11E-2 3.06E-3 8.81E+1 2.23E-2 00E+0 1.81E-1 00E+0 00E+0 00E+0 8.79E+1 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9E+1 1.9E+0 3.11E-2 3.06E-3 8.81E+1 2.23E-2 00E+0 1.8E-1 00E+0 00E+0 00E+0 8.79E+1 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 1.35E-2 1.49E-3 3.22E-6 5.39E-7 1.2E-2 9.38E-6 00E+0 1.43E-4 00E+0 00E+0 00E+0 1.18E-2 00E+0 00E+0 0
Hazardous waste disposed of kg 2.82E-2 2.34E-2 1.04E-6 5.12E-6 2.46E-3 2.35E-3 00E+0 2.3E-3 00E+0 00E+0 00E+0 1.61E-4 00E+0 00E+0 0
Non-hazardous waste disposed of kg 2E-1 1.87E-1 2E-5 2.19E-6 9.58E-3 2.69E-3 00E+0 9.58E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 6.51E-6 5.58E-6 2.25E-7 2.2E-8 5E-7 1.79E-7 00E+0 5E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 9.47E+1 2.25E+0 3.12E-2 3.07E-3 9.24E+1 2.38E-2 00E+0 1.92E-1 00E+0 00E+0 00E+0 9.22E+1 00E+0 00E+0 0
Functional Unit
1 m³/h
Description
Assurer le transfert d’air de 3400m3/h en vue de la ventilation d’un bâtiment tertiaire pendant une durée de vie type de 17 ans
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 4.11E+3 5.11E+2 7.3E+0 1.16E+0 3.58E+3 5.47E+0 00E+0 4.37E+1 00E+0 00E+0 00E+0 3.54E+3 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 7.71E-3 4.84E-5 1.36E-6 1.34E-7 7.66E-3 8.92E-7 00E+0 4.61E-6 00E+0 00E+0 00E+0 7.66E-3 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 1.64E+1 3.59E+0 1.95E-2 2.14E-3 1.28E+1 1.5E-2 00E+0 2.4E-1 00E+0 00E+0 00E+0 1.25E+1 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 2.64E+0 1.6E+0 3.33E-3 3.93E-4 1.04E+0 3.37E-3 00E+0 5.7E-2 00E+0 00E+0 00E+0 9.8E-1 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 1.18E+0 3.45E-1 2.2E-3 2.83E-4 8.35E-1 1.98E-3 00E+0 2.89E-2 00E+0 00E+0 00E+0 8.06E-1 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 1.13E-1 1.11E-1 1.95E-8 4.33E-9 2.66E-3 1.03E-7 00E+0 2.47E-3 00E+0 00E+0 00E+0 1.88E-4 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 3.89E+4 5.62E+3 1.05E+2 1.03E+1 3.31E+4 6.34E+1 00E+0 5.81E+2 00E+0 00E+0 00E+0 3.25E+4 00E+0 00E+0 0
Water pollution m³ 7.4E+2 3.47E+2 2.14E+0 2.21E-1 3.89E+2 1.63E+0 00E+0 1.89E+1 00E+0 00E+0 00E+0 3.7E+2 00E+0 00E+0 0
Air pollution m³ 2.37E+5 1.4E+5 4.88E+2 4.43E+1 9.59E+4 3.16E+2 00E+0 1.11E+4 00E+0 00E+0 00E+0 8.47E+4 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.61E+4 1.19E+3 3.09E-1 3.26E-2 1.49E+4 5.1E+0 00E+0 4.02E+1 00E+0 00E+0 00E+0 1.48E+4 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.61E+4 1.19E+3 3.09E-1 3.26E-2 1.49E+4 5.1E+0 00E+0 4.02E+1 00E+0 00E+0 00E+0 1.48E+4 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 3.06E+5 6.45E+3 1.06E+2 1.04E+1 2.99E+5 7.57E+1 00E+0 6.14E+2 00E+0 00E+0 00E+0 2.99E+5 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.06E+5 6.45E+3 1.06E+2 1.04E+1 2.99E+5 7.57E+1 00E+0 6.14E+2 00E+0 00E+0 00E+0 2.99E+5 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 4.58E+1 5.08E+0 1.09E-2 1.83E-3 4.07E+1 3.19E-2 00E+0 4.88E-1 00E+0 00E+0 00E+0 4.02E+1 00E+0 00E+0 0
Hazardous waste disposed of kg 9.59E+1 7.95E+1 3.54E-3 1.74E-2 8.36E+0 8E+0 00E+0 7.82E+0 00E+0 00E+0 00E+0 5.48E-1 00E+0 00E+0 0
Non-hazardous waste disposed of kg 6.79E+2 6.37E+2 6.79E-2 7.44E-3 3.26E+1 9.14E+0 00E+0 3.26E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 2.21E-2 1.9E-2 7.65E-4 7.47E-5 1.7E-3 6.07E-4 00E+0 1.7E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 3.22E+5 7.64E+3 1.06E+2 1.04E+1 3.14E+5 8.08E+1 00E+0 6.54E+2 00E+0 00E+0 00E+0 3.14E+5 00E+0 00E+0 0
