ABBG-00229-V01.01

Download the PEP PDF
Name of the PEP
Piping materials - Conduit accessories
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Miscellenaeous
Geographical validity area
europe / FIN / SWE
Date of publication
2023/06/01
Date of end of validity
2028/06/01
Date of verification
2023/10/27
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years

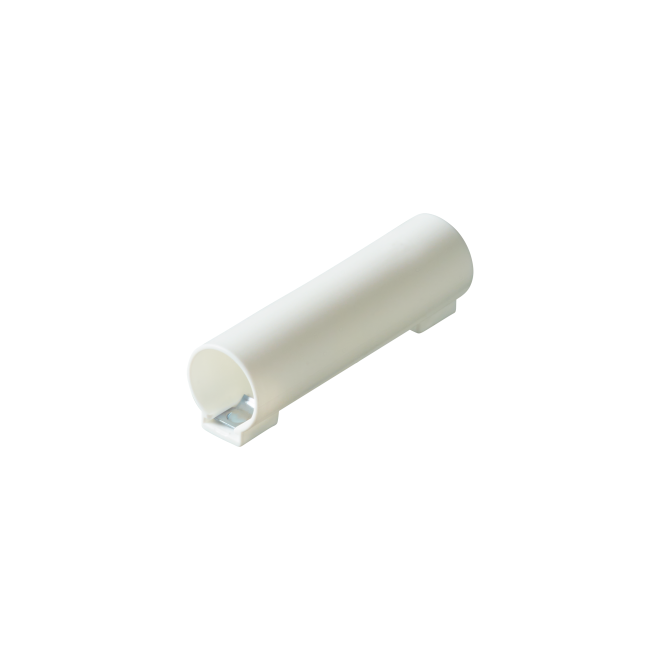

Reference Product
2TKA160011G1 - AJ20
Energy model used
Manufacturing: Finland national electric mix Installation: Based on sales mix (see geographical representativeness) Use: Non-applicable End of life: Based on sales mix (see geographical representativeness)
Total mass
0.009 kg
Constitution
Plastic
80.50 %
0.00800 kg
Metal
8.20 %
0.00100 kg
Other
11.30 %
0.00100 kg
Comments
The reference product and other products in this range are in conformity with the provisions of Low Voltage Directive 2014/35/EU, and national legislation. Plastic used for the reference product are halogen-free materials (IEC/61249-2-21) and they are also recyclable.
Covered products by list
- 2TKA00003840 - AJ16P5
- 2TKA00003841 - AJ20P5
- 2TKA00003842 - AJ25P5
- 2TKA00004191 - AJ5.20M
- 2TKA00004502 - AJ16.TP
- 2TKA00004505 - AJ25.TP
- 2TKA00004506 - AJ32.TP
- 2TKA00004504 - AJ20.TP
- 2TKA00004507 - AJ40.TP
- 2TKA001612G1 - AJ20.CH
- 2TKA001616G1 - AJ40.CH
- 2TKA001635G1 - AJS20
- 2TKA001634G1 - AJS16
- 2TKA160012G1 - AJ25
- 2TKA160017G1 - AJ5.20
- 2TKA160034G1 - AJ16.1
- 2TKA001614G1 - AJ25.CH
- 2TKA001637G1 - AJS32
- 2TKA160011G1 - AJ20
- 2TKA160014G1 - AJ40
- 2TKA160013G1 - AJ32
- 2TKA160016G1 - AJ5.16
- 2TKA001615G1 - AJ32.CH
- 2TKA001636G1 - AJS25
- 2TKA160009G1 - AJ16
- 2TKA001617G1 - AJ50.CH
- 2TKA160006G1 - AJP20
- 2TKA160015G1 - AJ50
- 2TKA160018G1 - AJ9.16
- 2TKA00004192 - AJ5.25
- 2TKA00004193 - AJ5.25M
- 2TKA00004194 - AJF5.20
Functional Unit
1 unit
Description
Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control, and protection devices in a single enclosure or a cabinet having the following dimensions (Ø 20 mm x 80 mm).
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
