ABBG-00094-V01.01

Download the PEP PDF
Name of the PEP

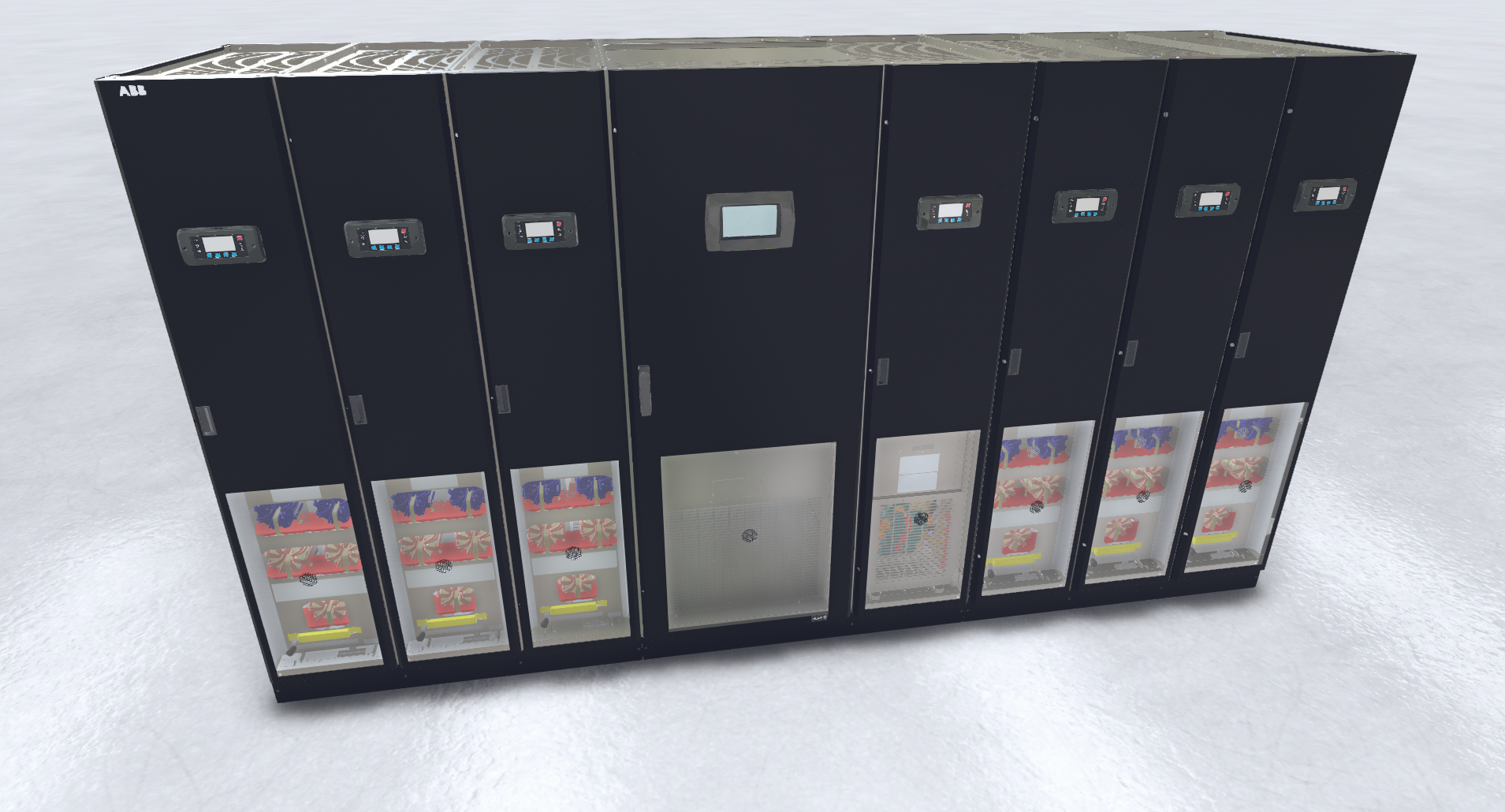

MEGAFLEX DPA CSB UPS
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Electric engineering, automation, process control engineering
  • Power supply
  • Uninterruptible Power Systems
  • UPS - VFI > 10kW (Online double conversion)
Date of publication
2023/01/10
Date of end of validity
2028/01/10
Date of verification
2023/05/04
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0010-ed1.1-2015 10 16
Use lifte time
15 years
Reference Product
MegaFlex DPA CSB UPS
Energy model used
Global
Total mass
4720.3 kg
Constitution
Plastic
7.70 %
363.44000 kg
Metal
79.30 %
3743.20000 kg
Other
13.00 %
613.66000 kg
Covered products by list
- MEGAFLEX DPA CSB 100-1500-2000kW IEC
Functional Unit
4720 kg
Description
To protect the load of 2000 kW against input power failure during 15 years and switch tothe energy storage system to avoid power outage.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 1.98E+6 6.07E+4 7.53E+2 4.38E+2 1.92E+6 1.99E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - fossil fuels kg.eq.CO2 1.96E+6 6.03E+4 7.52E+2 3.45E+2 1.9E+6 1.82E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - biogenics kg.eq.CO2 1.7E+4 3.01E+2 3.15E-1 9.19E+1 1.64E+4 1.64E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - land use and land use transformation kg.eq.CO2 2.81E+3 1.22E+2 4.22E-1 3.14E-1 2.69E+3 1.16E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 6.72E-2 9.76E-3 1.64E-4 1.91E-5 5.71E-2 1.51E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification (AP) mole.eq.H+ 9.68E+3 1.05E+3 1.5E+1 2.44E+0 8.61E+3 4.47E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Freshwater eutrophication kg.eq.P 1.75E+3 8.84E+1 3.5E-2 2.15E-1 1.66E+3 1.07E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Marine aquatic eutrophication kg.eq.N 1.92E+3 9.41E+1 3.86E+0 4.26E-1 1.82E+3 2E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Terrestrial eutrophication mole.eq.N 1.78E+4 1.09E+3 4.28E+1 3.88E+0 1.66E+4 1.57E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical ozone formation kg.eq.NMVOC 4.77E+3 3.43E+2 1.13E+1 1.46E+0 4.41E+3 4.6E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 2.71E+1 2.29E+1 1.35E-3 2.67E-2 4.12E+0 4.37E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 2.66E+7 7.24E+5 1.06E+4 1.06E+4 2.58E+7 1.08E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water requirement m³.eq.deprivation worldwide 2.44E+5 2.56E+4 2.8E+1 8.44E+1 2.18E+5 3.92E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 2.65E+7 7.13E+5 1.06E+4 3.86E+3 2.58E+7 1.08E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 2E+3 2E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 2.82E+6 9.46E+4 1.04E+2 3.56E+2 2.72E+6 3.14E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 2.65E+7 7.13E+5 1.06E+4 3.86E+3 2.58E+7 1.08E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 1.05E+4 1.05E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 2.65E+7 7.24E+5 1.06E+4 3.86E+3 2.58E+7 1.08E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 4.36E+1 4.36E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 9.98E+3 7.72E+2 9.48E-1 2.95E+0 9.19E+3 1.23E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 2.93E+7 8.18E+5 1.07E+4 4.21E+3 2.85E+7 1.11E+4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 2.25E+1 1.06E+1 1.79E-2 1.73E-2 1.18E+1 2.53E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 1.06E+5 1.41E+4 5.19E+2 2.69E+2 8.53E+4 5.33E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 7.87E+1 1.91E+0 7.28E-2 9.82E-3 7.66E+1 6.72E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 4.45E+3 6.55E+2 00E+0 1.15E+2 8.55E+1 3.59E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 3.16E+3 00E+0 00E+0 2.73E+2 1.15E+3 1.74E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Biogenic carbon content of the associated packaging kg of C 3.37E+1 00E+0 00E+0 3.37E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
