DAIK-00023-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

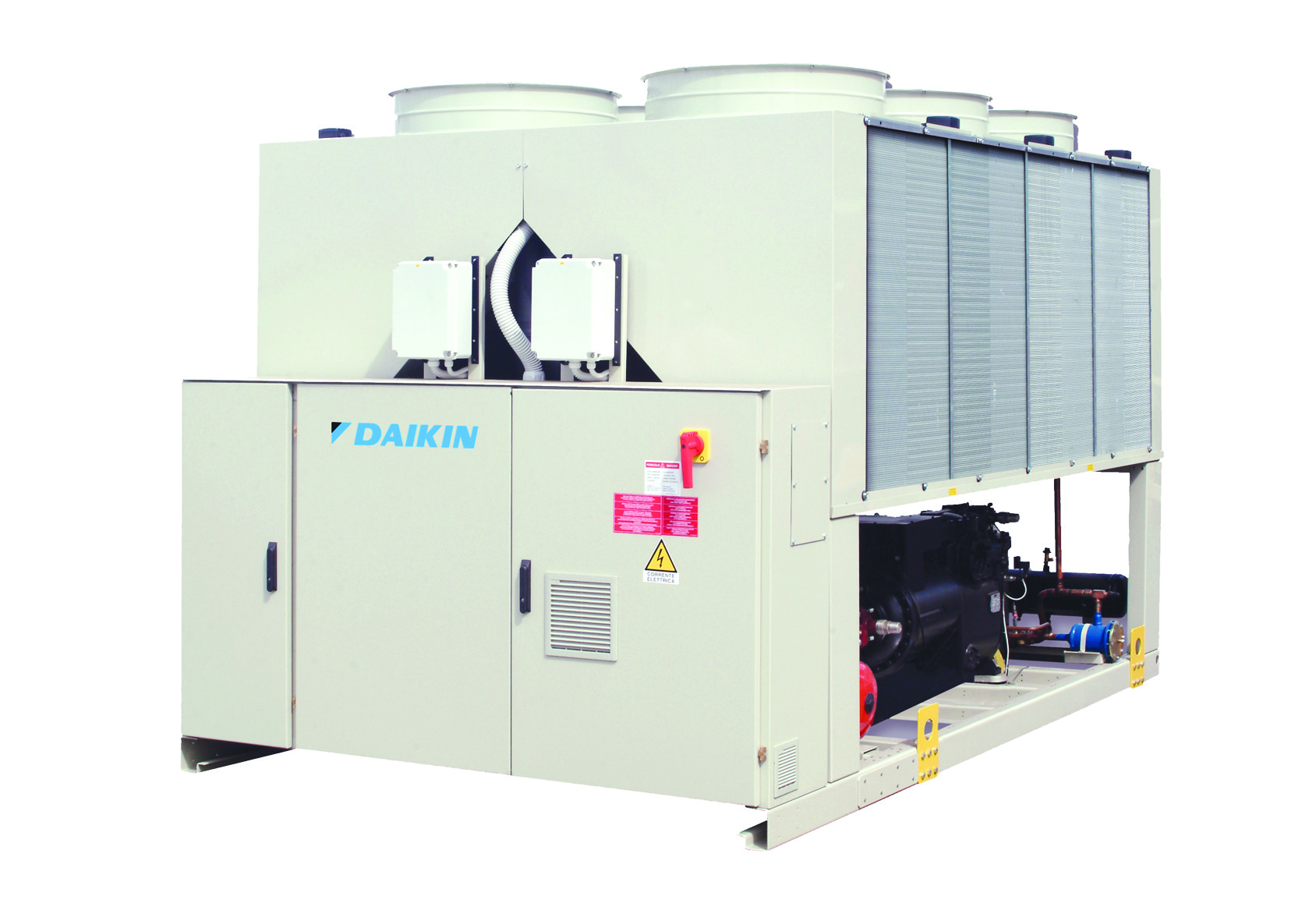

Air to Water Inverter Screw Heat Pump
Trademark / Owner
DAIKIN
DAIKIN EUROPE N.V.
Collective PEP
No
Product classification
  • Heating, ventilation and air conditioning equipement
  • Heating and/or air conditioning and/or hot water heating
  • Heat pumps
  • Air/Water
Date of publication
2022/12/01
Date of end of validity
2027/12/01
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0013-ed2-2019 12 06
Use lifte time
22 years
Reference Product
EWYD570BZSLB3
Energy model used
Italy (60%) & Spain (40%)
Total mass
6280 kg
Constitution
Plastic
1.10 %
68.20000 kg
Metal
88.80 %
5579.30800 kg
Other
10.10 %
632.49200 kg
Covered products by list
- EWYD570BZSSB3
- EWYD250BZSL
- EWYD250BZSS
- EWYD270BZSL
- EWYD360BZSL
- EWYD370BZSL
- EWYD400BZSL
- EWYD510BZSLB3
- EWYD530BZSLB3
- EWYD570BZSLB3
Covered products or brand by text
Daikin Air to Water Inverter Screw Heat Pump - Sizes 250 to 570
Functional Unit
1 kW
Description
To produce 1 kW of cooling and heating according to the reference usage scenario and during a reference service life of 22 years
Extrapolation Rules
The impact results presented below were obtained using the methods defined by PCR–ed4-EN-2021 09 06 and PSR-0013-ed2.0-EN-2019 12 06. This declaration was developed by considering the production of 1kW of heating and domestic hot water for use in Italy (60%) & Spain (40%)
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 6.43E+3 1.04E+2 3.26E+0 3.39E-1 6.29E+3 3.9E+1 1.52E+2 2.68E-2 00E+0 4.6E+0 00E+0 6.13E+3 00E+0 -0.65E+1
Ozone depletion kg.eq.CFC-11 8.12E-4 8.41E-6 7.74E-7 1.09E-7 8.02E-4 5.55E-7 00E+0 6.35E-9 00E+0 1.98E-6 00E+0 8E-4 00E+0 -1.51E-6
Acidification of soil and water kg.eq.SO2 3.61E+1 8.29E-1 6.7E-3 1.36E-3 3.52E+1 1.51E-2 00E+0 5.5E-5 00E+0 2.13E-2 00E+0 3.52E+1 00E+0 -0.35E+0
Acidification (AP) mole.eq.H+ 4.29E+1 9.58E-1 1.38E-2 1.64E-3 4.2E+1 2.21E-2 00E+0 1.13E-4 00E+0 2.5E-2 00E+0 4.19E+1 00E+0 -0.41E+0
Water eutrophication kg.eq.P04 3- 9.2E+0 3.9E-1 1.35E-3 5.8E-4 8.8E+0 1.01E-2 00E+0 1.11E-5 00E+0 6.2E-3 00E+0 8.79E+0 00E+0 -0.11E+0
Freshwater eutrophication kg.eq.P 2.56E-1 1.28E-2 2.68E-5 1.52E-5 2.43E-1 1.98E-4 00E+0 2.2E-7 00E+0 1.42E-4 00E+0 2.43E-1 00E+0 -0E+0
Marine aquatic eutrophication kg.eq.N 5.87E+0 1.24E-1 4.16E-3 3.19E-4 5.74E+0 4.92E-3 00E+0 3.42E-5 00E+0 3.5E-3 00E+0 5.73E+0 00E+0 -0.04E+0
Terrestrial eutrophication mole.eq.N 7.44E+1 1.38E+0 4.6E-2 3.23E-3 7.29E+1 5.61E-2 00E+0 3.78E-4 00E+0 3.97E-2 00E+0 7.29E+1 00E+0 -0.47E+0
Photochemical Ozone formation kg.eq.C2H4 1.46E+0 5.25E-2 4.24E-4 9.14E-5 1.4E+0 1.12E-3 00E+0 3.48E-6 00E+0 1.12E-3 00E+0 1.4E+0 00E+0 -0.02E+0
Photochemical ozone formation kg.eq.NMVOC 1.85E+1 4.34E-1 1.48E-2 1.06E-3 1.8E+1 1.66E-2 00E+0 1.21E-4 00E+0 6.89E-2 00E+0 1.79E+1 00E+0 -0.16E+0
Depletion of abiotic resources - elements kg.eq.Sb 7.4E-2 2.25E-2 5.62E-5 7.49E-6 5.02E-2 1.29E-3 00E+0 4.61E-7 00E+0 2.32E-4 00E+0 4.99E-2 00E+0 -0E+0
Depletion of abiotic resources - fossil fuels MJ 1.12E+5 1.24E+3 5.12E+1 6.26E+0 1.11E+5 6.44E+1 00E+0 4.2E-1 00E+0 1.61E+2 00E+0 1.11E+5 00E+0 -0.67E+2
Climate change - total kg.eq.CO2 6.57E+3 1.05E+2 3.29E+0 3.33E-1 6.42E+3 3.91E+1 1.52E+2 2.7E-2 00E+0 4.73E+0 00E+0 6.27E+3 00E+0 -0.83E+1
Climate change - fossil fuels kg.eq.CO2 6.57E+3 1.05E+2 3.29E+0 3.31E-1 6.42E+3 3.91E+1 1.52E+2 2.7E-2 00E+0 4.73E+0 00E+0 6.27E+3 00E+0 -0.83E+1
Climate change - land use and land use transformation kg.eq.CO2 2.07E+1 4.3E-1 9.9E-4 4.88E-4 2.02E+1 4.25E-3 00E+0 8.13E-6 00E+0 2.69E-3 00E+0 2.02E+1 00E+0 -0.08E+0
Water requirement m³.eq.deprivation worldwide 4.11E+3 3E+1 1.9E-1 2.24E-1 4.07E+3 1.75E+0 00E+0 1.56E-3 00E+0 1.11E+0 00E+0 4.07E+3 00E+0 -0.67E+0
Emission of fine particles incidence of diseases 1.39E-4 6.48E-6 2.98E-7 1.42E-8 1.31E-4 4.54E-7 00E+0 2.44E-9 00E+0 1.73E-7 00E+0 1.31E-4 00E+0 -3.26E-6
Ionizing radiation, human health kBq.eq.U235 7.15E+2 5.13E+0 2.24E-1 1.46E-2 7.09E+2 3.46E-1 00E+0 1.84E-3 00E+0 6.24E-1 00E+0 7.09E+2 00E+0 -0.46E+0
Ecotoxicity (fresh water) CTUe 1.01E+5 8.25E+3 3.91E+1 7.21E+0 9.26E+4 8.53E+1 00E+0 3.21E-1 00E+0 1.07E+2 00E+0 9.25E+4 00E+0 -0.43E+3
Human toxicity, carcinogenic effects CTUh 2.75E-6 3.09E-7 1E-9 3.57E-10 2.38E-6 5.61E-8 00E+0 8.21E-12 00E+0 4.48E-9 00E+0 2.38E-6 00E+0 -1.39E-7
Human toxicity, non-carcinogenic effects CTUh 8.17E-5 8.19E-6 4.64E-8 6.26E-9 7.15E-5 1.98E-6 00E+0 3.81E-10 00E+0 8.76E-8 00E+0 7.14E-5 00E+0 -4.37E-6
Impacts related to land use/soil quality - 5.38E+3 3.9E+2 7.73E+1 4.98E-1 4.88E+3 3.09E+1 00E+0 6.34E-1 00E+0 5.34E+0 00E+0 4.88E+3 00E+0 -0E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 3.23E+4 1.91E+2 6.44E-1 4.82E-1 3.21E+4 5.85E+0 00E+0 5.29E-3 00E+0 3.74E+0 00E+0 3.21E+4 00E+0 -0.41E+1
Use of renewable primary energy resources used as raw materials MJ 1.12E-1 00E+0 00E+0 1.12E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.23E+4 1.91E+2 6.44E-1 5.94E-1 3.21E+4 5.85E+0 00E+0 5.29E-3 00E+0 3.74E+0 00E+0 3.21E+4 00E+0 -0.41E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.12E+5 1.24E+3 5.12E+1 4.49E+0 1.11E+5 6.44E+1 00E+0 4.2E-1 00E+0 1.61E+2 00E+0 1.11E+5 00E+0 -0.65E+2
Use of non-renewable primary energy resources used as raw materials MJ 7.1E+0 5.33E+0 00E+0 1.77E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.99E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.12E+5 1.24E+3 5.12E+1 6.26E+0 1.11E+5 6.44E+1 00E+0 4.2E-1 00E+0 1.61E+2 00E+0 1.11E+5 00E+0 -0.67E+2
Use of secondary materials kg 9.31E+0 4E+0 00E+0 1.23E-2 1.06E-1 5.19E+0 00E+0 00E+0 00E+0 1.06E-1 00E+0 00E+0 00E+0 -0.41E+0
Net use of fresh water m³ 3.17E+1 4.66E+0 1.07E-2 2.23E-3 2.7E+1 2.91E-2 00E+0 8.75E-5 00E+0 2.35E-2 00E+0 2.69E+1 00E+0 -0.16E+0
Hazardous waste disposed of kg 4.79E+2 1.63E+1 4.97E-2 2.72E-2 4.63E+2 1.43E-1 00E+0 4.08E-4 00E+0 6.69E-1 00E+0 4.62E+2 00E+0 -0.15E+0
Non-hazardous waste disposed of kg 1.07E+4 5.04E+2 5.5E+0 6.6E-1 1.02E+4 3.78E+0 00E+0 4.52E-2 00E+0 6.2E+0 00E+0 1.02E+4 00E+0 -0.39E+2
Radioactive waste disposed of kg 5.17E-1 4.19E-3 3.51E-4 1.18E-5 5.12E-1 1.07E-4 00E+0 2.88E-6 00E+0 9.14E-4 00E+0 5.12E-1 00E+0 -0E+0
Materials for recycling kg 8.51E+0 00E+0 00E+0 1.21E-2 1.11E+0 7.39E+0 00E+0 00E+0 00E+0 1.11E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 6.34E-2 00E+0 00E+0 1.85E-2 00E+0 4.49E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 1.45E+5 1.43E+3 5.18E+1 6.85E+0 1.43E+5 7.03E+1 00E+0 4.25E-1 00E+0 1.65E+2 00E+0 1.43E+5 00E+0 -0.01E+2
Functional Unit
607 kW
Description
Ensure the production of cooling and heating using a 607-kW air to water inverter screw heat pump over a reference service life of 22 years
Extrapolation Rules
The reference product covered by the environmental declaration is the Daikin Air to Water Inverter Screw Heat Pump providing heating and cooling.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 3.91E+6 6.3E+4 1.98E+3 2.06E+2 3.82E+6 2.37E+4 9.25E+4 1.63E+1 00E+0 2.79E+3 00E+0 3.72E+6 00E+0 -2.22E+4
Ozone depletion kg.eq.CFC-11 4.93E-1 5.11E-3 4.7E-4 6.61E-5 4.87E-1 3.37E-4 00E+0 3.85E-6 00E+0 1.2E-3 00E+0 4.86E-1 00E+0 -0E+0
Acidification of soil and water kg.eq.SO2 2.19E+4 5.03E+2 4.06E+0 8.28E-1 2.14E+4 9.16E+0 00E+0 3.34E-2 00E+0 1.29E+1 00E+0 2.14E+4 00E+0 -2.12E+2
Acidification (AP) mole.eq.H+ 2.61E+4 5.81E+2 8.39E+0 9.95E-1 2.55E+4 1.34E+1 00E+0 6.89E-2 00E+0 1.52E+1 00E+0 2.55E+4 00E+0 -0.5E+2
Water eutrophication kg.eq.P04 3- 5.58E+3 2.36E+2 8.21E-1 3.52E-1 5.34E+3 6.13E+0 00E+0 6.74E-3 00E+0 3.76E+0 00E+0 5.34E+3 00E+0 -0.72E+1
Freshwater eutrophication kg.eq.P 1.56E+2 7.75E+0 1.63E-2 9.25E-3 1.48E+2 1.2E-1 00E+0 1.33E-4 00E+0 8.64E-2 00E+0 1.48E+2 00E+0 -0.08E+0
Marine aquatic eutrophication kg.eq.N 3.56E+3 7.51E+1 2.53E+0 1.94E-1 3.48E+3 2.99E+0 00E+0 2.08E-2 00E+0 2.13E+0 00E+0 3.48E+3 00E+0 -0.48E+1
Terrestrial eutrophication mole.eq.N 4.52E+4 8.39E+2 2.79E+1 1.96E+0 4.43E+4 3.41E+1 00E+0 2.29E-1 00E+0 2.41E+1 00E+0 4.42E+4 00E+0 -0.87E+2
Photochemical Ozone formation kg.eq.C2H4 8.85E+2 3.19E+1 2.58E-1 5.55E-2 8.52E+2 6.83E-1 00E+0 2.11E-3 00E+0 6.8E-1 00E+0 8.51E+2 00E+0 -0.33E+1
Photochemical ozone formation kg.eq.NMVOC 1.12E+4 2.64E+2 8.98E+0 6.43E-1 1.09E+4 1.01E+1 00E+0 7.37E-2 00E+0 4.18E+1 00E+0 1.09E+4 00E+0 -0.97E+1
Depletion of abiotic resources - elements kg.eq.Sb 4.49E+1 1.36E+1 3.41E-2 4.55E-3 3.05E+1 7.8E-1 00E+0 2.8E-4 00E+0 1.41E-1 00E+0 3.03E+1 00E+0 -0.35E+0
Depletion of abiotic resources - fossil fuels MJ 6.82E+7 7.53E+5 3.11E+4 3.8E+3 6.74E+7 3.91E+4 00E+0 2.55E+2 00E+0 9.78E+4 00E+0 6.73E+7 00E+0 -2.23E+5
Climate change - total kg.eq.CO2 3.99E+6 6.39E+4 2E+3 2.02E+2 3.9E+6 2.37E+4 9.25E+4 1.64E+1 00E+0 2.87E+3 00E+0 3.8E+6 00E+0 -2.32E+4
Climate change - fossil fuels kg.eq.CO2 3.99E+6 6.39E+4 2E+3 2.01E+2 3.9E+6 2.37E+4 9.25E+4 1.64E+1 00E+0 2.87E+3 00E+0 3.8E+6 00E+0 -2.32E+4
Climate change - land use and land use transformation kg.eq.CO2 1.26E+4 2.61E+2 6.01E-1 2.96E-1 1.23E+4 2.58E+0 00E+0 4.93E-3 00E+0 1.63E+0 00E+0 1.23E+4 00E+0 -0.67E+1
Water requirement m³.eq.deprivation worldwide 2.49E+6 1.82E+4 1.16E+2 1.36E+2 2.47E+6 1.06E+3 00E+0 9.49E-1 00E+0 6.76E+2 00E+0 2.47E+6 00E+0 -4.66E+3
Emission of fine particles incidence of diseases 8.42E-2 3.93E-3 1.81E-4 8.61E-6 7.98E-2 2.75E-4 00E+0 1.48E-6 00E+0 1.05E-4 00E+0 7.97E-2 00E+0 -0E+0
Ionizing radiation, human health kBq.eq.U235 4.34E+5 3.12E+3 1.36E+2 8.87E+0 4.3E+5 2.1E+2 00E+0 1.11E+0 00E+0 3.79E+2 00E+0 4.3E+5 00E+0 -0.81E+2
Ecotoxicity (fresh water) CTUe 6.13E+7 5.01E+6 2.38E+4 4.38E+3 5.62E+7 5.18E+4 00E+0 1.95E+2 00E+0 6.47E+4 00E+0 5.61E+7 00E+0 -1.48E+6
Human toxicity, carcinogenic effects CTUh 1.67E-3 1.88E-4 6.08E-7 2.17E-7 1.44E-3 3.41E-5 00E+0 4.99E-9 00E+0 2.72E-6 00E+0 1.44E-3 00E+0 -8.46E-5
Human toxicity, non-carcinogenic effects CTUh 4.96E-2 4.97E-3 2.81E-5 3.8E-6 4.34E-2 1.2E-3 00E+0 2.31E-7 00E+0 5.32E-5 00E+0 4.34E-2 00E+0 -0E+0
Impacts related to land use/soil quality - 3.27E+6 2.37E+5 4.69E+4 3.02E+2 2.96E+6 1.88E+4 00E+0 3.85E+2 00E+0 3.24E+3 00E+0 2.96E+6 00E+0 -4.25E+4
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.96E+7 1.16E+5 3.91E+2 2.93E+2 1.95E+7 3.55E+3 00E+0 3.21E+0 00E+0 2.27E+3 00E+0 1.95E+7 00E+0 -2.07E+4
Use of renewable primary energy resources used as raw materials MJ 6.8E+1 00E+0 00E+0 6.8E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.96E+7 1.16E+5 3.91E+2 3.6E+2 1.95E+7 3.55E+3 00E+0 3.21E+0 00E+0 2.27E+3 00E+0 1.95E+7 00E+0 -2.07E+4
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 6.82E+7 7.5E+5 3.11E+4 2.72E+3 6.74E+7 3.91E+4 00E+0 2.55E+2 00E+0 9.78E+4 00E+0 6.73E+7 00E+0 -2.22E+5
Use of non-renewable primary energy resources used as raw materials MJ 4.31E+3 3.23E+3 00E+0 1.08E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -1.21E+3
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.82E+7 7.53E+5 3.11E+4 3.8E+3 6.74E+7 3.91E+4 00E+0 2.55E+2 00E+0 9.78E+4 00E+0 6.73E+7 00E+0 -2.23E+5
Use of secondary materials kg 5.65E+3 2.43E+3 00E+0 7.44E+0 6.41E+1 3.15E+3 00E+0 00E+0 00E+0 6.41E+1 00E+0 00E+0 00E+0 -8.53E+2
Net use of fresh water m³ 1.92E+4 2.83E+3 6.47E+0 1.35E+0 1.64E+4 1.76E+1 00E+0 5.31E-2 00E+0 1.43E+1 00E+0 1.64E+4 00E+0 -0.03E+2
Hazardous waste disposed of kg 2.91E+5 9.9E+3 3.02E+1 1.65E+1 2.81E+5 8.67E+1 00E+0 2.48E-1 00E+0 4.06E+2 00E+0 2.81E+5 00E+0 -4.95E+3
Non-hazardous waste disposed of kg 6.49E+6 3.06E+5 3.34E+3 4E+2 6.18E+6 2.29E+3 00E+0 2.74E+1 00E+0 3.77E+3 00E+0 6.18E+6 00E+0 -8.46E+4
Radioactive waste disposed of kg 3.14E+2 2.54E+0 2.13E-1 7.18E-3 3.11E+2 6.49E-2 00E+0 1.75E-3 00E+0 5.55E-1 00E+0 3.11E+2 00E+0 -0.31E+0
Materials for recycling kg 5.17E+3 00E+0 00E+0 7.35E+0 6.74E+2 4.49E+3 00E+0 00E+0 00E+0 6.74E+2 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 3.85E+1 00E+0 00E+0 1.12E+1 00E+0 2.73E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 8.79E+7 8.69E+5 3.15E+4 4.16E+3 8.69E+7 4.27E+4 00E+0 2.58E+2 00E+0 1E+5 00E+0 8.68E+7 00E+0 -2.44E+5
