ABBG-00071-V01.01

Download the PEP PDF
Name of the PEP

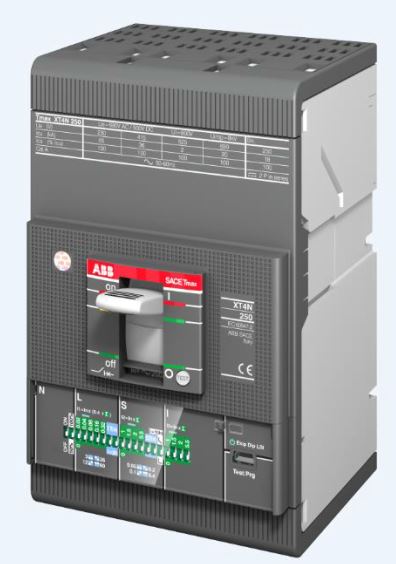

ABB MCCB Tmax XT XT4 Ekip 250A (IT)
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Electrical Switchgear and Controlgear Solutions for cabinet
  • Circuit breakers for overcurrent protection
  • Circuit breaker
Geographical validity area
world
Date of publication
2022/12/01
Date of end of validity
2027/12/01
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product
XT4 3p IEC N-S-H-L Ekip 250A
Energy model used
Global
Total mass
2.752 kg
Constitution
Plastic
42.51 %
1.17000 kg
Metal
49.89 %
1.37300 kg
Other
7.60 %
0.20900 kg
Comments
Check EPD file for more details
Covered products by list
- XT4 3p IEC N-S-H-L Ekip 250A
Covered products or brand by text
XT4 3/4p IEC N-S-H-L-V-X Ekip from 40A to 250A - XT4 3/4p UL N-S-H-L-V-X Ekip from 40A to 250A
Functional Unit
1 unit
Description
A single circuit breaker (including its packaging and acces-sories), to protect during 20 years of the installation against overloads and short-circuits in circuit with assigned voltage U and rated current In
Extrapolation Rules
This LCA covers different build configurations than representative product. All the analyzed configurations have the same main functionality, product standards and manufacturing technology. The LCA SimaPro model has been fully parametrized to fulfill each different configuration.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 3.75E+2 2.23E+1 6.53E+0 7.38E-2 3.45E+2 8.83E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 2.4E-5 2.49E-6 1.49E-6 3.14E-9 2E-5 7.04E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification (AP) mole.eq.H+ 1.84E+0 3.81E-1 3.48E-2 7.28E-5 1.42E+0 3.76E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Freshwater eutrophication kg.eq.P 2.33E-1 3.78E-2 9.87E-5 9.27E-7 1.95E-1 1.57E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Marine aquatic eutrophication kg.eq.N 3.08E-1 4.46E-2 1.25E-2 4.52E-5 2.48E-1 2.75E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Terrestrial eutrophication mole.eq.N 3.03E+0 5.24E-1 1.37E-1 2.74E-4 2.36E+0 8.95E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical ozone formation kg.eq.NMVOC 8.46E-1 1.43E-1 3.59E-2 8.6E-5 6.65E-1 2.6E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 2.06E-2 1.84E-2 2.29E-6 3.17E-8 2.21E-3 7.73E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 5.79E+3 3.16E+2 9.18E+1 2.07E-1 5.38E+3 7.96E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - total kg.eq.CO2 3.75E+2 2.23E+1 6.53E+0 7.38E-2 3.45E+2 8.83E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - fossil fuels kg.eq.CO2 3.69E+2 2.21E+1 6.52E+0 3.15E-2 3.4E+2 8.56E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - biogenics kg.eq.CO2 5.23E+0 2.07E-1 2.32E-3 4.23E-2 4.95E+0 2.68E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - land use and land use transformation kg.eq.CO2 4.85E-1 2.5E-2 4.87E-4 5.12E-6 4.59E-1 4.91E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water requirement m³.eq.deprivation worldwide 7.98E+1 1.29E+1 8.16E-2 1.32E-3 6.68E+1 6.68E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Emission of fine particles incidence of diseases 8.17E-6 1.76E-6 9.54E-8 1.59E-9 6.25E-6 6.46E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ionizing radiation, human health kBq.eq.U235 7.73E+1 2.4E+0 4.14E-1 1.05E-3 7.44E+1 5.06E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ecotoxicity (fresh water) CTUe 8.44E+3 4.26E+3 5.01E+1 2.31E-1 4.12E+3 1.35E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Human toxicity, carcinogenic effects CTUh 1.88E-7 8.56E-8 6.84E-10 6.23E-12 1.01E-7 7.43E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Human toxicity, non-carcinogenic effects CTUh 9.32E-6 6.16E-6 8.03E-8 2.75E-10 3.04E-6 4.51E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Impacts related to land use/soil quality - 1.1E+3 2.25E+2 1.6E+1 2.37E-1 8.47E+2 6.46E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 8.37E+2 3.53E+1 3.36E-1 2.89E-3 8E+2 5.67E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 2.9E+0 2.9E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 8.39E+2 3.82E+1 3.36E-1 2.89E-3 8E+2 5.67E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 5.76E+3 2.91E+2 9.18E+1 2.07E-1 5.37E+3 7.96E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 2.5E+1 2.5E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 5.78E+3 3.16E+2 9.18E+1 2.07E-1 5.37E+3 7.96E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 7.47E-1 7.47E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 3.52E+0 3.99E-1 3.07E-3 4.43E-5 3.12E+0 2.63E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 6.84E-3 2.67E-3 2.43E-4 5.1E-7 3.91E-3 1.07E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 2.37E+1 4.95E+0 4.53E-1 3.28E-2 1.69E+1 1.34E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 2.19E-2 9.91E-4 6.5E-4 1.38E-6 2.02E-2 3.68E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 2.09E+0 4.17E-1 00E+0 1.09E-1 00E+0 1.57E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 8.11E-2 00E+0 00E+0 1.77E-2 00E+0 6.35E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Biogenic carbon content of the product kg of C 9.84E-2 9.84E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Biogenic carbon content of the associated packaging kg of C 2.54E-2 2.54E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
