SCHN-00752-V01.01

Download the PEP PDF
Name of the PEP

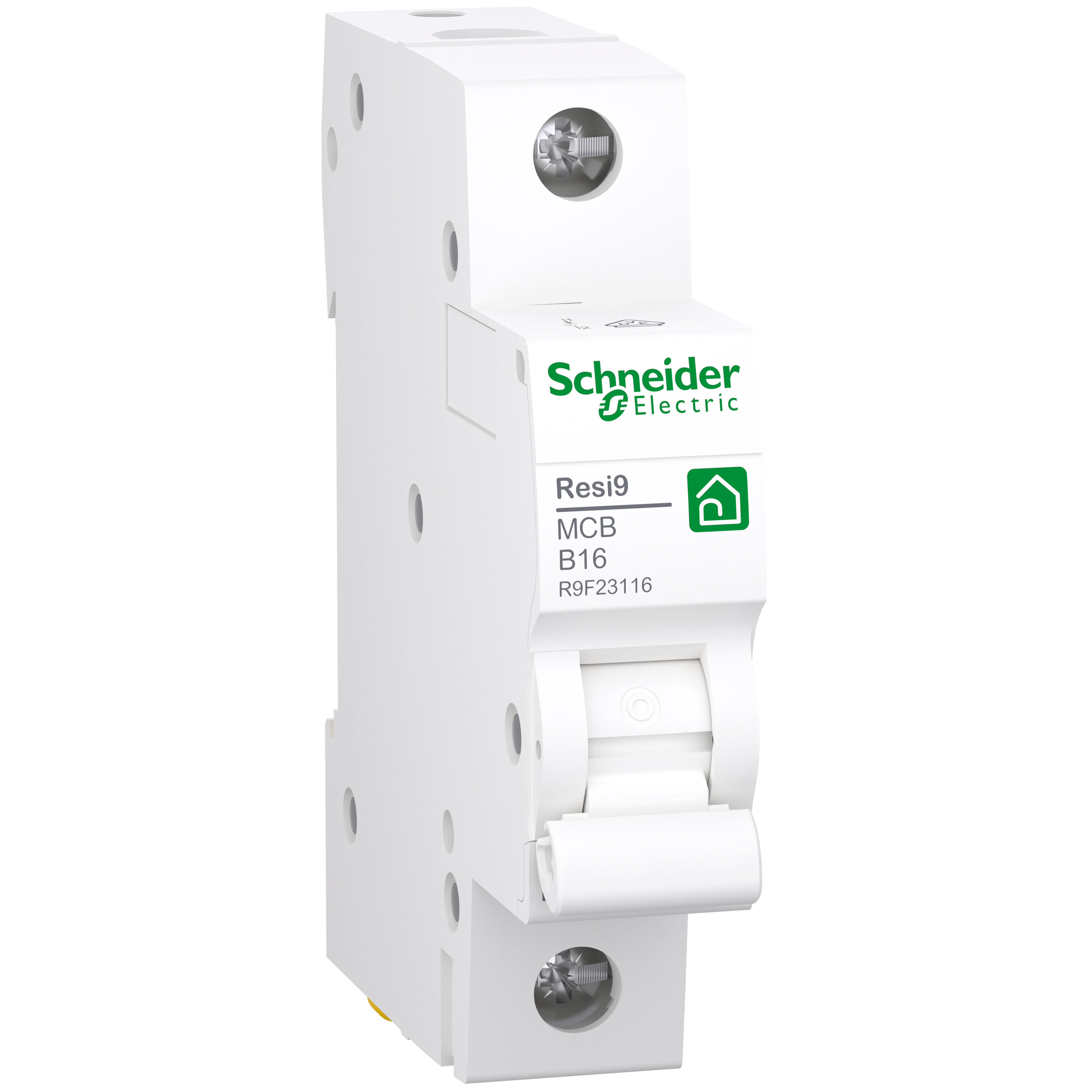

Resi9 - Disjoncteur Modulaire - 1P - 16A fabriqué avec du plastique recyclé
Trademark / Owner
SCHNEIDER ELECTRIC - ENERGY
SCHNEIDER ELECTRIC INDUSTRIES SAS
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Electrical Switchgear and Controlgear Solutions for cabinet
  • Circuit breakers for overcurrent protection
  • Circuit breaker
Date of publication
2022/07/01
Date of end of validity
2027/07/01
Date of verification
2022/07/26
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product
R9F23116
Energy model used
Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Total mass
110 g
Constitution
Plastic
41.80 %
0.00000 kg
Metal
54.70 %
0.00000 kg
Other
3.50 %
0.00000 kg
Covered products by list
- R9F04106B
- R9F04110B
- R9F04113B
- R9F04116B
- R9F04120B
- R9F04125B
- R9F14102B
- R9F14104B
- R9F14106C
- R9F14110C
- R9F14113B
- R9F14116C
- R9F14120C
- R9F14125C
- R9F14206B
- R9F14210C
- R9F14213B
- R9F14216C
- R9F14220C
- R9F14225C
- R9F14302B
- R9F14304B
- R9F14306B
- R9F14310C
- R9F14313B
- R9F14316C
- R9F14320C
- R9F14325C
- R9F23106
- R9F23110
- R9F23113
- R9F23116
- R9F23120
- R9F23125
- R9F23306
- R9F23310
- R9F23313
- R9F23316
- R9F23320
- R9F23325
- R9F24106
- R9F24110
- R9F24113
- R9F24116
- R9F24120
- R9F24125
- R9F24206
- R9F24210
- R9F24213
- R9F24216
- R9F24220
- R9F24225
- R9F24306
- R9F24310
- R9F24313
- R9F24316
- R9F24320
- R9F24325
- R9F24410
- R9F24413
- R9F24416
- R9F24420
- R9F24425
- R9F27106
- R9F27110
- R9F27113
- R9F27116
- R9F27120
- R9F27125
- R9F27306
- R9F27310
- R9F27313
- R9F27316
- R9F27320
- R9F27325
- R9F28106
- R9F28110
- R9F28113
- R9F28116
- R9F28120
- R9F28125
- R9F28306
- R9F28310
- R9F28313
- R9F28316
- R9F28320
- R9F28325
- R9F64106B
- R9F64110B
- R9F64116B
- R9F64120B
- R9F64125B
- R9F64202B
- R9F64204B
- R9F64206B
- R9F64210B
- R9F64216B
- R9F64220B
- R9F64225B
- R9F64306B
- R9F64310B
- R9F64316B
- R9F64320B
- R9F64325B
- R9F64406B
- R9F64410B
- R9F64416B
- R9F64420B
- R9F64425B
Covered products or brand by text
R9F04106B - R9F04110B - R9F04113B - R9F04116B - R9F04120B - R9F04125B - R9F14102B - R9F14104B - R9F14106C - R9F14110C - R9F14113B - R9F14116C - R9F14120C - R9F14125C - R9F14206B - R9F14210C - R9F14213B - R9F14216C - R9F14220C - R9F14225C - R9F14302B - R9F14304B - R9F14306B - R9F14310C - R9F14313B - R9F14316C - R9F14320C - R9F14325C - R9F23106 - R9F23110 - R9F23113 - R9F23116 - R9F23120 - R9F23125 - R9F23306 - R9F23310 - R9F23313 - R9F23316 - R9F23320 - R9F23325 - R9F24106 - R9F24110 - R9F24113 - R9F24116 - R9F24120 - R9F24125 - R9F24206 - R9F24210 - R9F24213 - R9F24216 - R9F24220 - R9F24225 - R9F24306 - R9F24310 - R9F24313 - R9F24316 - R9F24320 - R9F24325 - R9F24410 - R9F24413 - R9F24416 - R9F24420 - R9F24425 - R9F27106 - R9F27110 - R9F27113 - R9F27116 - R9F27120 - R9F27125 - R9F27306 - R9F27310 - R9F27313 - R9F27316 - R9F27320 - R9F27325 - R9F28106 - R9F28110 - R9F28113 - R9F28116 - R9F28120 - R9F28125 - R9F28306 - R9F28310 - R9F28313 - R9F28316 - R9F28320 - R9F28325 - R9F64106B - R9F64110B - R9F64116B - R9F64120B - R9F64125B - R9F64202B -R9F64204B - R9F64206B - R9F64210B - R9F64216B - R9F64220B -R9F64225B - R9F64306B - R9F64310B - R9F64316B - R9F64320B - R9F64325B - R9F64406B - R9F64410B - R9F64416B - R9F64420B - R9F64425B
Functional Unit
1 unit
Description
Protéger pendant 20 ans l'installation contre les surcharges et les courts-circuits dans un circuit de tension assignée 230VAC et de courant assigné 16A. Cette protection est assurée en respectant les paramètres suivants :- nombre de pôles : 1- pouvoir de coupure assigné Icn = 6000A- courbe de déclenchement : B
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 1.74E+1 5.86E-1 1.42E-2 1.82E-4 1.67E+1 1.62E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 1.18E-6 8.47E-8 2.88E-11 3.89E-13 1.09E-6 6.64E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 7.16E-2 1.71E-3 6.48E-5 7.59E-7 6.98E-2 2.92E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 5.28E-3 1.04E-3 1.49E-5 1.85E-7 4.22E-3 8.32E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 4.05E-3 2.02E-4 4.62E-6 5.67E-8 3.84E-3 3.03E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 1.26E-4 1.24E-4 5.68E-10 6.8E-12 1.45E-6 2.88E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 1.98E+2 7.59E+0 1.99E-1 2.36E-3 1.9E+2 1.13E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 7.35E+2 4.02E+1 2.33E+0 2.76E-2 6.91E+2 1.25E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 8.89E+2 1.67E+2 6.04E-1 7.27E-3 7.2E+2 1.02E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 4.27E+1 2.26E-1 2.67E-4 3.7E-6 4.25E+1 1.56E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 1.8E-2 1.8E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.28E+1 2.44E-1 2.67E-4 3.7E-6 4.25E+1 1.56E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 3.04E+2 1.18E+1 2E-1 2.38E-3 2.92E+2 1.41E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 2.62E-1 2.62E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.04E+2 1.21E+1 2E-1 2.38E-3 2.92E+2 1.41E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 4.74E-3 4.74E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 6.09E+1 2.38E-1 1.27E-6 1.99E-8 6.07E+1 1.35E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 6.55E+0 6.4E+0 00E+0 8.95E-9 8.73E-3 1.48E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 6.29E+1 4.78E-1 5.04E-4 2.47E-5 6.24E+1 4.33E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 4.2E-2 3.07E-4 3.59E-7 4.86E-9 4.17E-2 6.85E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 5.92E-2 1.11E-2 00E+0 3.35E-3 00E+0 4.47E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 2.3E-3 00E+0 00E+0 00E+0 00E+0 2.37E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 1.06E-5 1E-6 00E+0 9.64E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 3.47E+2 1.23E+1 2.01E-1 2.38E-3 3.34E+2 1.41E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
