ACOM-00077-V01.01

Download the PEP PDF
Name of the PEP

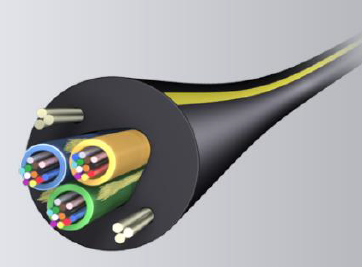

Gamme ACOPTIC UND1344 Câbles aérien ultra léger 4FO à 48FO
Trademark / Owner
ACOPTIC
ACOME
Collective PEP
No
Product classification
  • Wires and cables
  • Power and Data transfer inside
  • Copper and fiber optical communication cables
Date of publication
2020/07/23
Date of end of validity
2025/07/23
Date of verification
-
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0001-ed3-2015 10 16
Use lifte time
20 years
Reference Product
Câble aérien ultra léger 48FO (H0226)
Energy model used
Fabrication : France Utilisation : Irlande - Ecosse
Total mass
56.1 g
Constitution
Plastic
64.75 %
Metal
6.95 %
Other
28.30 %
Comments
Ce produit ne contient pas de substances interdites par la réglementation en vigueur lors de sa mise sur le marché en dehors des opérations de maintenance effectuées lors de la phase d’utilisation. Estimation de l’emploi de matériaux recyclés : 9,1% en masse.
Covered products or brand by text
Produits complémentaires de la Gamme ACOPTIC UND1344 : H0147, H0148, H0189, H0149, H0150, H0223, H0224, H0227, H0225.
Functional Unit
1 m
Description
Transmettre un signal de communication sur 1 mètre selon le protocole 10GBASE-LR, à 1310nm, pendant 20 années et à un taux d'utilisation de 100% en conformité avec les normes en vigueur.
Extrapolation Rules
Majoration par le produit de référence
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 3.18E-1 2.58E-1 9.91E-4 1.72E-2 4.54E-4 4.06E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 6.13E-8 5.82E-8 1.94E-12 1.51E-9 2.13E-12 1.6E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 5.79E-4 5.29E-4 9.38E-6 6.53E-6 1.41E-6 3.28E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 1.5E-4 1.05E-4 1.39E-6 1.55E-5 1.36E-7 2.75E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 7.29E-5 6.57E-5 5.41E-7 3.17E-6 7.79E-8 3.36E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 1.23E-6 1.22E-6 3.89E-11 6.15E-9 2.11E-12 9.92E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 1.9E+0 1.73E+0 1.36E-2 3.34E-2 5.56E-3 1.17E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 7.11E+1 2.44E+1 1.6E-1 2.05E+0 1.49E-2 4.45E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 1.84E+1 1.64E+1 6.05E-2 5.68E-1 2.01E-2 1.37E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 3.17E-1 3.11E-1 1.82E-5 3.87E-3 5.56E-4 1.29E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 1.72E-1 1.72E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.89E-1 4.84E-1 1.82E-5 3.87E-3 5.56E-4 1.29E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 4.43E+0 4.11E+0 1.37E-2 9.77E-2 6.47E-3 2E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 1.82E+0 1.77E+0 00E+0 5E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.25E+0 5.88E+0 1.37E-2 1.48E-1 6.47E-3 2E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 5.18E-3 5.08E-3 00E+0 9.85E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 8.06E-1 7.83E-1 8.62E-8 2.35E-2 1.49E-4 3.87E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 1.29E-1 8.64E-2 00E+0 1.4E-3 2.27E-7 4.13E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 1.41E-1 9.37E-2 3.42E-5 4.82E-3 8.3E-4 4.17E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 1.04E-3 1.01E-3 2.43E-8 2.73E-5 2.78E-7 2.27E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 9.77E-3 5.8E-5 00E+0 5.91E-3 00E+0 3.8E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 4.81E-3 00E+0 00E+0 4.81E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 6.74E+0 6.37E+0 1.37E-2 1.52E-1 7.02E-3 2.02E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Extrapolation Rules
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
