IGGA-00001-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

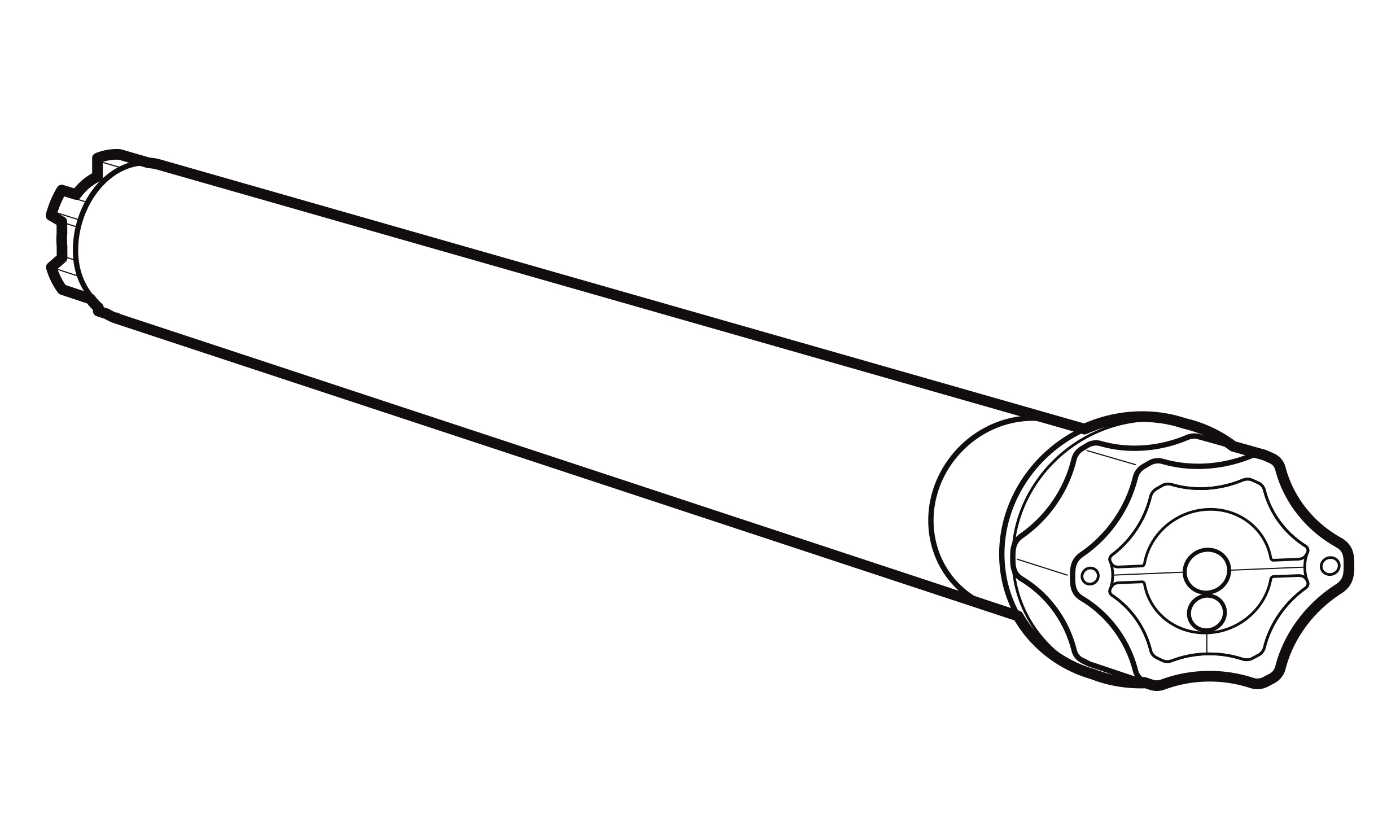

Moteur tubulaire de volets roulants et stores enroulables avec fin de course électronique, filaire ou radio
Trademark / Owner
IGNES / GROUPEMENT ACTIBAIE
IGNES/GROUPEMENT ACTIBAIE
Collective PEP
Yes
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Drives for de protections mobiles and gates/doors
  • Drives for solar shadings
  • Drives for roller shutters
Date of publication
2024/01/01
Date of end of validity
2029/01/01
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0006-ed2-2023 06 06
Use lifte time
15 years
Reference Product
Moteur tubulaire de volets roulants et stores enroulables avec fin de course électronique, filaire ou radio, pour 4 types de couples (6, 10, 15 et 20 Nm)
Energy model used
France 2018
Total mass
2.36 kg
Constitution
Plastic
22.23 %
0.51600 kg
Metal
65.68 %
1.55000 kg
Other
12.09 %
0.28500 kg
Covered products by list
- Moteur tubulaire de volets roulants et stores enroulables avec fin de course électronique, filaire ou radio, pour 4 types de couples (6, 10, 15 et 20 Nm)
Covered products or brand by text
CHERUBINI, DELTA DORE, DEPRAT, FAAC, FRANCIAFLEX / FRANCE FERMETURES, GEIGER, PROFALUX, SIMU, SOMFY
Functional Unit
1 unit
Description
Assurer la fermeture et l’ouverture en effectuant 14000 cycles de fonctionnement, avec un couple de 10 Nm, sur une course 2m et sur une durée de vie de 15 ans.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 2.89E+1 1.91E+1 4.36E-1 3.11E-1 6.11E+0 2.94E+0 0 0 0 0 0 6.11E+0 0 -4.33E+0
Climate change - fossil fuels kg.eq.CO2 2.83E+1 1.88E+1 4.36E-1 2.48E-1 6.09E+0 2.72E+0 0 0 0 0 0 6.09E+0 0 -4.19E+0
Climate change - biogenics kg.eq.CO2 6.01E-1 2.98E-1 0 6.24E-2 1.57E-2 2.25E-1 0 0 0 0 0 1.57E-2 0 -0.14E+0
Climate change - land use and land use transformation kg.eq.CO2 6.77E-5 6.77E-5 0 -1.07E-9 0 0 0 0 0 0 0 0 0 0
Ozone depletion kg.eq.CFC-11 2.41E-6 2.07E-6 6.68E-10 1.35E-8 8.99E-8 2.34E-7 0 0 0 0 0 8.99E-8 0 -2.06E-7
Acidification (AP) mole.eq.H+ 2.06E-1 1.44E-1 2.76E-3 9.64E-4 3.54E-2 2.29E-2 0 0 0 0 0 3.54E-2 0 -0.13E+0
Freshwater eutrophication kg.eq.P 4.94E-4 1.51E-4 1.63E-7 3.45E-6 2.9E-4 4.97E-5 0 0 0 0 0 2.9E-4 0 -0.01E+0
Marine aquatic eutrophication kg.eq.N 3.42E-2 1.53E-2 1.29E-3 3.24E-4 4.87E-3 1.24E-2 0 0 0 0 0 4.87E-3 0 -0.01E+0
Terrestrial eutrophication mole.eq.N 2.67E-1 1.55E-1 1.42E-2 2.35E-3 6.99E-2 2.55E-2 0 0 0 0 0 6.99E-2 0 -0.11E+0
Photochemical ozone formation kg.eq.NMVOC 7.84E-2 5.24E-2 3.58E-3 5.76E-4 1.44E-2 7.41E-3 0 0 0 0 0 1.44E-2 0 -0.03E+0
Depletion of abiotic resources - elements kg.eq.Sb 4.18E-3 4.17E-3 1.72E-8 2.21E-8 2.89E-6 5.29E-6 0 0 0 0 0 2.89E-6 0 -0E+0
Depletion of abiotic resources - fossil fuels MJ 1.68E+3 4.74E+2 6.08E+0 2.61E+0 1.17E+3 2.97E+1 0 0 0 0 0 1.17E+3 0 -4.49E+1
Water requirement m³.eq.deprivation worldwide 6.34E+2 9.78E+0 1.65E-3 1.02E-1 4.42E-1 6.24E+2 0 0 0 0 0 4.42E-1 0 -1.59E+3
Emission of fine particles incidence of diseases 1.39E+3 6.01E+2 2.93E-1 3.16E+0 4.31E+1 7.45E+2 0 0 0 0 0 4.31E+1 0 -1.01E+3
Ionizing radiation, human health kBq.eq.U235 3.11E+2 1.06E+2 1.06E-3 4.67E+1 1.58E+2 1.48E-1 0 0 0 0 0 1.58E+2 0 -0.87E+0
Ecotoxicity (fresh water) CTUe 6.33E-6 4.82E-6 2.24E-8 5.63E-9 1.37E-6 1.15E-7 0 0 0 0 0 1.37E-6 0 -4.54E-7
Human toxicity, carcinogenic effects CTUh 4.22E-6 4.19E-6 7.66E-12 2.39E-8 1.02E-9 3.05E-9 0 0 0 0 0 1.02E-9 0 -6.31E-8
Human toxicity, non-carcinogenic effects CTUh 1.92E-6 1.72E-6 8.29E-10 9.95E-10 4.41E-8 1.54E-7 0 0 0 0 0 4.41E-8 0 -1.42E-6
Impacts related to land use/soil quality - 5.43E+0 -0.86E+0 0 4.51E-3 1.95E-1 6.09E+0 0 0 0 0 0 1.95E-1 0 -2.36E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.22E+2 9.63E+0 8.11E-3 1.41E+0 1.08E+2 3.07E+0 0 0 0 0 0 1.08E+2 0 -4.46E+0
Use of renewable primary energy resources used as raw materials MJ 3.89E+0 3.89E+0 0 0 0 0 0 0 0 0 0 0 0 -3.54E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.26E+2 1.35E+1 8.11E-3 1.41E+0 1.08E+2 3.07E+0 0 0 0 0 0 1.08E+2 0 -8E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.67E+3 4.6E+2 6.08E+0 2.61E+0 1.17E+3 2.97E+1 0 0 0 0 0 1.17E+3 0 -4.46E+1
Use of non-renewable primary energy resources used as raw materials MJ 1.43E+1 1.43E+1 0 0 0 0 0 0 0 0 0 0 0 -0.23E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.68E+3 4.74E+2 6.08E+0 2.61E+0 1.17E+3 2.97E+1 0 0 0 0 0 1.17E+3 0 -4.49E+1
Use of secondary materials kg 8.09E-6 8.09E-6 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 1.76E+1 2.28E-1 3.85E-5 2.36E-3 1.03E-2 1.74E+1 0 0 0 0 0 1.03E-2 0 -3.82E+1
Total use of primary energy during the life cycle MJ 1.81E+3 4.88E+2 6.09E+0 4.02E+0 1.28E+3 3.27E+1 0 0 0 0 0 1.28E+3 0 -5.29E+1
Hazardous waste disposed of kg 2.36E+2 2.36E+2 0 5.29E-3 9.1E-2 2.68E-5 0 0 0 0 0 9.1E-2 0 -0.01E+0
Non-hazardous waste disposed of kg 9.1E+0 8.22E+0 1.53E-2 1E-1 5.87E-1 1.74E-1 0 0 0 0 0 5.87E-1 0 -0.16E+0
Radioactive waste disposed of kg 3.9E-3 3.63E-3 1.09E-5 1.17E-5 2.47E-4 1.13E-7 0 0 0 0 0 2.47E-4 0 -6.1E-5
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 6.6E-1 6.16E-1 0 4.37E-2 0 0 0 0 0 0 0 0 0 0
Materials for energy recovery kg 7.86E-9 7.86E-9 0 0 0 0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 3.78E-3 2.82E-3 0 9.62E-4 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 6.6E-2 6.6E-2 0 0 0 0 0 0 0 0 0 0 0 0
