LEDV-00011-V01.01

Download the PEP PDF Extrapolation Rules

General informations

Name of the PEP

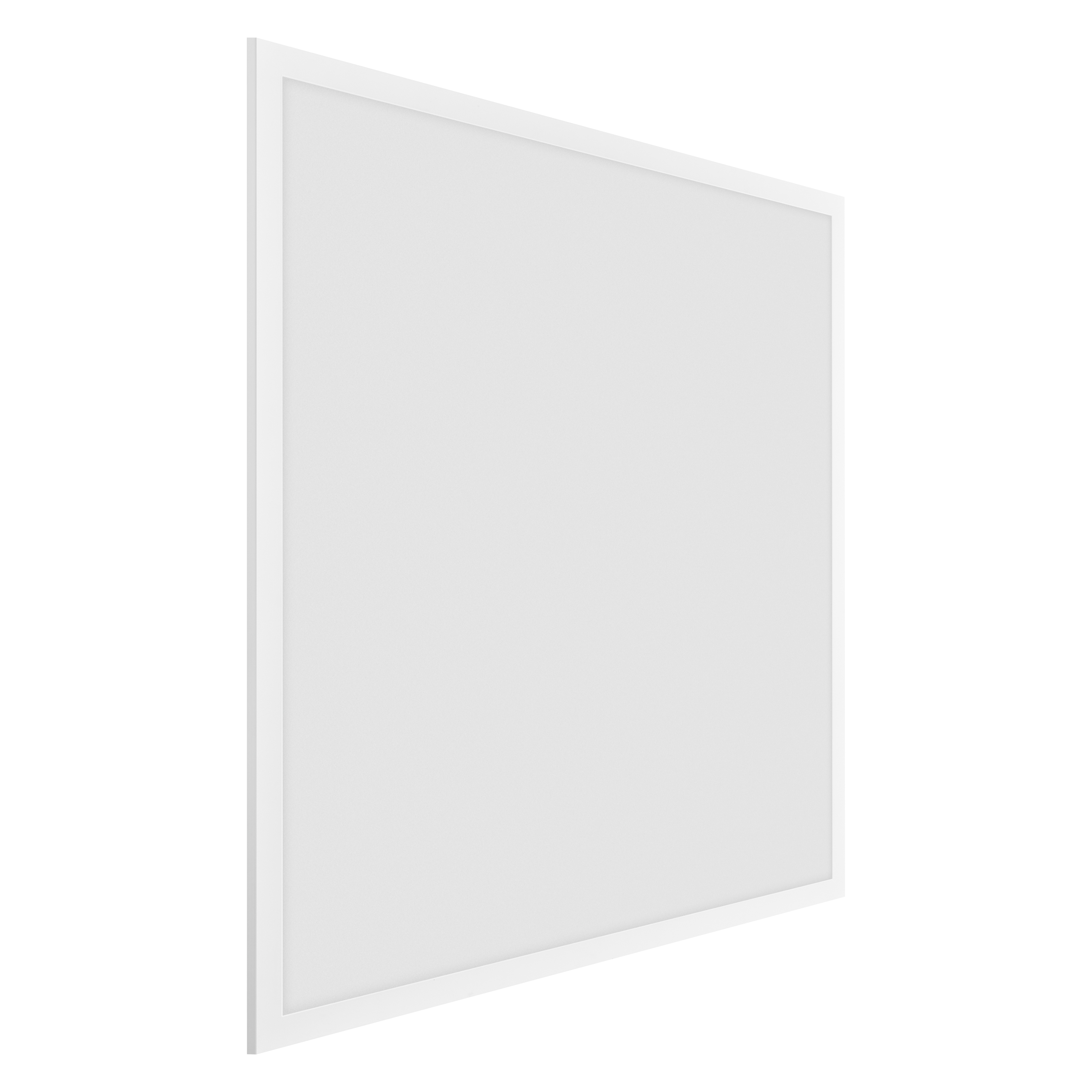

PANEL COMFORT BACKLIT (DALI)

Trademark / Owner

LEDVANCE

LEDVANCE GMBH

Collective PEP

Product classification

Lighting products
Indoor lighting products and control gear
Surface mounted
Linear pendant or ceiling mounted indoor lighting fixtures for industrial or tertiary lighting

Geographical validity area

european_union27

Date of publication

2024/02/01

Date of end of validity

2029/02/01

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0014-ed2-2023 07 13

Use lifte time

40 years

Reference Product

PL CMFT 625 P 28W 840 U19 DALIVR

Energy model used

EU-28

Bill of material

Total mass

2.435 kg

Constitution

Plastic

29.70 %

0.51400 kg

Metal

57.50 %

0.99500 kg

Other

12.80 %

0.22300 kg

Homogeneous environmental family

Covered products by list

- PL CMFT 600 P 28W 830 DALIVR
- PL CMFT 600 P 28W 830 PS
- PL CMFT 600 P 28W 830 U19 DALIVR
- PL CMFT 600 P 28W 830 U19 PS
- PL CMFT 600 P 28W 840 DALIVR
- PL CMFT 600 P 28W 840 PS
- PL CMFT 600 P 28W 840 U19 DALIVR
- PL CMFT 600 P 28W 840 U19 PS
- PL CMFT 600 P 33W 830 DALIVR
- PL CMFT 600 P 33W 830 PS
- PL CMFT 600 P 33W 830 U19 DALIVR
- PL CMFT 600 P 33W 830 U19 PS
- PL CMFT 600 P 33W 840 DALIVR
- PL CMFT 600 P 33W 840 PS
- PL CMFT 600 P 33W 840 U19 DALIVR
- PL CMFT 600 P 33W 840 U19 PS
- PL CMFT 600 P 33W 865 DALIVR
- PL CMFT 600 P 33W 865 PS
- PL CMFT 600 P 33W 865 U19 DALIVR
- PL CMFT 600 P 33W 865 U19 PS
- PL CMFT 625 P 28W 830 DALIVR
- PL CMFT 625 P 28W 830 PS
- PL CMFT 625 P 28W 830 U19 DALIVR
- PL CMFT 625 P 28W 830 U19 PS
- PL CMFT 625 P 28W 840 DALIVR
- PL CMFT 625 P 28W 840 PS
- PL CMFT 625 P 28W 840 U19 DALIVR
- PL CMFT 625 P 28W 840 U19 PS
- PL CMFT 625 P 33W 830 DALIVR
- PL CMFT 625 P 33W 830 PS
- PL CMFT 625 P 33W 830 U19 DALIVR
- PL CMFT 625 P 33W 830 U19 PS
- PL CMFT 625 P 33W 840 DALIVR
- PL CMFT 625 P 33W 840 PS
- PL CMFT 625 P 33W 840 U19 DALIVR
- PL CMFT 625 P 33W 840 U19 PS
- PL CMFT 625 P 33W 865 U19 DALIVR
- PL CMFT 625 P 33W 865 U19 PS
- PL CMFT 625 P 28W 840 U19 DALIVR

Covered products or brand by text

PL CMFT 600 P 28W 830 DALIVR PL CMFT 600 P 28W 830 PS PL CMFT 600 P 28W 830 U19 DALIVR PL CMFT 600 P 28W 830 U19 PS PL CMFT 600 P 28W 840 DALIVR PL CMFT 600 P 28W 840 PS PL CMFT 600 P 28W 840 U19 DALIVR PL CMFT 600 P 28W 840 U19 PS PL CMFT 600 P 33W 830 DALIVR PL CMFT 600 P 33W 830 PS PL CMFT 600 P 33W 830 U19 DALIVR PL CMFT 600 P 33W 830 U19 PS PL CMFT 600 P 33W 840 DALIVR PL CMFT 600 P 33W 840 PS PL CMFT 600 P 33W 840 U19 DALIVR PL CMFT 600 P 33W 840 U19 PS PL CMFT 600 P 33W 865 DALIVR PL CMFT 600 P 33W 865 PS PL CMFT 600 P 33W 865 U19 DALIVR PL CMFT 600 P 33W 865 U19 PS PL CMFT 625 P 28W 830 DALIVR PL CMFT 625 P 28W 830 PS PL CMFT 625 P 28W 830 U19 DALIVR PL CMFT 625 P 28W 830 U19 PS PL CMFT 625 P 28W 840 DALIVR PL CMFT 625 P 28W 840 PS PL CMFT 625 P 28W 840 U19 DALIVR PL CMFT 625 P 28W 840 U19 PS PL CMFT 625 P 33W 830 DALIVR PL CMFT 625 P 33W 830 PS PL CMFT 625 P 33W 830 U19 DALIVR PL CMFT 625 P 33W 830 U19 PS PL CMFT 625 P 33W 840 DALIVR PL CMFT 625 P 33W 840 PS PL CMFT 625 P 33W 840 U19 DALIVR PL CMFT 625 P 33W 840 U19 PS PL CMFT 625 P 33W 865 U19 DALIVR PL CMFT 625 P 33W 865 U19 PS

Functional unit impacts

Functional Unit

1 unit

Description

Provide lighting that delivers an outgoing artificial luminous flux of 1,000 lumens during a reference lifetime of 35,000 hours

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	4.55E+1	1.47E+0	8.04E-2	5.3E-2	4.37E+1	2.02E-1	4.37E+1	-0.39E+0
Climate change - fossil fuels	kg.eq.CO2	4.52E+1	1.58E+0	8.01E-2	3.1E-2	4.34E+1	2.01E-1	4.34E+1	-0.47E+0
Climate change - biogenics	kg.eq.CO2	2.94E-1	-0.11E+0	1.03E-4	2.18E-2	3.77E-1	1.36E-4	3.77E-1	8.06E-2
Climate change - land use and land use transformation	kg.eq.CO2	6.42E-3	1.25E-3	1.98E-4	9.61E-5	4.71E-3	1.6E-4	4.71E-3	-0E+0
Ozone depletion	kg.eq.CFC-11	8.1E-10	9.39E-12	6.81E-15	5.83E-14	8E-10	2.57E-13	8E-10	-1.55E-12
Acidification (AP)	mole.eq.H+	1.02E-1	7.95E-3	1.4E-3	5.54E-5	9.26E-2	1.19E-4	9.26E-2	-0E+0
Freshwater eutrophication	kg.eq.P	1.73E-4	1.01E-5	9.12E-8	9.01E-7	1.62E-4	1.24E-7	1.62E-4	-1.81E-6
Marine aquatic eutrophication	kg.eq.N	2.39E-2	1.18E-3	5E-4	2.55E-5	2.22E-2	4.45E-5	2.22E-2	-0E+0
Terrestrial eutrophication	mole.eq.N	2.5E-1	1.26E-2	5.49E-3	2.33E-4	2.32E-1	5.5E-4	2.32E-1	-0E+0
Photochemical ozone formation	kg.eq.NMVOC	6.42E-2	3.53E-3	1.37E-3	5.35E-5	5.91E-2	1.13E-4	5.91E-2	-0E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1.36E-4	1.3E-4	1.95E-9	1.31E-8	6.71E-6	2.95E-9	6.71E-6	-7.17E-5
Depletion of abiotic resources - fossil fuels	MJ	9.38E+2	2.31E+1	1.01E+0	4.21E-1	9.12E+2	5.59E-1	9.12E+2	-6.5E+0
Water requirement	m³.eq.deprivation worldwide	1E+1	3.25E-1	3.56E-4	1.98E-3	9.66E+0	2.85E-2	9.66E+0	-0.09E+0
Emission of fine particles	incidence of diseases	9.17E-7	1.04E-7	3.19E-8	4.67E-10	7.79E-7	1.15E-9	7.79E-7	-4.5E-8
Ionizing radiation, human health	kBq.eq.U235	2.43E+1	1.03E-1	2.03E-4	1.64E-3	2.41E+1	5.33E-3	2.41E+1	-0.04E+0
Ecotoxicity (fresh water)	CTUe	2.65E+2	1.05E+1	7.18E-1	5.93E-2	2.54E+2	2.66E-1	2.54E+2	-2.16E+0
Human toxicity, carcinogenic effects	CTUh	1.36E-7	1.23E-7	1.35E-11	6.09E-12	1.34E-8	1.3E-11	1.34E-8	-8.97E-8
Human toxicity, non-carcinogenic effects	CTUh	2.4E-7	2.5E-8	4.84E-10	3.08E-10	2.14E-7	7.15E-10	2.14E-7	-6.26E-9
Impacts related to land use/soil quality	-	3.72E+2	1.27E+1	1.24E-1	6E-1	3.58E+2	2.09E-1	3.58E+2	-3.77E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	5.53E+2	6.84E+0	2.43E-2	1.12E-1	5.45E+2	1.71E-1	5.45E+2	-2.64E+0
Use of renewable primary energy resources used as raw materials	MJ	1.19E+0	1.19E+0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	5.54E+2	8.03E+0	2.43E-2	1.12E-1	5.45E+2	1.71E-1	5.45E+2	-2.64E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	9.36E+2	2.13E+1	1.01E+0	4.22E-1	9.13E+2	5.6E-1	9.13E+2	-6.51E+0
Use of non-renewable primary energy resources used as raw materials	MJ	1.88E+0	1.88E+0	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	9.38E+2	2.31E+1	1.01E+0	4.22E-1	9.13E+2	5.6E-1	9.13E+2	-6.51E+0
Use of secondary materials	kg	2.05E-1	2.05E-1	0	0	0	0	0	4.31E-2
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Net use of fresh water	m³	4.54E-1	1.27E-2	2.73E-5	4.68E-4	4.4E-1	7.33E-4	4.4E-1	-0E+0
Total use of primary energy during the life cycle	MJ	1.49E+3	3.12E+1	1.04E+0	5.34E-1	1.46E+3	7.31E-1	1.46E+3	-9.16E+0
Hazardous waste disposed of	kg	6.56E-8	1.22E-7	3.18E-12	1.48E-8	-7.14E-8	-9.26E-12	-7.14E-8	-1.58E-8
Non-hazardous waste disposed of	kg	8.53E-1	1.33E-1	1.11E-4	6.4E-3	6.68E-1	4.51E-2	6.68E-1	-0.07E+0
Radioactive waste disposed of	kg	1.46E-1	7.93E-4	1.39E-6	9.92E-6	1.45E-1	3.38E-5	1.45E-1	-0E+0
Components for re-use	kg	0	0	0	0	0	0	0	0
Materials for recycling	kg	1.47E-1	9.44E-3	0	5.48E-2	0	8.27E-2	0	0
Materials for energy recovery	kg	6.88E-2	4.83E-3	0	6.41E-3	0	5.76E-2	0	0
Exported energy	MJ by energy vector	9.66E-1	5.37E-2	0	4.4E-2	0	8.69E-1	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	2.85E-2	0	0	2.85E-2	0	0	0	0

Declared product impacts

Functional Unit

1 unit

Description

A luminaire providing an outgoing luminous flux of 3,640 lumen during a reference lifetime of 40 years.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	4.74E+2	1.53E+1	8.37E-1	5.52E-1	4.56E+2	2.1E+0	4.56E+2	-4.07E+0
Climate change - fossil fuels	kg.eq.CO2	4.71E+2	1.64E+1	8.34E-1	3.23E-1	4.52E+2	2.1E+0	4.52E+2	-4.91E+0
Climate change - biogenics	kg.eq.CO2	3.06E+0	-1.09E+0	1.08E-3	2.28E-1	3.93E+0	1.42E-3	3.93E+0	8.39E-1
Climate change - land use and land use transformation	kg.eq.CO2	6.69E-2	1.3E-2	2.06E-3	1E-3	4.91E-2	1.67E-3	4.91E-2	-0E+0
Ozone depletion	kg.eq.CFC-11	8.43E-9	9.78E-11	7.09E-14	6.07E-13	8.33E-9	2.67E-12	8.33E-9	-1.61E-11
Acidification (AP)	mole.eq.H+	1.06E+0	8.28E-2	1.45E-2	5.77E-4	9.65E-1	1.24E-3	9.65E-1	-0.04E+0
Freshwater eutrophication	kg.eq.P	1.8E-3	1.05E-4	9.5E-7	9.38E-6	1.68E-3	1.29E-6	1.68E-3	-1.89E-5
Marine aquatic eutrophication	kg.eq.N	2.49E-1	1.23E-2	5.21E-3	2.66E-4	2.31E-1	4.63E-4	2.31E-1	-0E+0
Terrestrial eutrophication	mole.eq.N	2.61E+0	1.31E-1	5.71E-2	2.43E-3	2.41E+0	5.73E-3	2.41E+0	-0.04E+0
Photochemical ozone formation	kg.eq.NMVOC	6.69E-1	3.68E-2	1.43E-2	5.57E-4	6.16E-1	1.18E-3	6.16E-1	-0.01E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1.42E-3	1.35E-3	2.03E-8	1.36E-7	6.99E-5	3.08E-8	6.99E-5	-0E+0
Depletion of abiotic resources - fossil fuels	MJ	9.77E+3	2.41E+2	1.05E+1	4.39E+0	9.5E+3	5.83E+0	9.5E+3	-6.77E+1
Water requirement	m³.eq.deprivation worldwide	1.04E+2	3.39E+0	3.7E-3	2.06E-2	1.01E+2	2.97E-1	1.01E+2	-0.97E+0
Emission of fine particles	incidence of diseases	9.55E-6	1.08E-6	3.33E-7	4.87E-9	8.12E-6	1.2E-8	8.12E-6	-4.69E-7
Ionizing radiation, human health	kBq.eq.U235	2.53E+2	1.07E+0	2.11E-3	1.71E-2	2.51E+2	5.55E-2	2.51E+2	-0.46E+0
Ecotoxicity (fresh water)	CTUe	2.76E+3	1.09E+2	7.47E+0	6.18E-1	2.64E+3	2.77E+0	2.64E+3	-2.26E+1
Human toxicity, carcinogenic effects	CTUh	1.42E-6	1.28E-6	1.41E-10	6.35E-11	1.4E-7	1.35E-10	1.4E-7	-9.35E-7
Human toxicity, non-carcinogenic effects	CTUh	2.51E-6	2.6E-7	5.05E-9	3.2E-9	2.23E-6	7.45E-9	2.23E-6	-6.52E-8
Impacts related to land use/soil quality	-	3.87E+3	1.32E+2	1.29E+0	6.25E+0	3.73E+3	2.18E+0	3.73E+3	-3.92E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	5.76E+3	7.13E+1	2.53E-1	1.17E+0	5.68E+3	1.78E+0	5.68E+3	-2.75E+1
Use of renewable primary energy resources used as raw materials	MJ	1.24E+1	1.24E+1	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	5.77E+3	8.37E+1	2.53E-1	1.17E+0	5.68E+3	1.78E+0	5.68E+3	-2.75E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	9.75E+3	2.21E+2	1.06E+1	4.39E+0	9.51E+3	5.84E+0	9.51E+3	-6.78E+1
Use of non-renewable primary energy resources used as raw materials	MJ	1.96E+1	1.96E+1	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	9.77E+3	2.41E+2	1.06E+1	4.39E+0	9.51E+3	5.84E+0	9.51E+3	-6.78E+1
Use of secondary materials	kg	2.13E+0	2.13E+0	0	0	0	0	0	4.48E-1
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Net use of fresh water	m³	4.73E+0	1.32E-1	2.84E-4	4.88E-3	4.59E+0	7.63E-3	4.59E+0	-0.04E+0
Total use of primary energy during the life cycle	MJ	1.55E+4	3.25E+2	1.08E+1	5.56E+0	1.52E+4	7.62E+0	1.52E+4	-9.54E+1
Hazardous waste disposed of	kg	6.84E-7	1.27E-6	3.31E-11	1.54E-7	-7.44E-7	-9.65E-11	-7.44E-7	-1.64E-7
Non-hazardous waste disposed of	kg	8.89E+0	1.39E+0	1.15E-3	6.67E-2	6.96E+0	4.7E-1	6.96E+0	-0.7E+0
Radioactive waste disposed of	kg	1.52E+0	8.26E-3	1.45E-5	1.03E-4	1.51E+0	3.52E-4	1.51E+0	-0E+0
Components for re-use	kg	0	0	0	0	0	0	0	0
Materials for recycling	kg	1.53E+0	9.83E-2	0	5.71E-1	0	8.62E-1	0	0
Materials for energy recovery	kg	7.17E-1	5.03E-2	0	6.67E-2	0	6E-1	0	0
Exported energy	MJ by energy vector	1.01E+1	5.59E-1	0	4.59E-1	0	9.05E+0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	2.97E-1	0	0	2.97E-1	0	0	0	0

Files

PEP PDF

Extrapolation rules

LEDV-00011-V01.01 -EN

LEDV-00011-V01.01
