KPSE-00001-V01.01 -EN -FR

General informations

Name of the PEP

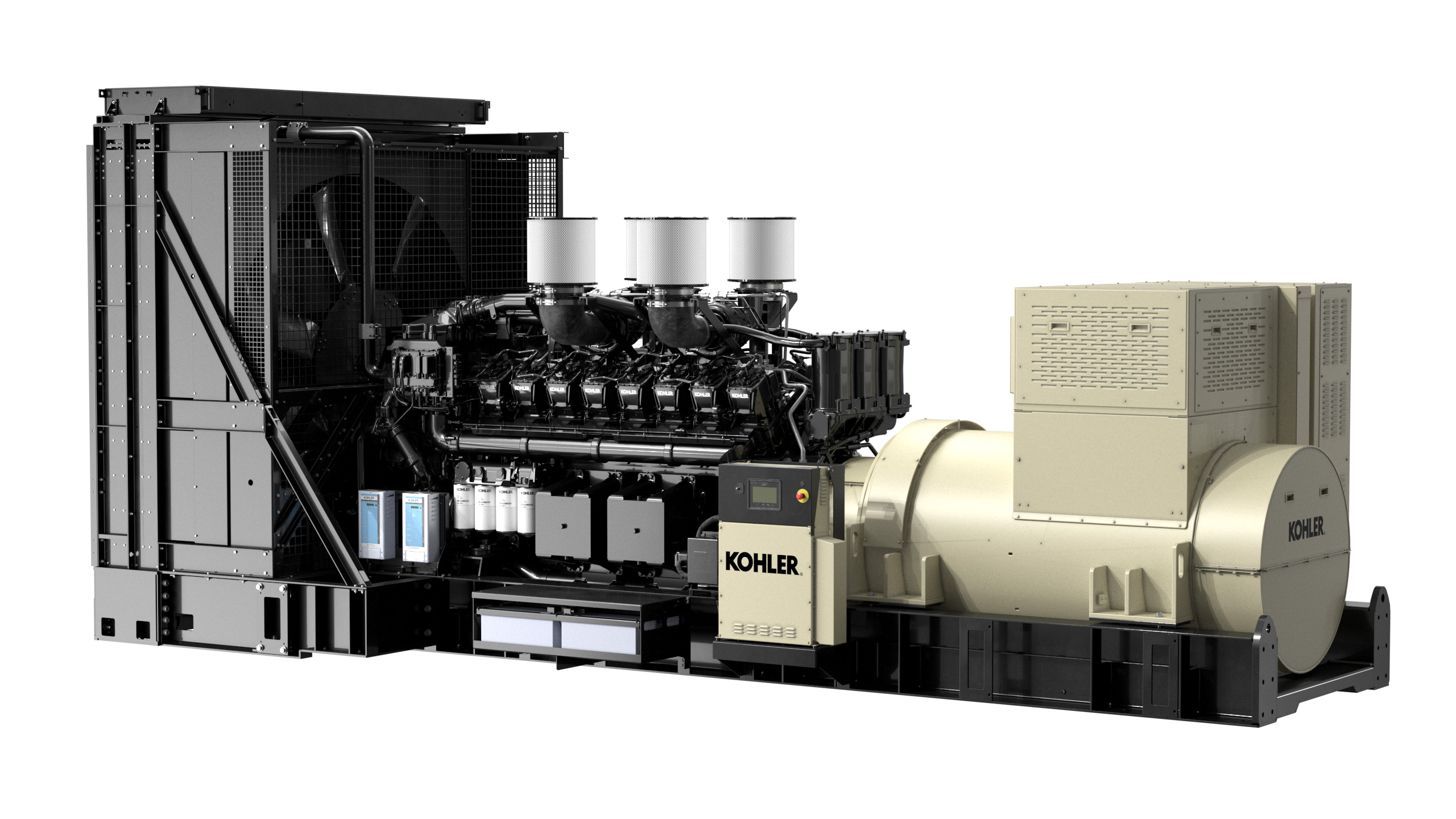

Mission-critical standby generator KD3750-F

Trademark / Owner

REHLKO

REHLKO

Collective PEP

No

Product classification

• Local electricty production
• Electricity generator

Date of publication

2024/05/01

Date of end of validity

2029/05/01

Date of verification

-

PCR

PEP-PCR-ed4-2021 09 06

PSR

No PSR

Use lifte time

40 years

Reference Product

Groupe électrogène de secours KD3750-F

Energy model used

Europe

Tags

Genset, Genset, KD3750, Fuel, HVO, Standby, Kohler, Power, generator, ICE, Prime, Diesel, Engine, ESP, PRP, DCP

Bill of material

Total mass

26273.5 kg

26270 kg

(Product)

3.5 kg

(Packaging)

0 kg

(Other)

Constitution

Plastic

0.00 %

0.00000 kg

Metal

94.20 %

24749.63700 kg

Other

5.80 %

1523.66000 kg

Homogeneous environmental family

Covered products by list

- KD2000-F
- KD2250-F
- KD2500-F
- KD2800-F
- KD3000-F
- KD3300-F
- KD3500-F
- KD4000-F
- KD4500-F
- KD3750-F

Covered products or brand by text

KD2000-F KD2250-F KD2500-F KD2800-F KD3000-F KD3300-F KD3500-F KD4000-F KD4500-F

Functional unit impacts

Functional Unit

3750 kWh

Description

Provide 1kVA of back-up power in the event of grid disconnection, for 200h/year over a reference lifetime of 40 years in accordance with ISO 8528.

Extrapolation Rules

Extrapolation rules detailed in PEP

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	3.02E-1	3.59E-3	1.69E-4	7.12E-7	2.98E-1	3.68E-4	0	2.14E-3	0	0	0	2.96E-1	0	-0E+0
Climate change - fossil fuels	kg.eq.CO2	3.07E-1	3.52E-3	1.72E-4	7.12E-7	3.03E-1	3.66E-4	0	2.14E-3	0	0	0	3.01E-1	0	-0E+0
Climate change - biogenics	kg.eq.CO2	6.7E-5	5.74E-5	5.54E-8	9.89E-11	7.84E-6	1.65E-6	0	1.69E-6	0	0	0	6.15E-6	0	-1.44E-6
Climate change - land use and land use transformation	kg.eq.CO2	-0E+0	4.6E-6	8.55E-8	8.16E-11	-0E+0	3.82E-7	0	-6.52E-7	0	0	0	-0E+0	0	-2.16E-6
Ozone depletion	kg.eq.CFC-11	3.62E-10	9.43E-11	3.74E-12	1.13E-14	2.34E-10	3.02E-11	0	1.9E-10	0	0	0	4.4E-11	0	-2.72E-11
Acidification (AP)	mole.eq.H+	5.54E-3	4.38E-5	3.75E-7	6.6E-9	5.49E-3	3.06E-6	2.49E-3	8.21E-6	0	0	0	2.98E-3	0	-7.85E-6
Freshwater eutrophication	kg.eq.P	6.83E-5	2.69E-7	1.4E-9	2.57E-12	6.8E-5	2.13E-8	0	5.89E-8	0	0	0	6.8E-5	0	-1.59E-7
Marine aquatic eutrophication	kg.eq.N	5.32E-3	4.04E-6	9.24E-8	3.05E-9	5.32E-3	3.57E-7	2.45E-3	2.04E-6	0	0	0	2.87E-3	0	-1.78E-6
Terrestrial eutrophication	mole.eq.N	2.96E-2	5.05E-5	9.62E-7	3.32E-8	2.95E-2	4.29E-6	1.75E-2	2.03E-5	0	0	0	1.2E-2	0	-2.34E-5
Photochemical ozone formation	kg.eq.NMVOC	7.4E-3	2.06E-5	5.83E-7	9.84E-9	7.38E-3	1.33E-6	6.3E-3	9.94E-6	0	0	0	1.07E-3	0	-8.15E-6
Depletion of abiotic resources - elements	kg.eq.Sb	4.84E-7	4.35E-7	5.76E-10	2.59E-13	2.26E-8	2.53E-8	0	1.36E-8	0	0	0	8.97E-9	0	-4.19E-8
Depletion of abiotic resources - fossil fuels	MJ	1.66E+0	4.34E-2	2.44E-3	9.32E-6	1.6E+0	5.04E-3	0	3.06E-2	0	0	0	1.57E+0	0	-0.01E+0
Water requirement	m³.eq.deprivation worldwide	1.87E-3	8.71E-4	1.01E-5	2.01E-8	8.26E-4	1.61E-4	0	4.76E-4	0	0	0	3.5E-4	0	-0E+0
Emission of fine particles	incidence of diseases	5.27E-8	3.02E-10	1.28E-11	1.84E-13	5.24E-8	4.09E-11	1.18E-8	1E-10	0	0	0	4.05E-8	0	-1.18E-10
Ionizing radiation, human health	kBq.eq.U235	1.77E-3	7.99E-5	1.24E-6	1.91E-9	1.66E-3	2.56E-5	0	3.7E-5	0	0	0	1.62E-3	0	-2.53E-5
Ecotoxicity (fresh water)	CTUe	7.14E-1	5.61E-2	1.21E-3	4.45E-6	6.52E-1	4.5E-3	7.2E-7	4E-2	0	0	0	6.13E-1	0	-0.03E+0
Human toxicity, carcinogenic effects	CTUh	3.04E-11	2.25E-11	7.83E-14	2.18E-16	2.96E-12	4.89E-12	0	2.29E-12	0	0	0	6.73E-13	0	-9.84E-12
Human toxicity, non-carcinogenic effects	CTUh	1.04E-9	5.21E-10	1.73E-12	1.52E-15	3.34E-10	1.79E-10	4.64E-13	2.91E-11	0	0	0	3.04E-10	0	-6.2E-11
Impacts related to land use/soil quality	-	3.53E-2	2.22E-2	1.47E-3	6.28E-7	9.35E-3	2.36E-3	0	4.47E-3	0	0	0	4.88E-3	0	-0.01E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	1.74E-2	4.42E-3	3.83E-5	5.3E-8	1.24E-2	5.61E-4	0	1.07E-3	0	0	0	1.14E-2	0	-0E+0
Use of renewable primary energy resources used as raw materials	MJ	-0E+0	-0E+0	0	0	0	-3.58E-6	0	0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.72E-2	4.2E-3	3.83E-5	5.3E-8	1.24E-2	5.57E-4	0	1.07E-3	0	0	0	1.14E-2	0	-0E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.66E+0	4.33E-2	2.44E-3	9.32E-6	1.6E+0	5.04E-3	0	3.06E-2	0	0	0	1.57E+0	0	-0.01E+0
Use of non-renewable primary energy resources used as raw materials	MJ	4.77E-5	5.26E-5	0	0	3.85E-6	-8.73E-6	0	3.85E-6	0	0	0	0	0	-1.94E-6
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.66E+0	4.34E-2	2.44E-3	9.32E-6	1.6E+0	5.04E-3	0	3.06E-2	0	0	0	1.57E+0	0	-0.01E+0
Use of secondary materials	kg	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	9.26E-5	2.89E-5	3.5E-7	7.29E-10	5.8E-5	5.33E-6	0	1.4E-5	0	0	0	4.4E-5	0	-9.77E-6
Total use of primary energy during the life cycle	MJ	1.67E+0	4.75E-2	2.48E-3	9.37E-6	1.62E+0	5.59E-3	0	3.17E-2	0	0	0	1.58E+0	0	-0.02E+0
Hazardous waste disposed of	kg	1.03E-3	8.13E-4	2.35E-6	7.83E-9	1.33E-4	7.76E-5	0	7.84E-5	0	0	0	5.49E-5	0	-0E+0
Non-hazardous waste disposed of	kg	1.52E-2	1.31E-2	1.41E-4	4.19E-8	1.24E-3	8.01E-4	0	6.89E-4	0	0	0	5.53E-4	0	-0E+0
Radioactive waste disposed of	kg	2.24E-6	6.35E-8	8.02E-10	1.02E-12	2.15E-6	2.26E-8	0	2.76E-8	0	0	0	2.12E-6	0	-1.87E-8
Components for re-use	kg	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	6.93E-4	1.31E-5	0	0	1.45E-4	5.35E-4	0	1.45E-4	0	0	0	0	0	0
Materials for energy recovery	kg	7.56E-7	0	0	0	8.33E-8	6.73E-7	0	8.33E-8	0	0	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	0	0	0	0	0	0	0	0	0	0	0	0	0	0

Declared product impacts

Description

Groupe électrogène de secours

Extrapolation Rules

Available in the PEP file

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	9.07E+6	1.08E+5	5.08E+3	2.14E+1	8.95E+6	1.11E+4	0	6.43E+4	0	0	0	8.88E+6	0	-3.98E+4
Climate change - fossil fuels	kg.eq.CO2	9.2E+6	1.06E+5	5.15E+3	2.14E+1	9.08E+6	1.1E+4	0	6.42E+4	0	0	0	9.02E+6	0	-3.97E+4
Climate change - biogenics	kg.eq.CO2	2.01E+3	1.72E+3	1.66E+0	2.97E-3	2.35E+2	4.95E+1	0	5.07E+1	0	0	0	1.84E+2	0	-4.32E+1
Climate change - land use and land use transformation	kg.eq.CO2	-1.35E+5	1.38E+2	2.56E+0	2.45E-3	-1.35E+5	1.15E+1	0	-1.96E+1	0	0	0	-1.35E+5	0	-6.47E+1
Ozone depletion	kg.eq.CFC-11	1.09E-2	2.83E-3	1.12E-4	3.4E-7	7.01E-3	9.05E-4	0	5.69E-3	0	0	0	1.32E-3	0	-0E+0
Acidification (AP)	mole.eq.H+	1.66E+5	1.31E+3	1.13E+1	1.98E-1	1.65E+5	9.18E+1	7.48E+4	2.46E+2	0	0	0	8.95E+4	0	-2.36E+2
Freshwater eutrophication	kg.eq.P	2.05E+3	8.06E+0	4.19E-2	7.71E-5	2.04E+3	6.4E-1	0	1.77E+0	0	0	0	2.04E+3	0	-4.76E+0
Marine aquatic eutrophication	kg.eq.N	1.6E+5	1.21E+2	2.77E+0	9.16E-2	1.6E+5	1.07E+1	7.35E+4	6.13E+1	0	0	0	8.6E+4	0	-5.35E+1
Terrestrial eutrophication	mole.eq.N	8.87E+5	1.51E+3	2.89E+1	9.97E-1	8.85E+5	1.29E+2	5.25E+5	6.1E+2	0	0	0	3.59E+5	0	-7.02E+2
Photochemical ozone formation	kg.eq.NMVOC	2.22E+5	6.19E+2	1.75E+1	2.95E-1	2.21E+5	4E+1	1.89E+5	2.98E+2	0	0	0	3.21E+4	0	-2.45E+2
Depletion of abiotic resources - elements	kg.eq.Sb	1.45E+1	1.31E+1	1.73E-2	7.77E-6	6.78E-1	7.6E-1	0	4.09E-1	0	0	0	2.69E-1	0	-1.26E+0
Depletion of abiotic resources - fossil fuels	MJ	4.97E+7	1.3E+6	7.32E+4	2.8E+2	4.81E+7	1.51E+5	0	9.18E+5	0	0	0	4.72E+7	0	-4.42E+5
Water requirement	m³.eq.deprivation worldwide	5.6E+4	2.61E+4	3.02E+2	6.03E-1	2.48E+4	4.82E+3	0	1.43E+4	0	0	0	1.05E+4	0	-6.37E+3
Emission of fine particles	incidence of diseases	1.58E+0	9.05E-3	3.83E-4	5.53E-6	1.57E+0	1.23E-3	3.53E-1	3.01E-3	0	0	0	1.21E+0	0	-0E+0
Ionizing radiation, human health	kBq.eq.U235	5.3E+4	2.4E+3	3.71E+1	5.72E-2	4.98E+4	7.69E+2	0	1.11E+3	0	0	0	4.87E+4	0	-7.59E+2
Ecotoxicity (fresh water)	CTUe	2.14E+7	1.68E+6	3.62E+4	1.34E+2	1.96E+7	1.35E+5	2.16E+1	1.2E+6	0	0	0	1.84E+7	0	-8.31E+5
Human toxicity, carcinogenic effects	CTUh	9.12E-4	6.74E-4	2.35E-6	6.54E-9	8.89E-5	1.47E-4	0	6.87E-5	0	0	0	2.02E-5	0	-0E+0
Human toxicity, non-carcinogenic effects	CTUh	3.11E-2	1.56E-2	5.19E-5	4.55E-8	1E-2	5.36E-3	1.39E-5	8.72E-4	0	0	0	9.13E-3	0	-0E+0
Impacts related to land use/soil quality	-	1.06E+6	6.65E+5	4.42E+4	1.88E+1	2.81E+5	7.08E+4	0	1.34E+5	0	0	0	1.46E+5	0	-1.64E+5
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	5.23E+5	1.33E+5	1.15E+3	1.59E+0	3.73E+5	1.68E+4	0	3.21E+4	0	0	0	3.41E+5	0	-5.6E+4
Use of renewable primary energy resources used as raw materials	MJ	-6.63E+3	-6.53E+3	0	0	0	-1.07E+2	0	0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	5.17E+5	1.26E+5	1.15E+3	1.59E+0	3.73E+5	1.67E+4	0	3.21E+4	0	0	0	3.41E+5	0	-5.6E+4
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	4.97E+7	1.3E+6	7.32E+4	2.8E+2	4.81E+7	1.51E+5	0	9.18E+5	0	0	0	4.72E+7	0	-4.42E+5
Use of non-renewable primary energy resources used as raw materials	MJ	1.43E+3	1.58E+3	0	0	1.15E+2	-2.62E+2	0	1.15E+2	0	0	0	0	0	-5.82E+1
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	4.97E+7	1.3E+6	7.32E+4	2.8E+2	4.81E+7	1.51E+5	0	9.18E+5	0	0	0	4.72E+7	0	-4.42E+5
Use of secondary materials	kg	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	2.78E+3	8.68E+2	1.05E+1	2.19E-2	1.74E+3	1.6E+2	0	4.2E+2	0	0	0	1.32E+3	0	-2.93E+2
Total use of primary energy during the life cycle	MJ	5.01E+7	1.43E+6	7.43E+4	2.81E+2	4.85E+7	1.68E+5	0	9.5E+5	0	0	0	4.75E+7	0	-4.97E+5
Hazardous waste disposed of	kg	3.08E+4	2.44E+4	7.06E+1	2.35E-1	4E+3	2.33E+3	0	2.35E+3	0	0	0	1.65E+3	0	-1.03E+4
Non-hazardous waste disposed of	kg	4.57E+5	3.92E+5	4.23E+3	1.26E+0	3.73E+4	2.4E+4	0	2.07E+4	0	0	0	1.66E+4	0	-7.59E+4
Radioactive waste disposed of	kg	6.71E+1	1.91E+0	2.41E-2	3.06E-5	6.45E+1	6.79E-1	0	8.28E-1	0	0	0	6.37E+1	0	-0.56E+0
Components for re-use	kg	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	2.08E+4	3.92E+2	0	0	4.36E+3	1.6E+4	0	4.36E+3	0	0	0	0	0	0
Materials for energy recovery	kg	2.27E+1	0	0	0	2.5E+0	2.02E+1	0	2.5E+0	0	0	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	0	0	0	0	0	0	0	0	0	0	0	0	0	0

Files

PEP PDF
