GERE-00001-V01.01

Download the PEP PDF
Name of the PEP

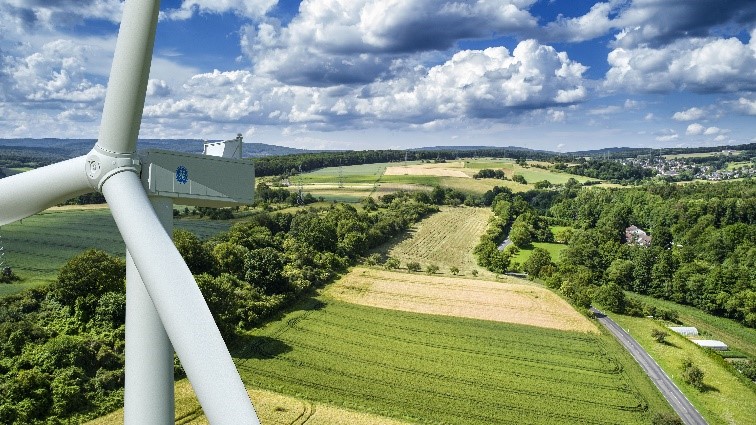

Cypress 5.5-158 Onshore Wind Turbine
Trademark / Owner
GE RENEWABLE
GE
Collective PEP
No
Product classification
  • Others
Date of publication
2021/04/27
Date of end of validity
2026/04/27
PCR
PEP-PCR-ed3-2015 04 02
PSR
No PSR
Use lifte time
25 years
Reference Product
Cypress 5.5-158 Onshore Wind Turbine
Energy model used
• Manufacturing: Energy models used: “Electricity, medium voltage {ES}| market for | Cut-off, U” for the blades, “Electricity, medium voltage {DE}| market for | Cut-off, U” for the nacelle, “Electricity, medium voltage {TR}| market for | Cut-off, U” for the tower.• Distribution: not applicable, no energy consuming operations• Installation: “Electricity, medium voltage {DE}| market for | Cut-off, U”• Operation and maintenance: “Electricity, medium voltage {DE}| market for | Cut-off, U”• End of life: not applicable, no energy consuming operations
Total mass
2279
Constitution
Plastic
2.80 %
Metal
25.60 %
Other
71.60 %
Functional Unit
1 kWh
Description
Production of one kWh of electricity generated by a wind turbine rated at 4.8 to 6 MW with an expected lifetime of 25 years
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 1.02E-2 6.59E-3 1.07E-4 9.04E-4 2.44E-3 1.99E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 8.4E-10 5.66E-10 1.88E-11 7.71E-11 1.22E-10 5.61E-11 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 5.1E-5 4.06E-5 1.39E-6 3.08E-6 5.03E-6 9.42E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 7.54E-6 5.03E-6 1.61E-7 4.5E-7 1.75E-6 1.53E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 4.36E-6 3.78E-6 3.91E-8 2.84E-7 2.22E-7 3.53E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 6.35E-7 5.86E-7 1.39E-9 3.5E-8 9.78E-9 2.78E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 6.27E-5 3.96E-5 1.4E-7 7.61E-6 1.41E-5 1.3E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 2.81E-1 2.26E-1 1.56E-3 1.08E-2 3.75E-2 4.72E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
