ABBG-00013-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

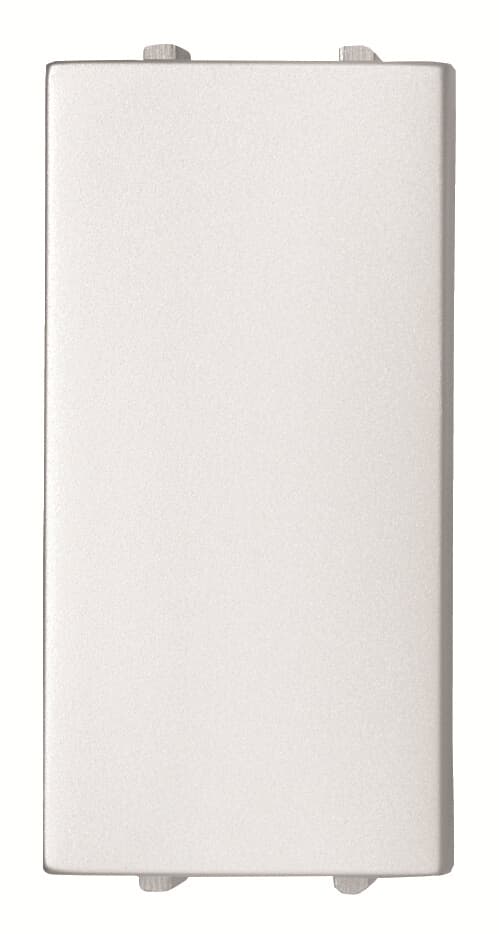

2CLP200000N1101 Zenit blank 1M plate white
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Enclosures
  • Enclosures
  • Surface mounted enclosures
Geographical validity area
europe
Date of publication
2022/12/19
Date of end of validity
2027/12/19
Date of verification
2022/12/07
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product
Zenit blank plate
Energy model used
Europe
Total mass
7.08 g
0.004 kg
(Product)
0.00338 kg
(Packaging)
0
(Other)
Constitution
Plastic
52.30 %
0.00400 kg
Metal
0.00 %
0.00000 kg
Other
47.70 %
0.00300 kg
Comments
Check EPD file for more details
Covered products by list
- N2100 BL
- N2100 PL
- N2100 AN
- N2100 CV
- N2000 BL
- N2000 PL
- N2000 AN
- N2000 CV
- N2200 BL
- N2200 PL
- N2200 AN
- N2200 CV
- Zenit blank plate
Covered products or brand by text
N2100 BL - N2100 PL - N2100 AN - N2100 CV - N2000 BL - N2000 PL - N2000 AN - N2000 CV - N2200 BL - N2200 PL - N2200 AN - N2200 CV
Functional Unit
7 g
Description
Protect persons during 20 years against direct contact withlive parts and allow grouping monitoring, control andprotection devices in a single enclosure or a cabinet havingthe following dimensions 22*44mm
Extrapolation Rules
For other products than the Reference product covered by this PEP, the environmental im-pacts for each phase of the lifecycle are obtained by multiplying the values of the Reference product by the coefficients in the ER table
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 4.84E-2 4.55E-2 1.41E-3 00E+0 00E+0 1.46E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 1.63E-9 1.3E-9 2.61E-10 00E+0 00E+0 6.88E-11 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 2.12E-4 2.07E-4 4.48E-6 00E+0 00E+0 1.32E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 4.52E-5 4.01E-5 9.97E-7 00E+0 00E+0 4.12E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 9.59E-6 9.34E-6 1.83E-7 00E+0 00E+0 6.21E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 4.76E-8 4.13E-8 4.94E-9 00E+0 00E+0 1.31E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 4.21E-2 4.17E-2 3.03E-4 00E+0 00E+0 9.12E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 5.66E-2 5.66E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9.86E-2 9.82E-2 3.03E-4 00E+0 00E+0 9.12E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 6.38E-1 6.11E-1 2.15E-2 00E+0 00E+0 5.61E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 1.05E-1 1.05E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 7.43E-1 7.16E-1 2.15E-2 00E+0 00E+0 5.61E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 1.79E-4 1.79E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 1.74E-2 1.73E-2 6.47E-5 00E+0 00E+0 2.12E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 2.97E-7 2.25E-7 5.61E-8 00E+0 00E+0 1.57E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 6.04E-3 3.87E-3 1.11E-3 00E+0 00E+0 1.06E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 2.78E-6 2.6E-6 1.45E-7 00E+0 00E+0 3.74E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 5.81E-3 00E+0 00E+0 00E+0 00E+0 5.81E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 5.46E-4 2.09E-4 00E+0 00E+0 00E+0 3.37E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 8.42E-1 8.14E-1 2.18E-2 00E+0 00E+0 5.7E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
