ACOM-00081-V01.01

Download the PEP PDF
Name of the PEP

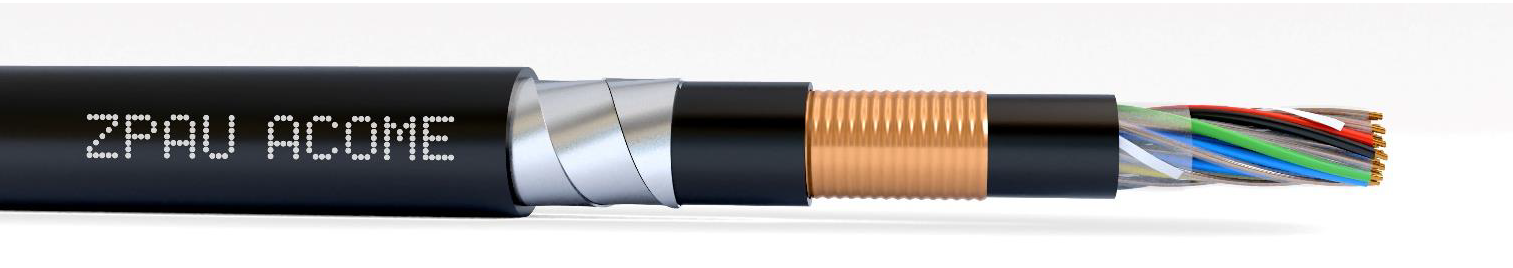

ACOME Câble de signalisation SNCF - ZPAU PVC 14P 1mm² - U3773
Trademark / Owner
ACOME
ACOME
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Others
  • Cabling
  • Copper wiring
Geographical validity area
FRA
Date of publication
2022/01/08
Date of end of validity
2027/01/08
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0001-ed3-2015 10 16
Use lifte time
30 years
Reference Product
U3773
Energy model used
France
Total mass
1187.3 g/m
Constitution
Plastic
24.30 %
0.28800 kg
Metal
62.90 %
0.74700 kg
Other
12.80 %
0.15200 kg
Comments
Ce produit ne contient pas de substances interdites par la réglementation en vigueur lors de sa mise sur le marché en dehors des opérations de maintenance effectuées lors de la phase d’utilisation.Estimation de l’emploi de matériaux recyclés : 4,5% en masse.
Covered products by list
- U3773
Covered products or brand by text
U3773
Functional Unit
1 m
Description
Transmettre des données et des signaux pendant 30 années et un taux d’utilisation de 100% sur une distance de 1 mètre pour contrôler, mesurer et réguler des équipements, en conformité avec les normes en vigueur.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 5.04E+0 3.82E+0 5.91E-2 8.67E-2 00E+0 1.07E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 6.01E-7 5.57E-7 1.2E-10 1.38E-9 00E+0 4.22E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 1.05E-2 9.39E-3 2.66E-4 6.08E-5 00E+0 7.54E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 2.35E-3 1.74E-3 6.1E-5 9.07E-5 00E+0 4.57E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 1.13E-3 1.01E-3 1.89E-5 1.52E-5 00E+0 7.97E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 1.01E-3 1.01E-3 2.37E-9 1.11E-9 00E+0 2.36E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 5.33E+1 4.93E+1 8.3E-1 1.75E-1 00E+0 2.93E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 1.7E+3 4.28E+2 9.72E+0 3.76E+1 00E+0 1.22E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 2.73E+3 2.7E+3 2.42E+0 2.22E+0 00E+0 2.99E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 2.62E+0 2.61E+0 1.11E-3 1.64E-3 00E+0 1.5E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 1.07E+0 1.07E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.69E+0 3.67E+0 1.11E-3 1.64E-3 00E+0 1.5E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 8.98E+1 8.36E+1 8.35E-1 2.45E-1 00E+0 5.15E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 6.23E+0 6.23E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9.61E+1 8.98E+1 8.35E-1 2.45E-1 00E+0 5.15E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 5.45E-2 5.45E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 1.8E+0 1.8E+0 5.29E-6 4.4E-5 00E+0 10E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 8.74E+1 8.62E+1 00E+0 3.41E-2 00E+0 1.14E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 2.25E+0 1.76E+0 2.1E-3 5.4E-2 00E+0 4.34E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 2.95E-3 2.91E-3 1.5E-6 2.56E-6 00E+0 3.88E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 8.71E-1 8.05E-2 00E+0 4.54E-2 00E+0 7.45E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 5.11E-3 00E+0 00E+0 5.11E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 3.02E-2 00E+0 00E+0 3.02E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 9.98E+1 9.35E+1 8.36E-1 2.47E-1 00E+0 5.16E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
