ABBG-00014-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

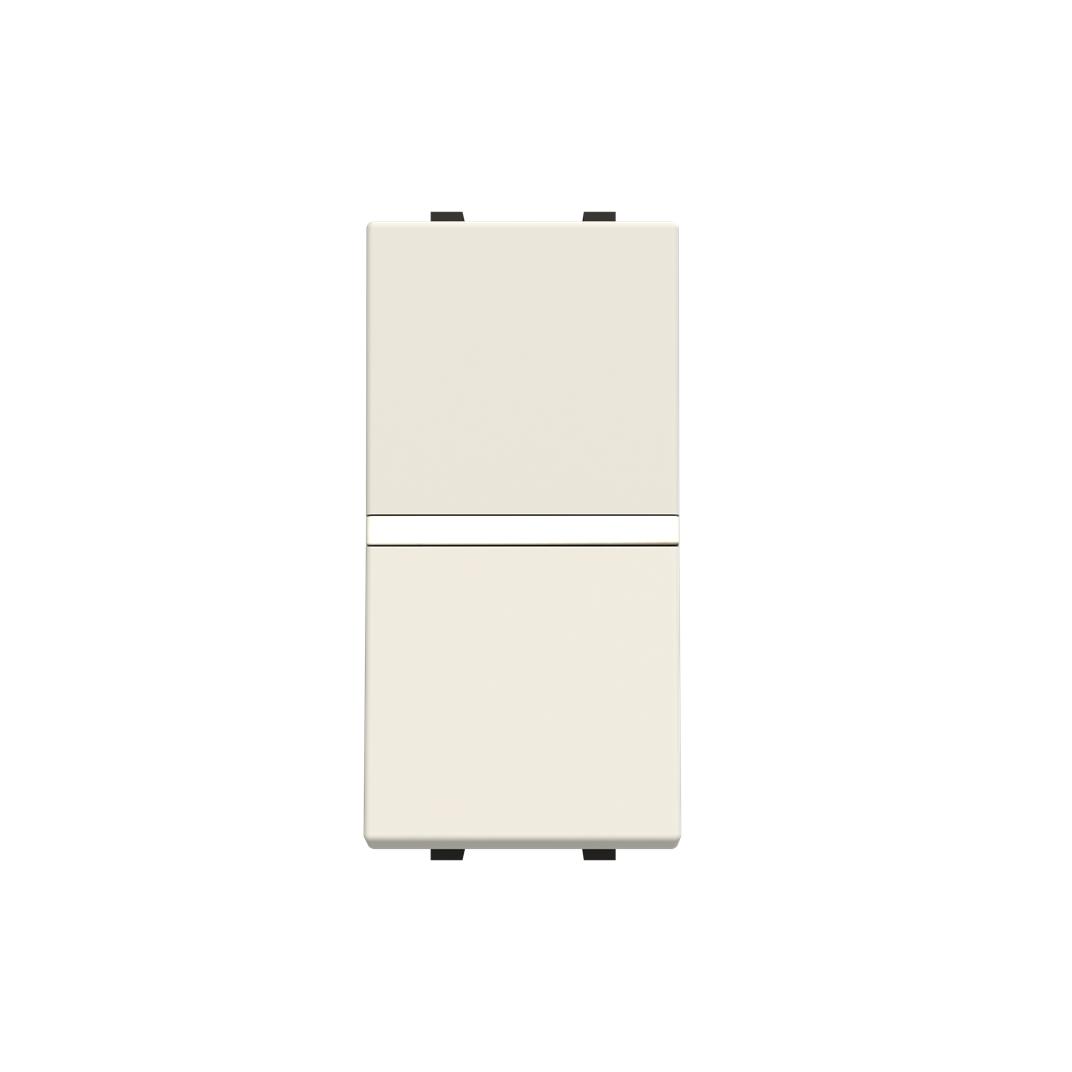

2CLA210209N1201 2-way-switch total white
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Electrical Switchgear and Controlgear Solutions for cabinet
  • Controlgear
  • Switch, inverter
Geographical validity area
europe
Date of publication
2022/12/19
Date of end of validity
2027/12/19
Date of verification
2022/11/22
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product
Zenit screw-type-switch
Energy model used
Europe
Total mass
28.48 g
0 kg
(Product)
0.00338 kg
(Packaging)
0
(Other)
Constitution
Plastic
55.80 %
0.16000 kg
Metal
32.30 %
0.09000 kg
Other
11.90 %
0.03000 kg
Comments
Check EPD file for more details
Covered products by list
- N2101.T BL
- N2101.T PL
- N2101.T AN
- N2101.T CV
- N2101.T BB
- N2101.T AA
- N2102.T BL
- N2102.T PL
- N2102.T AN
- N2102.T CV
- N2102.T BB
- N2102.T AA
- N2110.T BL
- N2110.T PL
- N2110.T AN
- N2110.T CV
- N2110.T BB
- N2110.T AA
- N2101.2T BL
- N2101.2T PL
- N2101.2T AN
- N2101.2T CV
- N2101.2T BB
- N2101.2T AA
- N2104.7T BL
- N2104.7T PL
- N2104.7T AN
- N2104.7T CV
- N2104.7T BB
- N2104.7T AA
- Zenit screw-type-switch
Covered products or brand by text
N2101.T BL - N2101.T PL - N2101.T AN - N2101.T CV - N2101.T BB - N2101.T AA - N2102.T BL - N2102.T PL - N2102.T AN - N2102.T CV - N2102.T BB - N2102.T AA - N2110.T BL - N2110.T PL - N2110.T AN - N2110.T CV - N2110.T BB - N2110.T AA - N2101.2T BL - N2101.2T PL - N2101.2T AN - N2101.2T CV - N2101.2T BB - N2101.2T AA - N2104.7T BL - N2104.7T PL - N2104.7T AN - N2104.7T CV - N2104.7T BB - N2104.7T AA
Functional Unit
28 g
Description
Establish, support and interrupt for 20 years rated currents innormal conditions of circuit characterized by the current 16 A(Ith). (The functional unit is based on the use scenariorecommended by the PCR for the category of the referenceproduct)
Extrapolation Rules
The only difference between the reference product and the push button is a little spring. This ring can be compared with the spring of a pen, so definitely a very small item, under the 5% of the total weight of the product. This is the reason why the extrapolation rule has been considered as 1 in this case. The differences between the different variants are the number of contacts mainly so the energy lost can be kept the same between all the variants, as confirmed with the internal laboratory, who are the owners of the test, conducted to calculate this value. Also, there is no difference in the end-of-life scenario, as they are all managed the same way by the waste manager agents. The packaging system and the disposal keeps the same between variants, so there is no difference between them on the distribution stage.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 1.17E+1 1.17E+1 5.66E-3 00E+0 2.32E-5 5.88E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 1.08E-6 1.08E-6 1.05E-9 00E+0 2.82E-12 2.77E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 3.16E-2 3.15E-2 1.8E-5 00E+0 9.76E-8 5.31E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 1.5E-2 1.5E-2 4.01E-6 00E+0 2.57E-8 1.66E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 1.53E-3 1.53E-3 7.38E-7 00E+0 4.75E-9 2.5E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 8.21E-4 8.21E-4 1.99E-8 00E+0 2.33E-10 5.29E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.17E+2 1.17E+2 1.22E-3 00E+0 1.22E-4 3.67E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 5.66E-2 5.66E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.17E+2 1.17E+2 1.22E-3 00E+0 1.22E-4 3.67E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.95E+2 1.95E+2 8.64E-2 00E+0 3.62E-4 2.26E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 4.09E-1 4.09E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.95E+2 1.95E+2 8.64E-2 00E+0 3.62E-4 2.26E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 7.94E-4 7.94E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 1.5E+1 1.5E+1 2.6E-4 00E+0 1.56E-5 8.54E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 6.79E-4 6.79E-4 2.26E-7 00E+0 7.22E-10 6.34E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 1.15E+0 1.14E+0 4.45E-3 00E+0 1.28E-6 4.27E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 6.26E-4 6.25E-4 5.85E-7 00E+0 1.04E-9 1.51E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 2.79E-2 3.86E-3 00E+0 00E+0 00E+0 2.4E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 1.6E-3 2.09E-4 00E+0 00E+0 00E+0 1.4E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 3.13E+2 3.13E+2 8.77E-2 00E+0 4.84E-4 2.29E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
