LEDV-00054-V01.01

Download the PEP PDF

General informations

Name of the PEP

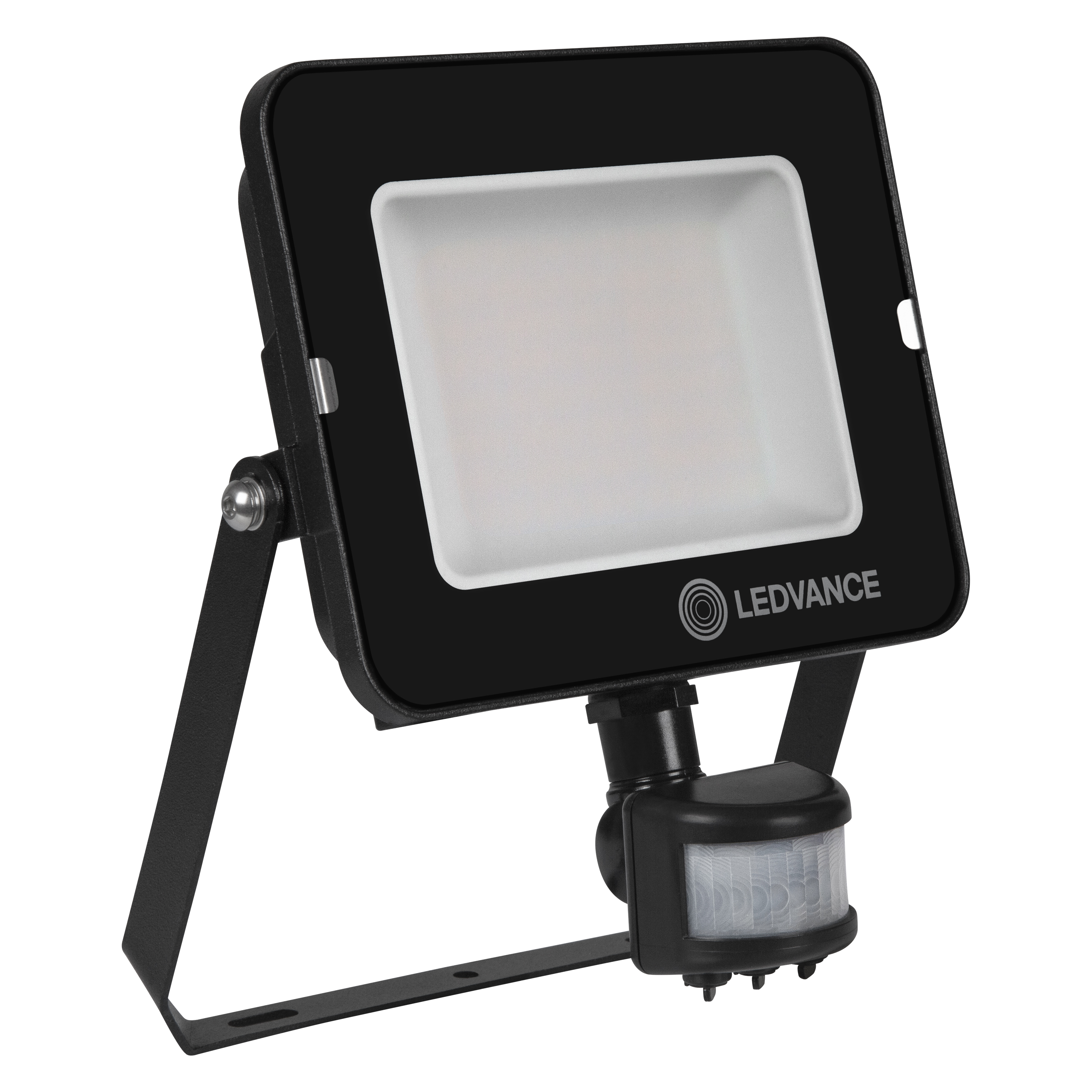

FLOODLIGHT COMPACT (SENSOR)

Trademark / Owner

LEDVANCE

LEDVANCE GMBH

Collective PEP

Product classification

Lighting products
Outdoor lighting products and control gear
other outdoor lighting fixtures
Outdoor lighting fixtures for functional lighting

Geographical validity area

european_union27

Date of publication

2025/07/03

Date of end of validity

2030/07/03

Date of verification

2025/08/04

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0014-ed2-2023 07 13

Use life time

12 years

Reference Product

FL COMP SEN V 50W 840 SYM 100 BK

Energy model used

EU-28

Bill of material

Total mass

0.777 kg

Constitution

Plastic

5.30 %

0.03200 kg

Metal

42.80 %

0.25700 kg

Other

51.90 %

0.31100 kg

Homogeneous environmental family

Covered products or brand by text

FL COMP SEN V 50W 840 SYM 100 BK FL COMP V 10W 865 SYM 100 WT FL COMP V 20W 830 SYM 100 BK FL COMP V 20W 830 SYM 100 WT FL COMP V 20W 840 SYM 100 BK FL COMP V 20W 840 SYM 100 WT FL COMP V 20W 865 SYM 100 BK FL COMP V 20W 865 SYM 100 WT FL COMP V 50W 830 SYM 100 BK FL COMP V 50W 830 SYM 100 WT FL COMP V 50W 840 SYM 100 BK FL COMP V 50W 840 SYM 100 WT FL COMP V 50W 865 SYM 100 BK FL COMP V 50W 865 SYM 100 WT FL COMP V 90W 830 SYM 100 BK FL COMP V 90W 840 SYM 100 BK FL COMP V 90W 865 SYM 100 BK FL COMP V 135W 830 SYM 100 BK FL COMP V 135W 840 SYM 100 BK FL COMP V 135W 865 SYM 100 BK FL COMP V 180W 830 SYM 100 BK FL COMP V 180W 840 SYM 100 BK FL COMP V 180W 865 SYM 100 BK FL COMP SEN V 10W 830 SYM 100 BK FL COMP SEN V 10W 840 SYM 100 BK FL COMP SEN V 20W 830 SYM 100 BK FL COMP SEN V 20W 840 SYM 100 BK FL COMP SEN V 50W 830 SYM 100 BK

Functional unit impacts

Functional Unit

1 unit

Description

Provide lighting that delivers an outgoing artificial luminous flux of 1,000 lumens during a reference lifetime of 35,000 hours.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	6.3E+1	1.29E+0	3E-2	2E-2	6.16E+1	3.52E-2	6.16E+1	-0.3E+0
Climate change - fossil fuels	kg.eq.CO2	6.22E+1	1.32E+0	3E-2	1.22E-2	6.08E+1	3.52E-2	6.08E+1	-0.33E+0
Climate change - biogenics	kg.eq.CO2	5.98E-1	-0.03E+0	-2.89E-5	7.72E-3	6.25E-1	-2.23E-5	6.25E-1	2.92E-2
Climate change - land use and land use transformation	kg.eq.CO2	2.05E-1	4.35E-3	8.37E-5	4.42E-5	2.01E-1	7.69E-5	2.01E-1	-0E+0
Ozone depletion	kg.eq.CFC-11	1.4E-9	1.36E-11	3.42E-15	3.24E-14	1.39E-9	6.63E-14	1.39E-9	-5.53E-12
Acidification (AP)	mole.eq.H+	1.43E-1	8.76E-3	4.94E-4	3.2E-5	1.33E-1	3.61E-5	1.33E-1	-0E+0
Freshwater eutrophication	kg.eq.P	1.39E-4	8.63E-6	2.74E-8	2.75E-7	1.3E-4	2.88E-8	1.3E-4	-5.88E-7
Marine aquatic eutrophication	kg.eq.N	3.34E-2	1.28E-3	1.78E-4	1.71E-5	3.19E-2	1.43E-5	3.19E-2	-0E+0
Terrestrial eutrophication	mole.eq.N	3.74E-1	1.38E-2	1.94E-3	1.45E-4	3.58E-1	1.63E-4	3.58E-1	-0E+0
Photochemical ozone formation	kg.eq.NMVOC	8.36E-2	3.84E-3	4.88E-4	2.64E-5	7.93E-2	3.5E-5	7.93E-2	-0E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1.41E-4	1.28E-4	1.09E-9	8.44E-9	1.26E-5	1.03E-9	1.26E-5	-4.19E-5
Depletion of abiotic resources - fossil fuels	MJ	1.26E+3	1.65E+1	3.61E-1	1.65E-1	1.24E+3	1.86E-1	1.24E+3	-4.1E+0
Water requirement	m³.eq.deprivation worldwide	1.56E+1	3.66E-1	7.79E-5	1.65E-3	1.52E+1	5.8E-3	1.52E+1	-0.05E+0
Emission of fine particles	incidence of diseases	1.21E-6	9.43E-8	1.13E-8	2.35E-10	1.1E-6	3.68E-10	1.1E-6	-3.17E-8
Ionizing radiation, human health	kBq.eq.U235	3.24E+1	5.99E-2	6.99E-5	7.2E-4	3.23E+1	1.29E-3	3.23E+1	-0.02E+0
Ecotoxicity (fresh water)	CTUe	2.18E+2	8.01E+0	3.22E-1	4.99E-2	2.09E+2	1.29E-1	2.09E+2	-1.45E+0
Human toxicity, carcinogenic effects	CTUh	2.04E-8	6.66E-10	4.7E-12	2.25E-12	1.97E-8	4.38E-12	1.97E-8	-2.06E-10
Human toxicity, non-carcinogenic effects	CTUh	4.33E-7	1.7E-8	1.49E-10	1.85E-10	4.15E-7	3.15E-10	4.15E-7	-3.51E-9
Impacts related to land use/soil quality	-	5.05E+2	7.35E+0	4.64E-2	1.92E-1	4.97E+2	6.35E-2	4.97E+2	-1.47E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	8.54E+2	5.79E+0	9.07E-3	4.89E-2	8.48E+2	4.7E-2	8.48E+2	-2.59E+0
Use of renewable primary energy resources used as raw materials	MJ	4.45E-1	4.45E-1	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	8.54E+2	6.23E+0	9.07E-3	4.89E-2	8.48E+2	4.7E-2	8.48E+2	-2.59E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.26E+3	1.63E+1	3.61E-1	1.65E-1	1.24E+3	1.86E-1	1.24E+3	-4.1E+0
Use of non-renewable primary energy resources used as raw materials	MJ	1.2E-1	1.2E-1	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.26E+3	1.65E+1	3.61E-1	1.65E-1	1.24E+3	1.86E-1	1.24E+3	-4.1E+0
Use of secondary materials	kg	1.56E-2	1.56E-2	0	0	0	0	0	3.29E-2
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Net use of fresh water	m³	6.71E-1	1.24E-2	5.43E-6	1.1E-4	6.58E-1	1.52E-4	6.58E-1	-0E+0
Total use of primary energy during the life cycle	MJ	8.54E+2	6.23E+0	9.07E-3	4.89E-2	8.48E+2	4.7E-2	8.48E+2	-2.59E+0
Hazardous waste disposed of	kg	1.64E-6	1.45E-8	1.31E-11	2.75E-9	1.62E-6	7.62E-11	1.62E-6	-5.63E-9
Non-hazardous waste disposed of	kg	1.16E+0	1.7E-1	3.53E-5	2.18E-3	9.61E-1	3.08E-2	9.61E-1	-0.09E+0
Radioactive waste disposed of	kg	1.96E-1	5.23E-4	5.01E-7	4.4E-6	1.96E-1	8.21E-6	1.96E-1	-0E+0
Components for re-use	kg	0	0	0	0	0	0	0	0
Materials for recycling	kg	5.54E-2	3.32E-3	0	2.03E-2	0	3.18E-2	0	0
Materials for energy recovery	kg	1.24E-2	1.7E-3	0	2.24E-3	0	8.5E-3	0	0
Exported energy	MJ by energy vector	4.63E-2	6.7E-3	0	5.76E-3	0	3.39E-2	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	0	-0.01E+0	0	1.06E-2	0	0	0	0

Declared product impacts

Functional Unit

1 unit

Description

A luminaire providing an outgoing luminous flux of 5,000 lumen during a reference lifetime of 12.5 years.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	4.5E+2	9.23E+0	2.15E-1	1.43E-1	4.4E+2	2.52E-1	4.4E+2	-2.12E+0
Climate change - fossil fuels	kg.eq.CO2	4.44E+2	9.45E+0	2.14E-1	8.74E-2	4.34E+2	2.51E-1	4.34E+2	-2.32E+0
Climate change - biogenics	kg.eq.CO2	4.27E+0	-0.25E+0	-0E+0	5.51E-2	4.46E+0	-0E+0	4.46E+0	2.08E-1
Climate change - land use and land use transformation	kg.eq.CO2	1.47E+0	3.11E-2	5.98E-4	3.16E-4	1.43E+0	5.49E-4	1.43E+0	-0.01E+0
Ozone depletion	kg.eq.CFC-11	9.99E-9	9.71E-11	2.45E-14	2.31E-13	9.89E-9	4.74E-13	9.89E-9	-3.95E-11
Acidification (AP)	mole.eq.H+	1.02E+0	6.25E-2	3.53E-3	2.29E-4	9.51E-1	2.58E-4	9.51E-1	-0.02E+0
Freshwater eutrophication	kg.eq.P	9.93E-4	6.17E-5	1.96E-7	1.96E-6	9.29E-4	2.06E-7	9.29E-4	-4.2E-6
Marine aquatic eutrophication	kg.eq.N	2.39E-1	9.14E-3	1.27E-3	1.22E-4	2.28E-1	1.02E-4	2.28E-1	-0E+0
Terrestrial eutrophication	mole.eq.N	2.67E+0	9.83E-2	1.39E-2	1.03E-3	2.56E+0	1.17E-3	2.56E+0	-0.03E+0
Photochemical ozone formation	kg.eq.NMVOC	5.97E-1	2.74E-2	3.49E-3	1.89E-4	5.66E-1	2.5E-4	5.66E-1	-0.01E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1E-3	9.15E-4	7.78E-9	6.03E-8	9.03E-5	7.38E-9	9.03E-5	-0E+0
Depletion of abiotic resources - fossil fuels	MJ	8.99E+3	1.18E+2	2.58E+0	1.18E+0	8.86E+3	1.33E+0	8.86E+3	-2.93E+1
Water requirement	m³.eq.deprivation worldwide	1.12E+2	2.61E+0	5.57E-4	1.18E-2	1.09E+2	4.14E-2	1.09E+2	-0.38E+0
Emission of fine particles	incidence of diseases	8.62E-6	6.74E-7	8.09E-8	1.68E-9	7.86E-6	2.63E-9	7.86E-6	-2.26E-7
Ionizing radiation, human health	kBq.eq.U235	2.31E+2	4.28E-1	5E-4	5.15E-3	2.31E+2	9.19E-3	2.31E+2	-0.13E+0
Ecotoxicity (fresh water)	CTUe	1.56E+3	5.72E+1	2.3E+0	3.56E-1	1.5E+3	9.2E-1	1.5E+3	-1.03E+1
Human toxicity, carcinogenic effects	CTUh	1.46E-7	4.76E-9	3.35E-11	1.61E-11	1.41E-7	3.13E-11	1.41E-7	-1.47E-9
Human toxicity, non-carcinogenic effects	CTUh	3.09E-6	1.21E-7	1.06E-9	1.32E-9	2.97E-6	2.25E-9	2.97E-6	-2.51E-8
Impacts related to land use/soil quality	-	3.6E+3	5.25E+1	3.31E-1	1.37E+0	3.55E+3	4.54E-1	3.55E+3	-1.05E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	6.1E+3	4.13E+1	6.48E-2	3.49E-1	6.06E+3	3.36E-1	6.06E+3	-1.85E+1
Use of renewable primary energy resources used as raw materials	MJ	3.18E+0	3.18E+0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	6.1E+3	4.45E+1	6.48E-2	3.49E-1	6.06E+3	3.36E-1	6.06E+3	-1.85E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	8.98E+3	1.17E+2	2.58E+0	1.18E+0	8.86E+3	1.33E+0	8.86E+3	-2.93E+1
Use of non-renewable primary energy resources used as raw materials	MJ	8.55E-1	8.55E-1	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	8.99E+3	1.18E+2	2.58E+0	1.18E+0	8.86E+3	1.33E+0	8.86E+3	-2.93E+1
Use of secondary materials	kg	1.12E-1	1.12E-1	0	0	0	0	0	2.35E-1
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0
Net use of fresh water	m³	4.79E+0	8.85E-2	3.88E-5	7.88E-4	4.7E+0	1.08E-3	4.7E+0	-0.02E+0
Total use of primary energy during the life cycle	MJ	6.1E+3	4.45E+1	6.48E-2	3.49E-1	6.06E+3	3.36E-1	6.06E+3	-1.85E+1
Hazardous waste disposed of	kg	1.17E-5	1.03E-7	9.35E-11	1.96E-8	1.16E-5	5.44E-10	1.16E-5	-4.02E-8
Non-hazardous waste disposed of	kg	8.31E+0	1.21E+0	2.52E-4	1.56E-2	6.86E+0	2.2E-1	6.86E+0	-0.61E+0
Radioactive waste disposed of	kg	1.4E+0	3.73E-3	3.58E-6	3.14E-5	1.4E+0	5.87E-5	1.4E+0	-0E+0
Components for re-use	kg	0	0	0	0	0	0	0	0
Materials for recycling	kg	3.96E-1	2.37E-2	0	1.45E-1	0	2.27E-1	0	0
Materials for energy recovery	kg	8.89E-2	1.21E-2	0	1.6E-2	0	6.07E-2	0	0
Exported energy	MJ by energy vector	3.31E-1	4.78E-2	0	4.11E-2	0	2.42E-1	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	0	-0.08E+0	0	7.6E-2	0	0	0	0
