ABBG-00006-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP
ABB EQ METER
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Others
Date of publication
2022/07/28
Date of end of validity
2027/07/28
Date of verification
2022/09/12
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0005-ed2-2016 03 29
Use life time
20 years
Reference Product

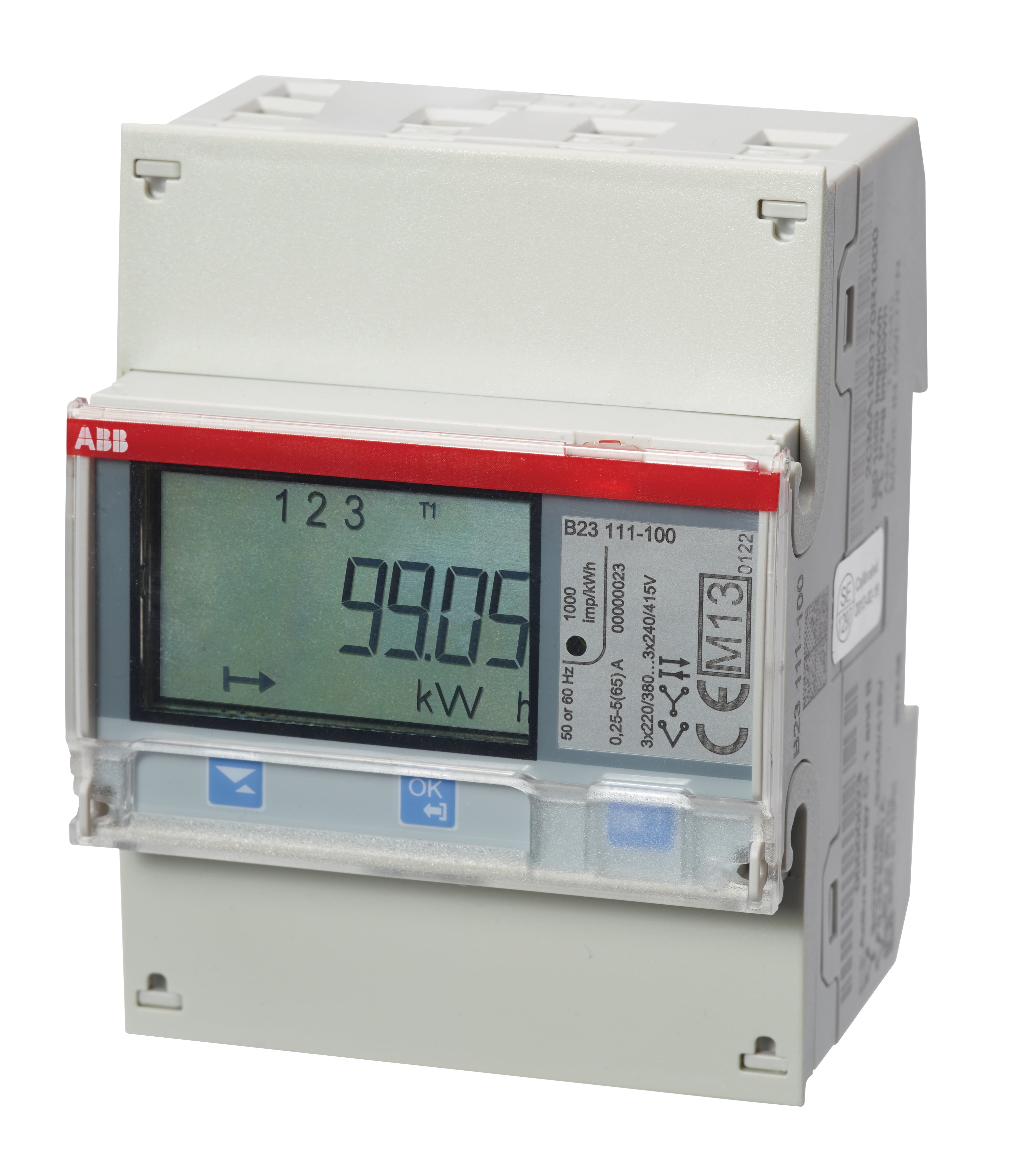

ABB EQ METER B23 111-100
Energy model used
Manufacturing: Italian grid mix, medium voltage - Use: European grid mix, medium voltage
Total mass
302 g
0.289 kg
(Product)
0.013 kg
(Packaging)
(Other)
Constitution
Plastic
28.00 %
0.08500 kg
Metal
53.00 %
0.16000 kg
Other
19.00 %
0.05700 kg
Covered products by list
- ABB EQ METER B21 112-100
- ABB EQ METER B23 112-100
- ABB EQ METER B23 113-100
- ABB EQ METER B24 113-100
- ABB EQ METER C11 110-301
- ABB EQ METERS series A-B-C
Functional Unit
1 unit
Description
Measure energy consumption for sub billing purposes with direct and indirect (via CT) connection. The measure has to be provided with a rated level of accuracy (1%). The measurement can be readout by the user in different ways (based on the product code): via HMI, via Modbus or via Mbus
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 7.23E+1 1.04E+1 3.38E-2 00E+0 6.19E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 4.75E-6 7.16E-7 00E+0 00E+0 4.03E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 3.38E-1 7.98E-2 5.34E-4 00E+0 2.58E-1 4.11E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 2.62E-2 1.05E-2 6.4E-5 00E+0 1.56E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 1.85E-2 4.29E-3 2.84E-5 00E+0 1.42E-2 2.41E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 3.75E-3 3.75E-3 00E+0 00E+0 4.42E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 2.97E+1 2.6E-1 00E+0 00E+0 2.94E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 8.54E+2 1.56E+2 4.53E-1 00E+0 6.98E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
