VIMP-00004-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

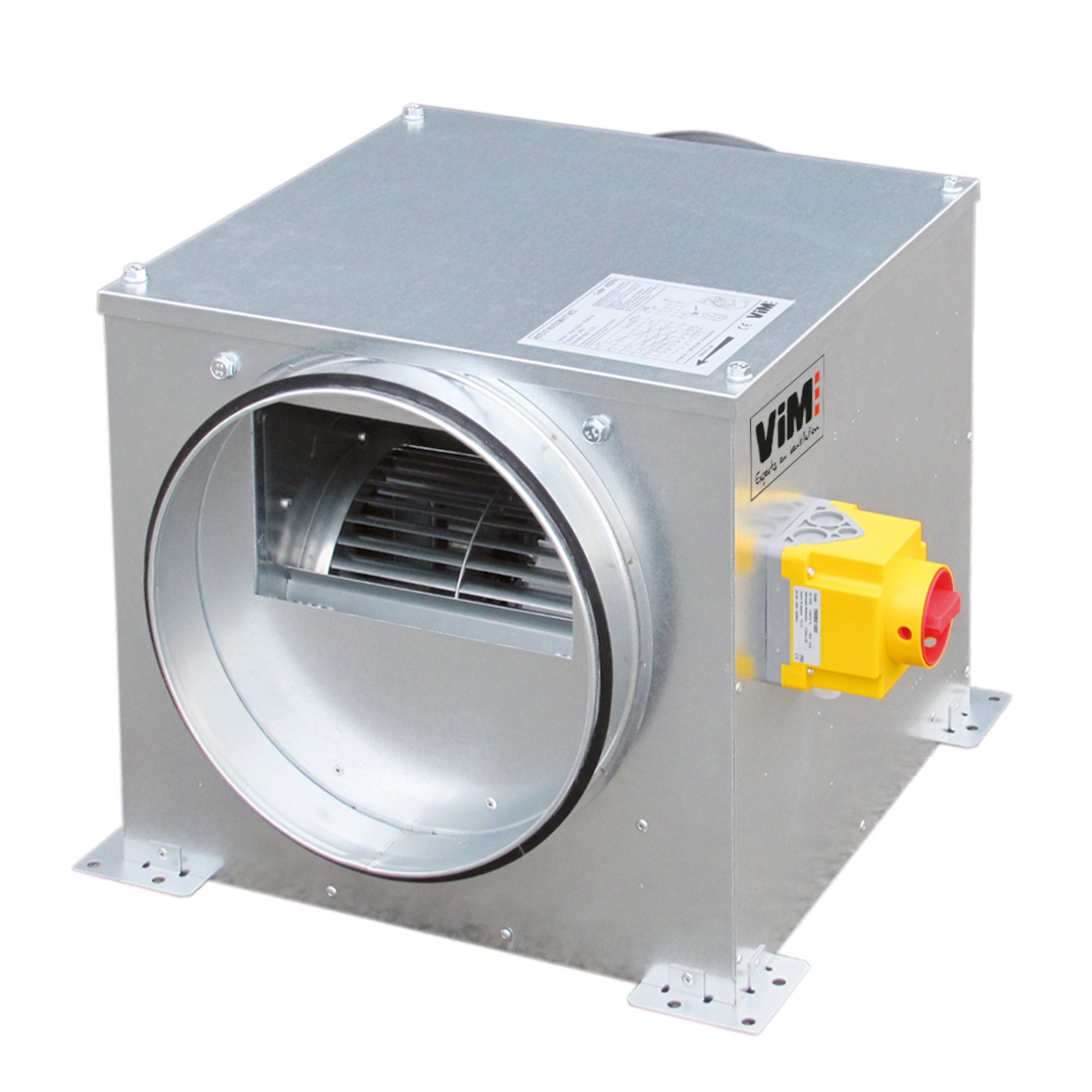

KSTD ECOWATT Caisson d’extraction ou d'insufflation basse consommation à entrainement direct
Trademark / Owner
VIM
VIM
Collective PEP
No
Product classification
  • Heating, ventilation and air conditioning equipement
  • Ventilation units
  • Unidirectionnal ventilation unit
Date of publication
2019/04/28
Date of end of validity
2024/04/28
Date of verification
-
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0008-ed2-2018 02 09
Use life time
17 years
Reference Product
KSTD ECOWATT 45 DB Référence: 452265
Energy model used
Fabrication et utilisation en France
Total mass
77.2 kg
70.2 kg
(Product)
7 kg
(Packaging)
(Other)
Constitution
Plastic
1.30 %
0.90000 kg
Metal
78.20 %
60.40000 kg
Other
20.50 %
15.90000 kg
Comments
Emballage 7
Covered products by list
- KSTD ECOWATT 45 DB Référence: 452265
Covered products or brand by text
KSTD ECOWATT PR : Gamme de caissons d’extraction ou d'insufflation à entrainement direct, moteur ECM basse consommation :6 tailles : 07 / 10 / 15 / 28 / 40 / 45.(Débits de 0 à 4600 m3/h).3 versions :• NU : sans isolation• IS : isolation 10mm mousse de polyéthylène• DB isolation 50mm laine de roche2 configurations :• Avec interrupteur de proximité (INTZ) et depressostat (BDEZ).• Avec interrupteur de proximité (INTZ).
Functional Unit
1 m³/h
Description
Assurer un transfert d’air d’1 m3/h en vue de la ventilation d’un bâtiment pendant une durée de vie type de 17 ans
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 1.1E+0 7.82E-2 1.4E-3 3.24E-4 1.02E+0 1.71E-3 00E+0 4.56E-2 00E+0 00E+0 00E+0 9.74E-1 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 2.12E-6 7.5E-9 2.61E-10 1.56E-11 2.11E-6 1.8E-10 00E+0 4.68E-9 00E+0 00E+0 00E+0 2.11E-6 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 4.29E-3 5.49E-4 3.75E-6 2.6E-7 3.73E-3 3.25E-6 00E+0 2.85E-4 00E+0 00E+0 00E+0 3.45E-3 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 5.56E-4 1.72E-4 6.39E-7 5.09E-8 3.82E-4 1.37E-6 00E+0 1.12E-4 00E+0 00E+0 00E+0 2.7E-4 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 3.16E-4 6.1E-5 4.22E-7 3.59E-8 2.54E-4 5.53E-7 00E+0 3.19E-5 00E+0 00E+0 00E+0 2.22E-4 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 1.71E-5 1.01E-5 3.74E-12 6.34E-13 6.92E-6 2.37E-11 00E+0 6.87E-6 00E+0 00E+0 00E+0 5.18E-8 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 1.05E+1 9.25E-1 2.02E-2 1.2E-3 9.52E+0 1.32E-2 00E+0 5.57E-1 00E+0 00E+0 00E+0 8.96E+0 00E+0 00E+0 0
Water pollution m³ 1.74E-1 4.48E-2 4.12E-4 2.79E-5 1.29E-1 4.63E-4 00E+0 2.67E-2 00E+0 00E+0 00E+0 1.02E-1 00E+0 00E+0 0
Air pollution m³ 5.98E+1 2.39E+1 9.37E-2 5.41E-3 3.58E+1 6.85E-2 00E+0 1.25E+1 00E+0 00E+0 00E+0 2.33E+1 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 4.28E+0 1.48E-1 5.93E-5 4.07E-6 4.13E+0 9.63E-4 00E+0 4.42E-2 00E+0 00E+0 00E+0 4.08E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.28E+0 1.48E-1 5.93E-5 4.07E-6 4.13E+0 9.63E-4 00E+0 4.42E-2 00E+0 00E+0 00E+0 4.08E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 8.4E+1 1.03E+0 2.03E-2 1.21E-3 8.29E+1 1.55E-2 00E+0 6.09E-1 00E+0 00E+0 00E+0 8.23E+1 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 8.4E+1 1.03E+0 2.03E-2 1.21E-3 8.29E+1 1.55E-2 00E+0 6.09E-1 00E+0 00E+0 00E+0 8.23E+1 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 1.23E-2 8.08E-4 2.1E-6 2.41E-7 1.15E-2 7.12E-6 00E+0 4.63E-4 00E+0 00E+0 00E+0 1.11E-2 00E+0 00E+0 0
Hazardous waste disposed of kg 2.48E-2 1.5E-2 6.79E-7 4.73E-6 8.01E-3 1.76E-3 00E+0 7.86E-3 00E+0 00E+0 00E+0 1.51E-4 00E+0 00E+0 0
Non-hazardous waste disposed of kg 1.27E-1 7.57E-2 1.3E-5 9.7E-7 4.91E-2 1.71E-3 00E+0 4.91E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 5.07E-6 3E-6 1.47E-7 8.68E-9 1.8E-6 1.22E-7 00E+0 1.8E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 8.82E+1 1.18E+0 2.04E-2 1.21E-3 8.7E+1 1.64E-2 00E+0 6.53E-1 00E+0 00E+0 00E+0 8.64E+1 00E+0 00E+0 0
Functional Unit
1 m³/h
Description
Assurer le transfert d’air de 3400m3/h en vue de la ventilation d’un bâtiment tertiaire pendant une durée de vie type de 17 ans
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 3.74E+3 2.66E+2 4.77E+0 1.1E+0 3.47E+3 5.81E+0 00E+0 1.55E+2 00E+0 00E+0 00E+0 3.31E+3 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 7.21E-3 2.55E-5 8.87E-7 5.3E-8 7.18E-3 6.1E-7 00E+0 1.59E-5 00E+0 00E+0 00E+0 7.17E-3 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 1.46E+1 1.87E+0 1.27E-2 8.85E-4 1.27E+1 1.11E-2 00E+0 9.71E-1 00E+0 00E+0 00E+0 1.17E+1 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 1.89E+0 5.85E-1 2.17E-3 1.73E-4 1.3E+0 4.66E-3 00E+0 3.82E-1 00E+0 00E+0 00E+0 9.17E-1 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 1.07E+0 2.07E-1 1.43E-3 1.22E-4 8.63E-1 1.88E-3 00E+0 1.09E-1 00E+0 00E+0 00E+0 7.55E-1 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 5.8E-2 3.45E-2 1.27E-8 2.16E-9 2.35E-2 8.05E-8 00E+0 2.34E-2 00E+0 00E+0 00E+0 1.76E-4 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 3.56E+4 3.14E+3 6.87E+1 4.09E+0 3.24E+4 4.48E+1 00E+0 1.89E+3 00E+0 00E+0 00E+0 3.05E+4 00E+0 00E+0 0
Water pollution m³ 5.92E+2 1.52E+2 1.4E+0 9.5E-2 4.37E+2 1.57E+0 00E+0 9.07E+1 00E+0 00E+0 00E+0 3.46E+2 00E+0 00E+0 0
Air pollution m³ 2.03E+5 8.12E+4 3.19E+2 1.84E+1 1.22E+5 2.33E+2 00E+0 4.23E+4 00E+0 00E+0 00E+0 7.93E+4 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.45E+4 5.02E+2 2.02E-1 1.38E-2 1.4E+4 3.27E+0 00E+0 1.5E+2 00E+0 00E+0 00E+0 1.39E+4 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.45E+4 5.02E+2 2.02E-1 1.38E-2 1.4E+4 3.27E+0 00E+0 1.5E+2 00E+0 00E+0 00E+0 1.39E+4 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 2.85E+5 3.51E+3 6.91E+1 4.12E+0 2.82E+5 5.26E+1 00E+0 2.07E+3 00E+0 00E+0 00E+0 2.8E+5 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 2.85E+5 3.51E+3 6.91E+1 4.12E+0 2.82E+5 5.26E+1 00E+0 2.07E+3 00E+0 00E+0 00E+0 2.8E+5 00E+0 00E+0 0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 4.2E+1 2.75E+0 7.15E-3 8.18E-4 3.92E+1 2.42E-2 00E+0 1.57E+0 00E+0 00E+0 00E+0 3.76E+1 00E+0 00E+0 0
Hazardous waste disposed of kg 8.42E+1 5.09E+1 2.31E-3 1.61E-2 2.72E+1 5.99E+0 00E+0 2.67E+1 00E+0 00E+0 00E+0 5.13E-1 00E+0 00E+0 0
Non-hazardous waste disposed of kg 4.3E+2 2.57E+2 4.43E-2 3.3E-3 1.67E+2 5.82E+0 00E+0 1.67E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 1.72E-2 1.02E-2 4.99E-4 2.95E-5 6.12E-3 4.15E-4 00E+0 6.12E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 3E+5 4.01E+3 6.93E+1 4.13E+0 2.96E+5 5.59E+1 00E+0 2.22E+3 00E+0 00E+0 00E+0 2.94E+5 00E+0 00E+0 0
