VAIL-00008-V01.01

Download the PEP PDF
Name of the PEP

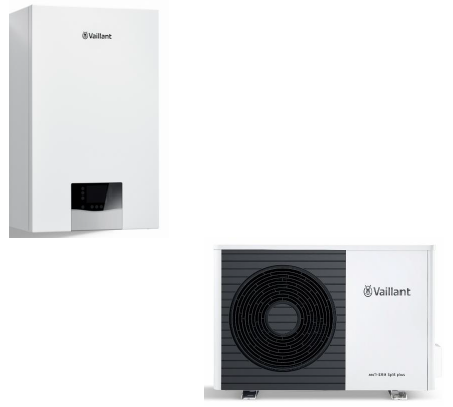

aroTHERM Split plus + module hydraulique Split plus - Pompe à chaleur AIR/EAU assurant le chauffage pour le logement individuel
Trademark / Owner
VAILLANT
SAUNIER DUVAL EAU CHAUDE CHAUFFAGE (SDECC)
Collective PEP
No
Product classification
  • Heating, ventilation and air conditioning equipement
  • Heating and/or air conditioning and/or hot water heating
  • Domestic heat pumps
  • Air/Water
Geographical validity area
FRA
Date of publication
2024/10/01
Date of end of validity
2029/10/01
Date of verification
2024/10/08
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0013-ed3-2023 06 06
Use lifte time
17 years
Reference Product
aroTHERM Split plus VWL 65/8.2 AS 230V S3 + Module hydraulique Split plus 4 / 6
Energy model used
France et Slovaquie
Total mass
158.7 kg
Constitution
Plastic
8.90 %
14.12400 kg
Metal
66.90 %
106.17000 kg
Other
24.20 %
38.40500 kg
Covered products by list
- aroTHERM plus VWL 65/8.2 AS 230V S3 + Module hydraulique Split plus 4 / 6
- aroTHERM plus VWL 45/8.2 AS 230V S3 + Module hydraulique Split plus 4 / 6
- aroTHERM plus VWL 85/8.2 AS 230V S3 + Module hydraulique Split plus 8
Covered products or brand by text
0010039770 + 0010039568 - 0010039771 + 0010039568 - 0010039772 + 0010039582
Functional Unit
1 kW
Description
Produire 1 kW de chauffage, selon le scénario d’usage approprié défini dans la norme EN 14825 et pendant la durée de vie de référence de 17 ans du produit
Extrapolation Rules
Règles d'extrapolation détaillées dans le PEP
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 8.73E+2 2.22E+2 3.18E+0 9.63E+0 6.23E+2 1.55E+1 7.22E+1 1.59E+1 0 0 0 5.35E+2 0 -5.99E+1
Climate change - fossil fuels kg.eq.CO2 7.9E+2 1.54E+2 2.28E+0 9.23E-1 6.21E+2 1.11E+1 7.22E+1 1.58E+1 0 0 0 5.33E+2 0 -4.38E+1
Climate change - biogenics kg.eq.CO2 5.69E+0 -1.68E+0 1.94E-3 6.3E+0 9.85E-1 9.39E-2 0 5.31E-3 0 0 0 9.8E-1 0 1.51E+0
Climate change - land use and land use transformation kg.eq.CO2 1.25E+0 7.53E-1 9.55E-4 3.1E-4 4.83E-1 1.39E-2 0 6.32E-3 0 0 0 4.77E-1 0 -0.26E+0
Ozone depletion kg.eq.CFC-11 8.4E-2 7.91E-2 8.46E-4 7.78E-5 2.57E-5 3.96E-3 0 7.28E-6 0 0 0 1.85E-5 0 -0.02E+0
Acidification (AP) mole.eq.H+ 4.36E+0 1.87E+0 4.76E-3 3.12E-3 2.33E+0 1.45E-1 0 6.87E-2 0 0 0 2.26E+0 0 -0.6E+0
Freshwater eutrophication kg.eq.P 3.52E+2 3.2E+2 7.86E-1 7.57E-2 1.03E-2 3.06E+1 0 2.3E-4 0 0 0 1E-2 0 -1.11E+2
Marine aquatic eutrophication kg.eq.N 3.27E+1 2.75E+1 1.29E-1 6.18E-2 4.99E-1 4.52E+0 0 1.92E-2 0 0 0 4.79E-1 0 -4.43E+0
Terrestrial eutrophication mole.eq.N 5.62E+5 5.59E+5 8.97E+2 8.59E+1 5.17E+0 2.77E+3 0 2.14E-1 0 0 0 4.95E+0 0 -3.22E+5
Photochemical ozone formation kg.eq.NMVOC 1.41E+2 1.19E+2 2.28E-1 1.2E+1 1.84E+0 8.03E+0 0 8.19E-2 0 0 0 1.76E+0 0 -3.37E+1
Depletion of abiotic resources - elements kg.eq.Sb -1.29E+0 1.06E+1 7.62E-6 -1.19E+1 4.67E-3 1.62E-3 0 1.7E-4 0 0 0 4.5E-3 0 -0.89E+0
Depletion of abiotic resources - fossil fuels MJ 7.94E+4 2.19E+3 3.23E+1 4.16E+0 7.7E+4 1.33E+2 0 2.11E+2 0 0 0 7.68E+4 0 -5.76E+2
Water requirement m³.eq.deprivation worldwide 1.35E+3 1.04E+3 1.29E+1 1.01E+0 2.25E+2 7.34E+1 0 2.29E+1 0 0 0 2.03E+2 0 -2.06E+2
Emission of fine particles incidence of diseases 5.52E+1 6.97E+1 1.67E-7 2.87E-8 1.59E-5 -1.45E+1 0 8.03E-7 0 0 0 1.51E-5 0 -1.09E+1
Ionizing radiation, human health kBq.eq.U235 1.81E+3 9.74E+2 1.28E+1 9.92E-1 7.65E+2 5.42E+1 0 1.52E-1 0 0 0 7.65E+2 0 -2.06E+2
Ecotoxicity (fresh water) CTUe 8.14E+3 5.24E+3 8.74E+0 1.67E+1 2.62E+3 2.48E+2 3.34E-3 1.07E+2 0 0 0 2.52E+3 0 -2.92E+3
Human toxicity, carcinogenic effects CTUh 1.31E-5 1.05E-5 1.62E-8 3.67E-9 2.48E-6 1.3E-7 0 1.28E-7 0 0 0 2.35E-6 0 -5.5E-6
Human toxicity, non-carcinogenic effects CTUh 2.57E-5 1.51E-5 2.02E-8 1.11E-7 5.92E-6 4.56E-6 7.33E-10 1.83E-7 0 0 0 5.73E-6 0 -1.85E-6
Impacts related to land use/soil quality - 4.57E+3 1.53E+3 1.94E+1 2.39E+0 2.94E+3 8.29E+1 0 7.92E+1 0 0 0 2.86E+3 0 -4.37E+2
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 7.16E+3 3.16E+2 5.52E-1 5.38E+1 6.77E+3 1.86E+1 0 6.25E+0 0 0 0 6.76E+3 0 -1.39E+2
Use of renewable primary energy resources used as raw materials MJ 3.21E+2 3.51E+2 7.57E-1 -5.31E+1 0 2.19E+1 0 0 0 0 0 0 0 -8.84E+1
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 7.15E+3 3.65E+2 5.52E-1 3.24E-1 6.77E+3 1.8E+1 0 6.25E+0 0 0 0 6.76E+3 0 -1.54E+2
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 7.92E+4 1.95E+3 3.21E+1 4.12E+0 7.7E+4 1.68E+2 0 2.11E+2 0 0 0 7.68E+4 0 -5.28E+2
Use of non-renewable primary energy resources used as raw materials MJ 8.27E+1 1.19E+2 0 9.51E-1 0 -3.73E+1 0 0 0 0 0 0 0 -1.32E+1
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 7.92E+4 2.07E+3 3.21E+1 4.34E+0 7.7E+4 1.26E+2 0 2.11E+2 0 0 0 7.68E+4 0 -5.41E+2
Use of secondary materials kg 6.55E-1 6.55E-1 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 1.17E+3 1.1E+3 1.3E+1 1.02E+0 0 6.15E+1 0 0 0 0 0 0 0 -2.39E+2
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 2.78E+1 4.91E+0 5.69E-3 3.37E-3 2.26E+1 2.24E-1 0 5.46E-1 0 0 0 2.21E+1 0 -0.85E+0
Total use of primary energy during the life cycle MJ 8.75E+4 3.53E+3 4.18E+1 5.46E+0 8.38E+4 2.05E+2 0 2.17E+2 0 0 0 8.36E+4 0 -9.35E+2
Hazardous waste disposed of kg 4.29E+0 1.82E+0 1.26E-3 9.26E-2 4.63E-1 1.91E+0 0 3.83E-2 0 0 0 4.25E-1 0 -0.06E+0
Non-hazardous waste disposed of kg 1.26E+3 8.71E+2 2.43E+0 1.77E+0 3.2E+2 6.79E+1 0 1.05E+1 0 0 0 3.1E+2 0 -2.3E+2
Radioactive waste disposed of kg 1E+0 5.01E-3 1.32E-5 1.71E-5 9.97E-1 8.18E-4 0 1.05E-4 0 0 0 9.97E-1 0 -0E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 2.26E+1 8.95E-1 0 3.73E+0 0 1.8E+1 0 0 0 0 0 0 0 0
Materials for energy recovery kg 2.34E+0 9.78E-2 0 5.31E-1 0 1.71E+0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 2.22E+0 2.22E+0 0 0 0 0 0 0 0 0 0 0 0 0
Functional Unit
1 unit
Description
Assurer le chauffage à l’aide d'une pompe à chaleur de 4,72 kW pour une durée de vie de référence de 17 ans du produit
Extrapolation Rules
Disponible dans la fiche PEP
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 4.12E+3 1.05E+3 1.5E+1 4.54E+1 2.94E+3 7.31E+1 3.41E+2 7.48E+1 0 0 0 2.52E+3 0 -2.83E+2
Climate change - fossil fuels kg.eq.CO2 3.73E+3 7.28E+2 1.08E+1 4.35E+0 2.93E+3 5.23E+1 3.41E+2 7.48E+1 0 0 0 2.52E+3 0 -2.07E+2
Climate change - biogenics kg.eq.CO2 2.69E+1 -7.95E+0 9.14E-3 2.97E+1 4.65E+0 4.43E-1 0 2.51E-2 0 0 0 4.62E+0 0 7.13E+0
Climate change - land use and land use transformation kg.eq.CO2 5.91E+0 3.55E+0 4.51E-3 1.46E-3 2.28E+0 6.57E-2 0 2.98E-2 0 0 0 2.25E+0 0 -1.23E+0
Ozone depletion kg.eq.CFC-11 3.96E-1 3.73E-1 3.99E-3 3.67E-4 1.22E-4 1.87E-2 0 3.44E-5 0 0 0 8.72E-5 0 -0.08E+0
Acidification (AP) mole.eq.H+ 2.06E+1 8.84E+0 2.25E-2 1.47E-2 1.1E+1 6.85E-1 0 3.24E-1 0 0 0 1.07E+1 0 -2.85E+0
Freshwater eutrophication kg.eq.P 1.66E+3 1.51E+3 3.71E+0 3.58E-1 4.84E-2 1.45E+2 0 1.09E-3 0 0 0 4.74E-2 0 -5.25E+2
Marine aquatic eutrophication kg.eq.N 1.54E+2 1.3E+2 6.09E-1 2.92E-1 2.35E+0 2.13E+1 0 9.08E-2 0 0 0 2.26E+0 0 -2.09E+1
Terrestrial eutrophication mole.eq.N 2.65E+6 2.64E+6 4.23E+3 4.05E+2 2.44E+1 1.31E+4 0 1.01E+0 0 0 0 2.34E+1 0 -1.52E+6
Photochemical ozone formation kg.eq.NMVOC 6.64E+2 5.6E+2 1.07E+0 5.65E+1 8.68E+0 3.79E+1 0 3.86E-1 0 0 0 8.3E+0 0 -1.59E+2
Depletion of abiotic resources - elements kg.eq.Sb -6.1E+0 5.02E+1 3.6E-5 -5.63E+1 2.2E-2 7.66E-3 0 8.02E-4 0 0 0 2.12E-2 0 -4.22E+0
Depletion of abiotic resources - fossil fuels MJ 3.75E+5 1.03E+4 1.53E+2 1.96E+1 3.63E+5 6.3E+2 0 9.97E+2 0 0 0 3.62E+5 0 -2.72E+3
Water requirement m³.eq.deprivation worldwide 6.4E+3 4.92E+3 6.1E+1 4.75E+0 1.06E+3 3.46E+2 0 1.08E+2 0 0 0 9.56E+2 0 -9.73E+2
Emission of fine particles incidence of diseases 2.6E+2 3.29E+2 7.9E-7 1.35E-7 7.48E-5 -6.84E+1 0 3.79E-6 0 0 0 7.1E-5 0 -5.16E+1
Ionizing radiation, human health kBq.eq.U235 8.53E+3 4.6E+3 6.04E+1 4.68E+0 3.61E+3 2.56E+2 0 7.17E-1 0 0 0 3.61E+3 0 -9.75E+2
Ecotoxicity (fresh water) CTUe 3.84E+4 2.47E+4 4.13E+1 7.88E+1 1.24E+4 1.17E+3 1.58E-2 5.05E+2 0 0 0 1.19E+4 0 -1.38E+4
Human toxicity, carcinogenic effects CTUh 6.21E-5 4.97E-5 7.65E-8 1.73E-8 1.17E-5 6.14E-7 0 6.03E-7 0 0 0 1.11E-5 0 -2.6E-5
Human toxicity, non-carcinogenic effects CTUh 1.21E-4 7.12E-5 9.52E-8 5.22E-7 2.79E-5 2.15E-5 3.46E-9 8.63E-7 0 0 0 2.71E-5 0 -8.74E-6
Impacts related to land use/soil quality - 2.16E+4 7.21E+3 9.16E+1 1.13E+1 1.39E+4 3.91E+2 0 3.74E+2 0 0 0 1.35E+4 0 -2.06E+3
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 3.38E+4 1.49E+3 2.61E+0 2.54E+2 3.19E+4 8.78E+1 0 2.95E+1 0 0 0 3.19E+4 0 -6.56E+2
Use of renewable primary energy resources used as raw materials MJ 1.51E+3 1.66E+3 3.57E+0 -2.51E+2 0 1.03E+2 0 0 0 0 0 0 0 -4.17E+2
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.37E+4 1.72E+3 2.6E+0 1.53E+0 3.19E+4 8.52E+1 0 2.95E+1 0 0 0 3.19E+4 0 -7.27E+2
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 3.74E+5 9.19E+3 1.52E+2 1.94E+1 3.63E+5 7.94E+2 0 9.97E+2 0 0 0 3.62E+5 0 -2.49E+3
Use of non-renewable primary energy resources used as raw materials MJ 3.9E+2 5.62E+2 0 4.49E+0 0 -1.76E+2 0 0 0 0 0 0 0 -6.23E+1
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.74E+5 9.75E+3 1.52E+2 2.05E+1 3.63E+5 5.94E+2 0 9.97E+2 0 0 0 3.62E+5 0 -2.55E+3
Use of secondary materials kg 3.09E+0 3.09E+0 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 5.54E+3 5.18E+3 6.14E+1 4.79E+0 0 2.9E+2 0 0 0 0 0 0 0 -1.13E+3
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 1.31E+2 2.32E+1 2.69E-2 1.59E-2 1.07E+2 1.06E+0 0 2.58E+0 0 0 0 1.04E+2 0 -3.99E+0
Total use of primary energy during the life cycle MJ 4.13E+5 1.67E+4 1.97E+2 2.58E+1 3.95E+5 9.68E+2 0 1.03E+3 0 0 0 3.94E+5 0 -4.41E+3
Hazardous waste disposed of kg 2.02E+1 8.58E+0 5.93E-3 4.37E-1 2.19E+0 9.03E+0 0 1.81E-1 0 0 0 2.01E+0 0 -0.26E+0
Non-hazardous waste disposed of kg 5.96E+3 4.11E+3 1.15E+1 8.34E+0 1.51E+3 3.21E+2 0 4.98E+1 0 0 0 1.46E+3 0 -1.08E+3
Radioactive waste disposed of kg 4.73E+0 2.36E-2 6.25E-5 8.07E-5 4.71E+0 3.86E-3 0 4.94E-4 0 0 0 4.71E+0 0 -0.01E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 1.07E+2 4.23E+0 0 1.76E+1 0 8.49E+1 0 0 0 0 0 0 0 0
Materials for energy recovery kg 1.1E+1 4.62E-1 0 2.51E+0 0 8.07E+0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 1.05E+1 1.05E+1 0 0 0 0 0 0 0 0 0 0 0 0
