ABBG-00004-V01.01 -EN

General informations

Name of the PEP

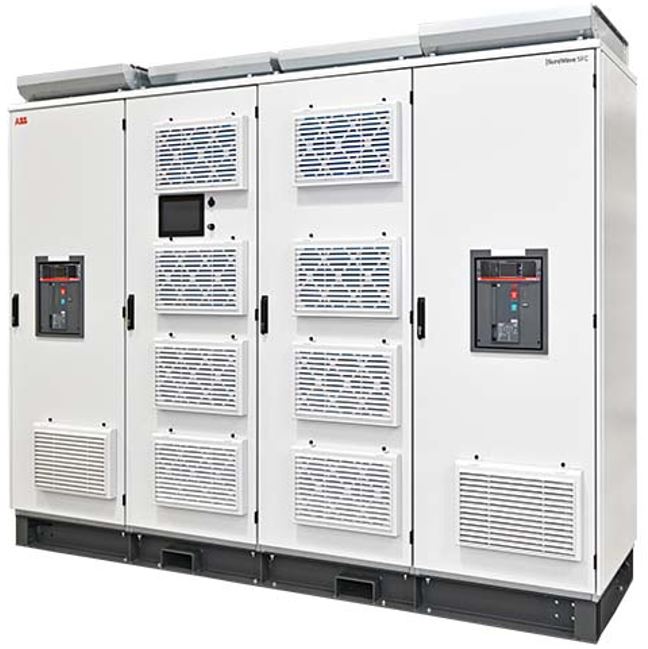

ABB SureWave SFC

Trademark / Owner

ABB ASEA BROWN BOVERI

ABB ASEA BROWN BOVERI LTD

Collective PEP

No

Product classification

• Others

Date of publication

2021/12/09

Date of end of validity

2026/12/09

Date of verification

-

PCR

PEP-PCR-ed3-2015 04 02

PSR

No PSR

Use lifte time

15 years

Reference Product

ABB SureWave SFC 2500 kVA product manufactured

Energy model used

Global 2021

Bill of material

Total mass

5027 kg

Constitution

Plastic

7.20 %

Metal

75.70 %

Other

17.10 %

Functional unit impacts

Functional Unit

1 unit

Description

To convert the frequency of 60 Hz powered equipment to a 50 Hz supply network, and 50 Hz powered equipment to a 60 Hz supply network, and convert the supply voltage to a different voltage to match the requirement of the load, during 15 years.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D	Benefits and loads beyond the system boundaries D
Global warming	kg.eq.CO2	3.8E+6	4.96E+4	9.61E+2	00E+0	3.75E+6	3.26E+2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Ozone depletion	kg.eq.CFC-11	1.61E-1	2.59E-3	1.95E-4	9.14E-6	1.58E-1	1.05E-4	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Acidification of soil and water	kg.eq.SO2	8.29E+3	3.89E+2	2.54E+1	5.32E-2	7.87E+3	1.53E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Water eutrophication	kg.eq.P04 3-	8.74E+3	2.54E+2	2.68E+0	00E+0	8.49E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Photochemical Ozone formation	kg.eq.C2H4	4.37E+2	3.7E+1	6.13E-1	00E+0	3.99E+2	1.31E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Depletion of abiotic resources - elements	kg.eq.Sb	2.64E+1	2.09E+1	1.32E-3	1.52E-4	5.58E+0	1.1E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Depletion of abiotic resources - fossil fuels	MJ	5.6E+7	5.96E+5	1.24E+4	3.1E+2	5.54E+7	5.21E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Water pollution	m³	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Air pollution	m³	1.03E+4	6.79E+2	7.54E-1	00E+0	9.65E+3	7.19E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	5.78E+7	6.76E+5	1.25E+4	3.15E+2	5.71E+7	5.27E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of secondary materials	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Net use of fresh water	m³	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Hazardous waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Non-hazardous waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Radioactive waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Components for re-use	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Materials for recycling	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Materials for energy recovery	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Exported energy	MJ by energy vector	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of primary energy during the life cycle	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0

Declared product impacts

Functional Unit

1 unit

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D	Benefits and loads beyond the system boundaries D
Global warming	kg.eq.CO2	3.8E+6	4.96E+4	9.61E+2	00E+0	3.75E+6	3.26E+2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Ozone depletion	kg.eq.CFC-11	1.61E-1	2.59E-3	1.95E-4	9.14E-6	1.58E-1	1.05E-4	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Acidification of soil and water	kg.eq.SO2	8.29E+3	3.89E+2	2.54E+1	5.32E-2	7.87E+3	1.53E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Water eutrophication	kg.eq.P04 3-	8.74E+3	2.54E+2	2.68E+0	00E+0	8.49E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Photochemical Ozone formation	kg.eq.C2H4	4.37E+2	3.7E+1	6.13E-1	00E+0	3.99E+2	1.31E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Depletion of abiotic resources - elements	kg.eq.Sb	2.64E+1	2.09E+1	1.32E-3	1.52E-4	5.58E+0	1.1E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Depletion of abiotic resources - fossil fuels	MJ	5.6E+7	5.96E+5	1.24E+4	3.1E+2	5.54E+7	5.21E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Water pollution	m³	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Air pollution	m³	1.03E+4	6.79E+2	7.54E-1	00E+0	9.65E+3	7.19E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	5.78E+7	6.76E+5	1.25E+4	3.15E+2	5.71E+7	5.27E+3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable primary energy resources used as raw materials	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of secondary materials	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Use of non-renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Net use of fresh water	m³	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Hazardous waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Non-hazardous waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Radioactive waste disposed of	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Components for re-use	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Materials for recycling	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Materials for energy recovery	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Exported energy	MJ by energy vector	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0
Total use of primary energy during the life cycle	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	0

Files

PEP PDF

Extrapolation rules
