ABBG-00231-V01.01 -EN

General informations

Name of the PEP

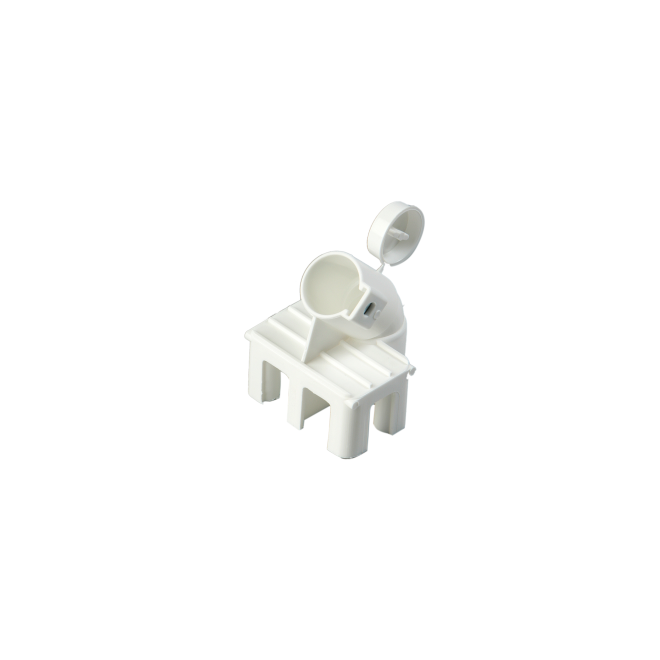

Piping materials - Bushing insulators

Trademark / Owner

ABB ASEA BROWN BOVERI

ABB ASEA BROWN BOVERI LTD

Collective PEP

No

Product classification

• Installation wiring devices for electric power and communication networks (≤ 63 amperes)
• Miscellenaeous

Geographical validity area

europe / FIN

Date of publication

2023/05/01

Date of end of validity

2028/05/01

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0005-ed2-2016 03 29

Use lifte time

20 years

Reference Product

2TKA160007G1 - AJ10.20

Energy model used

Manufacturing: Estonia national electric mix Installation: Based on sales mix (see geographical representativeness) Use: Non-applicableEnd of life: Based on sales mix (see geographical representativeness)

Bill of material

Total mass

0.017 kg

Constitution

Plastic

84.90 %

0.01400 kg

Metal

2.30 %

0.00000 kg

Other

12.80 %

0.00200 kg

Comments

The reference product and other products in this range are in conformity with the provisions of Low Voltage Directive 2014/35/EU, and national legislation. Plastic used for the reference product are halogen-free materials (IEC/61249-2-21) and they are also recyclable.

Homogeneous environmental family

Covered products by list

- 2TKA001608G1 - AJ10.20.CH
- 2TKA001609G1 - AJ10.25.CH
- 2TKA160010G1 - AJ16.20
- 2TKA160007G1 - AJ10.20
- 2TKA160008G1 - AJ10.25

Functional unit impacts

Functional Unit

1 unit

Description

Protect persons during 20 years against direct contact with liveparts and allow grouping monitoring, control, and protectiondevices in a single enclosure or a cabinet having the followingdimensions (Ø 20 mm x 60 mm x 50 mm)

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	5.4E-2	4.65E-2	3.95E-4	2.79E-4	00E+0	6.83E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	9.06E-3
Climate change - fossil fuels	kg.eq.CO2	5.38E-2	4.63E-2	3.95E-4	2.77E-4	00E+0	6.82E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	9.04E-3
Climate change - biogenics	kg.eq.CO2	1.47E-4	1.4E-4	1.14E-7	1.98E-6	00E+0	4.44E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	3.82E-5
Climate change - land use and land use transformation	kg.eq.CO2	5.3E-5	4.87E-5	1.78E-7	1.53E-7	00E+0	4E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-1.49E-5
Ozone depletion	kg.eq.CFC-11	2.93E-9	2.37E-9	9.1E-11	3.39E-11	00E+0	4.38E-10	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-2.44E-10
Acidification (AP)	mole.eq.H+	2.33E-4	2.14E-4	2.01E-6	9.92E-7	00E+0	1.6E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-4.13E-5
Freshwater eutrophication	kg.eq.P	1.77E-5	1.69E-5	2.52E-8	2.39E-8	00E+0	7.27E-7	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-2.21E-6
Marine aquatic eutrophication	kg.eq.N	5.1E-5	4.52E-5	4.29E-7	3.55E-7	00E+0	5.02E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-4.23E-6
Terrestrial eutrophication	mole.eq.N	5.05E-4	4.49E-4	4.73E-6	3.52E-6	00E+0	4.8E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-6.24E-5
Photochemical ozone formation	kg.eq.NMVOC	1.46E-4	1.32E-4	1.19E-6	8.58E-7	00E+0	1.23E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-2.1E-5
Depletion of abiotic resources - elements	kg.eq.Sb	2.7E-7	2.39E-7	1.35E-9	1.39E-9	00E+0	2.84E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-9.89E-8
Depletion of abiotic resources - fossil fuels	MJ	1.48E+0	1.41E+0	5.95E-3	2.9E-3	00E+0	5.75E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.43E+0
Water requirement	m³.eq.deprivation worldwide	2.87E-2	2.74E-2	1.76E-5	3.08E-5	00E+0	1.22E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.01E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	1.33E-1	1.3E-1	8.23E-5	1.12E-4	00E+0	3E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.02E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.33E-1	1.3E-1	8.23E-5	1.12E-4	00E+0	3E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.02E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	2.84E-5	2.31E-5	2.7E-7	1.73E-7	00E+0	4.89E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	2.99E-6
Use of non-renewable primary energy resources used as raw materials	MJ	1.57E+0	1.5E+0	6.32E-3	3.07E-3	00E+0	6.12E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.46E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.57E+0	1.5E+0	6.32E-3	3.07E-3	00E+0	6.12E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.46E+0
Net use of fresh water	m³	5.54E-4	5.19E-4	6.97E-7	9.77E-7	00E+0	3.29E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Hazardous waste disposed of	kg	4.74E-7	3.56E-7	1.48E-8	6.99E-9	00E+0	9.6E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-8.21E-8
Non-hazardous waste disposed of	kg	1.33E-2	3.19E-3	2.9E-4	1.48E-3	00E+0	8.32E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Radioactive waste disposed of	kg	2.11E-6	1.81E-6	4.03E-8	1.7E-8	00E+0	2.4E-7	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-7.82E-7
Materials for recycling	kg	7.04E-3	00E+0	00E+0	1.36E-3	00E+0	5.68E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
