ABBG-00017-V01.01

Download the PEP PDF

General informations

Name of the PEP

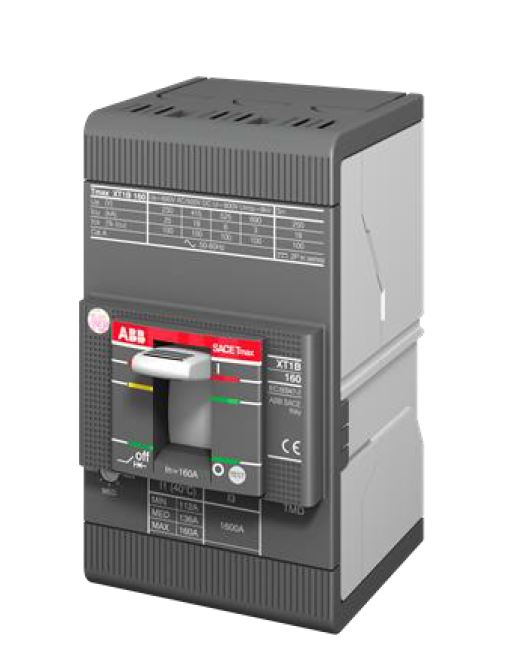

ABB MCCB Tmax XT XT1 TM 160A (IT)

Trademark / Owner

ABB ASEA BROWN BOVERI

ABB ASEA BROWN BOVERI LTD

Collective PEP

Product classification

Installation wiring devices for electric power and communication networks (≤ 63 amperes)
Electrical Switchgear and Controlgear Solutions for cabinet
Circuit breakers for overcurrent protection
Circuit breaker

Geographical validity area

world

Date of publication

2022/08/01

Date of end of validity

2027/08/01

Date of verification

2023/04/14

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0005-ed2-2016 03 29

Use life time

20 years

Reference Product

XT1 3p IEC S-H TMD 160A

Energy model used

Global

Bill of material

Total mass

1.308 kg

Constitution

Plastic

43.23 %

0.56500 kg

Metal

44.42 %

0.58100 kg

Other

12.35 %

0.16100 kg

Comments

Check EPD file for more details

Homogeneous environmental family

Covered products by list

- XT1 3p IEC B TMD R25
- XT1 3p IEC C TMD R25
- XT1 3p IEC N TMD R25
- XT1 3p IEC N TMF R16
- XT1 3p IEC N TMF R20
- XT1 3p IEC S-H TMD R25
- XT1 3p IEC S-H TMF R16
- XT1 3p IEC S-H TMF R20
- XT1 3p IEC B TMD R100
- XT1 3p IEC B TMD R32
- XT1 3p IEC B TMD R40
- XT1 3p IEC B TMD R50
- XT1 3p IEC B TMD R63
- XT1 3p IEC B TMD R80
- XT1 3p IEC C TMD R100
- XT1 3p IEC C TMD R32
- XT1 3p IEC C TMD R40
- XT1 3p IEC C TMD R50
- XT1 3p IEC C TMD R63
- XT1 3p IEC C TMD R80
- XT1 3p IEC N TMD R100
- XT1 3p IEC N TMD R32
- XT1 3p IEC N TMD R40
- XT1 3p IEC N TMD R50
- XT1 3p IEC N TMD R63
- XT1 3p IEC N TMD R80
- XT1 3p IEC S-H TMD R100
- XT1 3p IEC S-H TMD R32
- XT1 3p IEC S-H TMD R40
- XT1 3p IEC S-H TMD R50
- XT1 3p IEC S-H TMD R63
- XT1 3p IEC S-H TMD R80
- XT1 3p IEC B TMD R125
- XT1 3p IEC C TMD R125
- XT1 3p IEC N TMD R125
- XT1 3p IEC S-H TMD R125
- XT1 3p IEC B TMD R160
- XT1 3p IEC C TMD R160
- XT1 3p IEC N TMD R160
- XT1 3p IEC S-H TMD R160
- XT1 3p UL N TMF R15
- XT1 3p UL N TMF R20
- XT1 3p UL S-H TMF R15
- XT1 3p UL S-H TMF R20
- XT1 3p UL N TMF R25
- XT1 3p UL S-H TMF R25
- XT1 3p UL N TMF R30
- XT1 3p UL N TMF R35
- XT1 3p UL N TMF R40
- XT1 3p UL N TMF R45
- XT1 3p UL S-H TMF R30
- XT1 3p UL S-H TMF R35
- XT1 3p UL S-H TMF R40
- XT1 3p UL S-H TMF R45
- XT1 3p UL N TMF R100
- XT1 3p UL N TMF R110
- XT1 3p UL N TMF R50
- XT1 3p UL N TMF R60
- XT1 3p UL N TMF R70
- XT1 3p UL N TMF R80
- XT1 3p UL N TMF R90
- XT1 3p UL S-H TMF R100
- XT1 3p UL S-H TMF R110
- XT1 3p UL S-H TMF R50
- XT1 3p UL S-H TMF R60
- XT1 3p UL S-H TMF R70
- XT1 3p UL S-H TMF R80
- XT1 3p UL S-H TMF R90
- XT1 3p UL N TMF R125
- XT1 3p UL S-H TMF R125
- XT1 3p UL H MCP 3
- XT1 3p UL H MCP 7
- XT1 3p UL H MCP 50
- XT1 3p UL H MCP 15
- XT1 3p UL H MCP 30
- XT1 3p UL H MCP 70
- XT1 3p UL H MCP 80
- XT1 3p UL H MCP 100
- XT1 3p UL H MCP 125
- XT1 3p IEC - D 160
- XT1 3p UL - MCS 125
- XT1 4p IEC B TMD R25
- XT1 4p IEC C TMD R25
- XT1 4p IEC N TMD R25
- XT1 4p IEC N TMF R16
- XT1 4p IEC N TMF R20
- XT1 4p IEC S-H TMD R25
- XT1 4p IEC S-H TMF R16
- XT1 4p IEC S-H TMF R20
- XT1 4p IEC B TMD R100
- XT1 4p IEC B TMD R32
- XT1 4p IEC B TMD R40
- XT1 4p IEC B TMD R50
- XT1 4p IEC B TMD R63
- XT1 4p IEC B TMD R80
- XT1 4p IEC C TMD R100
- XT1 4p IEC C TMD R32
- XT1 4p IEC C TMD R40
- XT1 4p IEC C TMD R50
- XT1 4p IEC C TMD R63
- XT1 4p IEC C TMD R80
- XT1 4p IEC N TMD R100
- XT1 4p IEC N TMD R32
- XT1 4p IEC N TMD R40
- XT1 4p IEC N TMD R50
- XT1 4p IEC N TMD R63
- XT1 4p IEC N TMD R80
- XT1 4p IEC S-H TMD R100
- XT1 4p IEC S-H TMD R32
- XT1 4p IEC S-H TMD R40
- XT1 4p IEC S-H TMD R50
- XT1 4p IEC S-H TMD R63
- XT1 4p IEC S-H TMD R80
- XT1 4p IEC B TMD R125
- XT1 4p IEC C TMD R125
- XT1 4p IEC N TMD R125
- XT1 4p IEC S-H TMD R125
- XT1 4p IEC B TMD R160
- XT1 4p IEC C TMD R160
- XT1 4p IEC N TMD R160
- XT1 4p IEC S-H TMD R160
- XT1 4p UL N TMF R15
- XT1 4p UL N TMF R20
- XT1 4p UL N TMF S-H
- XT1 4p UL N TMF R25
- XT1 4p UL S-H TMF R25
- XT1 4p UL N TMF R30
- XT1 4p UL N TMF R35
- XT1 4p UL N TMF R40
- XT1 4p UL N TMF R45
- XT1 4p UL S-H TMF R30
- XT1 4p UL S-H TMF R35
- XT1 4p UL S-H TMF R40
- XT1 4p UL S-H TMF R45
- XT1 4p UL N TMF R100
- XT1 4p UL N TMF R110
- XT1 4p UL N TMF R50
- XT1 4p UL N TMF R60
- XT1 4p UL N TMF R70
- XT1 4p UL N TMF R80
- XT1 4p UL N TMF R90
- XT1 4p UL S-H TMF R100
- XT1 4p UL S-H TMF R110
- XT1 4p UL S-H TMF R50
- XT1 4p UL S-H TMF R60
- XT1 4p UL S-H TMF R70
- XT1 4p UL S-H TMF R80
- XT1 4p UL S-H TMF R90
- XT1 4p UL N TMF R125
- XT1 4p UL S-H TMF R125
- XT1 4p IEC - D 160
- XT1 4p UL - MCS 125
- XT1 3p IEC S-H TMD 160A

Functional unit impacts

Functional Unit

1 unit

Description

A single circuit breaker (including its packaging and acces-sories), to protect during 20 years of the installation against overloads and short-circuits in circuit with assigned voltage U and rated current In

Extrapolation Rules

This LCA covers different build configurations than representative product. All the analyzed configurations have the same main functionality, product standards and manufacturing technology. The LCA SimaPro model has been fully parametrized to fulfill each different configuration.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Global warming	kg.eq.CO2	3.24E+2	9.1E+0	3E+0	4.35E-2	3.12E+2	3.84E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Climate change - total	kg.eq.CO2	3.24E+2	9.1E+0	3E+0	4.35E-2	3.12E+2	3.84E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Climate change - fossil fuels	kg.eq.CO2	3.2E+2	9.07E+0	3E+0	1.04E-2	3.07E+2	3.68E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Climate change - biogenics	kg.eq.CO2	4.02E+0	2.25E-2	1.1E-3	3.31E-2	3.95E+0	1.52E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Climate change - land use and land use transformation	kg.eq.CO2	4.38E-1	9.94E-3	2.3E-4	3.89E-6	4.28E-1	2.02E-4	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Ozone depletion	kg.eq.CFC-11	1.93E-5	9.51E-7	6.83E-7	2.53E-9	1.77E-5	3.21E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Acidification (AP)	mole.eq.H+	1.48E+0	1.42E-1	1.54E-2	5.7E-5	1.32E+0	1.61E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Freshwater eutrophication	kg.eq.P	1.92E-1	1.33E-2	4.75E-5	7.06E-7	1.78E-1	6.51E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Marine aquatic eutrophication	kg.eq.N	2.49E-1	1.62E-2	5.46E-3	3.42E-5	2.26E-1	1.29E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Terrestrial eutrophication	mole.eq.N	2.4E+0	1.87E-1	5.98E-2	2.16E-4	2.15E+0	3.92E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Photochemical ozone formation	kg.eq.NMVOC	6.74E-1	5.22E-2	1.57E-2	6.78E-5	6.04E-1	1.15E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Depletion of abiotic resources - elements	kg.eq.Sb	7.13E-3	5.09E-3	1.12E-6	2.56E-8	2.04E-3	3.47E-7	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Depletion of abiotic resources - fossil fuels	MJ	5.1E+3	1.29E+2	4.23E+1	1.64E-1	4.93E+3	3.46E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Water requirement	m³.eq.deprivation worldwide	6.38E+1	5.37E+0	3.92E-2	6.76E-4	5.84E+1	2.26E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Emission of fine particles	incidence of diseases	6.49E-6	6.9E-7	4.55E-8	1.26E-9	5.72E-6	2.83E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Ionizing radiation, human health	kBq.eq.U235	7.17E+1	8.55E-1	1.91E-1	8.52E-4	7.06E+1	2.18E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Ecotoxicity (fresh water)	CTUe	5.36E+3	1.45E+3	2.32E+1	1.84E-1	3.89E+3	5.78E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Human toxicity, carcinogenic effects	CTUh	1.33E-7	3.87E-8	3.17E-10	6.79E-12	9.4E-8	3.22E-10	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Human toxicity, non-carcinogenic effects	CTUh	4.42E-6	1.53E-6	3.69E-8	1.85E-10	2.84E-6	1.88E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Impacts related to land use/soil quality	-	1.04E+3	8.31E+1	7.62E+0	1.88E-1	9.46E+2	2.91E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	7.27E+2	2.5E+1	1.62E-1	2.59E-3	7.01E+2	2.4E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of renewable primary energy resources used as raw materials	MJ	2.13E+0	2.13E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	7.29E+2	2.71E+1	1.62E-1	2.59E-3	7.01E+2	2.4E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	5.09E+3	1.15E+2	4.23E+1	1.64E-1	4.93E+3	3.46E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of non-renewable primary energy resources used as raw materials	MJ	1.33E+1	1.33E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	5.1E+3	1.29E+2	4.23E+1	1.64E-1	4.93E+3	3.46E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of secondary materials	kg	2.64E-1	2.64E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Net use of fresh water	m³	2.23E+0	1.45E-1	1.46E-3	2.92E-5	2.08E+0	1.08E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Hazardous waste disposed of	kg	4.93E-3	1.11E-3	1.12E-4	3.93E-7	3.71E-3	4.82E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Non-hazardous waste disposed of	kg	1.84E+1	2.2E+0	2.32E-1	2.3E-2	1.53E+1	6.32E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Radioactive waste disposed of	kg	1.86E-2	3.57E-4	2.99E-4	1.1E-6	1.8E-2	1.64E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for recycling	kg	1E+0	2.1E-1	00E+0	8.05E-2	00E+0	7.12E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for energy recovery	kg	3.69E-2	00E+0	00E+0	9.28E-3	00E+0	2.76E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Biogenic carbon content of the product	kg of C	2.03E-2	2.03E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Biogenic carbon content of the associated packaging	kg of C	2.09E-2	2.09E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
