ABBG-00002-V01.01

Download the PEP PDF
Name of the PEP

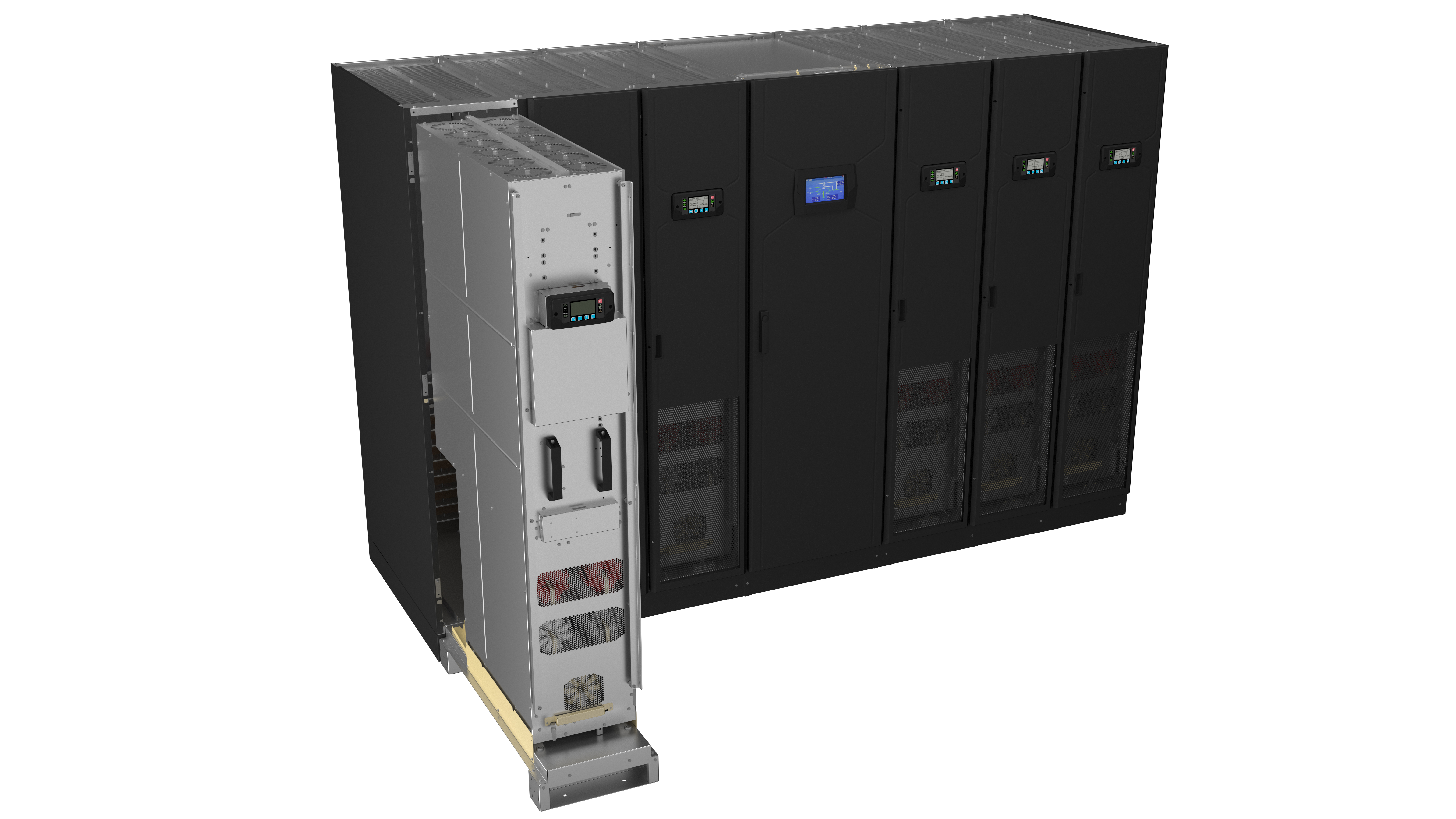

MegaFlex DPA UPS
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
Yes
Product classification
  • Electric engineering, automation, process control engineering
  • Power supply
  • Uninterruptible Power Systems
  • UPS - VFI > 10kW (Online double conversion)
Date of publication
2021/06/19
Date of end of validity
2026/06/19
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0010-ed1.1-2015 10 16
Use lifte time
15 years
Reference Product
MegaFlex DPA 1500kW IEC Uninterruptible Power Supply with decentralized bypass
Energy model used
World
Total mass
3183 kg
Constitution
Plastic
3.20 %
Metal
79.10 %
Other
17.70 %
Covered products or brand by text
MegaFlex DPA 1500kW IEC, MegaFlex DPA 1250 kW IEC, MegaFlex DPA 1000 kW IEC
Functional Unit
1 unit
Description
To protect the load of 1500 kW against input power failure during 15 years and switch to the energy storage system to avoid power outage
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 1.64E+6 2.54E+4 7.01E+2 4.1E+1 1.61E+6 4.75E+2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 1.28E-1 1.04E-2 1.21E-4 7.9E-6 1.17E-1 9.87E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 7.58E+3 4.74E+2 7.77E+0 1.56E-1 7.09E+3 1.86E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 3.88E+3 2.19E+2 9.97E-1 00E+0 3.66E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 3.56E+2 3.27E+1 2.31E-1 4.92E-3 3.23E+2 5.13E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 2.14E+1 1.08E+1 1.81E-2 1.03E-3 1.06E+1 9.26E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 6.28E+3 3.62E+2 1.48E+0 1.21E-1 5.92E+3 1.69E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 2.32E+7 3.6E+5 1.01E+4 6.45E+2 2.28E+7 7.67E+3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Functional Unit
1 unit
Description
MegaFlex DPA 1250 kW IEC, MegaFlex DPA 1000 kW IEC
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 1.36E+6 2.18E+4 6.24E+2 4.1E+1 1.34E+6 4.19E+2 1.09E+6 1.69E+4 4.68E+2 2.92E+1 1.07E+6 3.13E+2 00E+0
Ozone depletion kg.eq.CFC-11 1.06E-1 8.7E-3 1.07E-4 7.9E-6 9.75E-2 8.7E-5 8.51E-2 6.92E-3 8.05E-5 5.63E-6 7.8E-2 6.51E-5 00E+0
Acidification of soil and water kg.eq.SO2 6.33E+3 4.14E+2 6.91E+0 1.56E-1 5.91E+3 1.65E+0 5E+3 2.64E+2 5.18E+0 1.11E-1 4.73E+3 1.23E+0 00E+0
Water eutrophication kg.eq.P04 3- 3.24E+3 1.91E+2 8.87E-1 00E+0 3.05E+3 00E+0 2.57E+3 1.23E+2 6.65E-1 00E+0 2.44E+3 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 2.97E+2 2.81E+1 2.05E-1 4.92E-3 2.69E+2 4.55E-2 2.35E+2 1.99E+1 1.54E-1 3.5E-3 2.15E+2 3.4E-2 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 1.81E+1 9.28E+0 1.61E-2 1.03E-3 8.81E+0 8.17E-3 1.41E+1 7.05E+0 1.21E-2 7.3E-4 7.05E+0 6.12E-3 00E+0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 5.25E+3 3.14E+2 1.3E+0 1E-1 4.93E+3 1.5E+0 4.17E+3 2.24E+2 9.87E-1 8.59E-2 3.95E+3 1.11E+0 00E+0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 1.93E+7 3.09E+5 9.03E+3 6.45E+2 1.9E+7 6.78E+3 1.55E+7 2.38E+5 6.77E+3 4.59E+2 1.52E+7 5.06E+3 00E+0
