BUBE-00001-V01.04

Download the PEP PDF
Name of the PEP

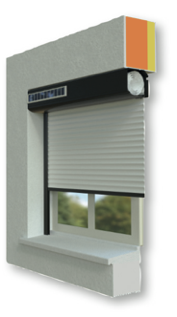

VOLET MONO ID3 SOLAR
Trademark / Owner
BUBENDORFF
BUBENDORFF SAS
Collective PEP
No
Product classification
  • building security
  • Miscellenaeous
Geographical validity area
europe
Date of publication
2021/10/01
Date of end of validity
2026/10/01
Date of verification
2022/05/30
PCR
PEP-PCR-ed3-2015 04 02
PSR
No PSR
Use lifte time
30 years
Reference Product
VOLET MONO ID3 SOLAR
Energy model used
France
Total mass
7.39 kg
6.39 kg
(Product)
1 kg
(Packaging)
0
(Other)
Constitution
Plastic
9.70 %
0.72000 kg
Metal
72.10 %
5.33000 kg
Other
18.20 %
1.34000 kg
Covered products by list
- M3 Solar
- VOLET MONO ID3 SOLAR
- M3 SO
Functional Unit
1 m²
Description
Assurer le fonctionnement de la fermeture effectuant 30000 cycles de fonctionnement, sur une durée de vie de 30 ans, avec un volet de dimension 1m2.
Extrapolation Rules
La règle d'extrapolation est une simple proportionnalité avec la surface réelle du produit par rapport à l'UF qui est de 1m2.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 7.13E+1 6.12E+1 2.97E+0 9.58E-2 6.43E+0 6.3E-1 00E+0 00E+0 00E+0 6.43E+0 00E+0 00E+0 00E+0 00E+0 0
Ozone depletion kg.eq.CFC-11 1.8E-5 1.18E-5 4.97E-7 3.63E-10 5.61E-6 4.89E-8 00E+0 00E+0 00E+0 5.61E-6 00E+0 00E+0 00E+0 00E+0 0
Acidification of soil and water kg.eq.SO2 3.01E-1 2.64E-1 1.17E-2 4.93E-5 2.46E-2 1.22E-3 00E+0 00E+0 00E+0 2.46E-2 00E+0 00E+0 00E+0 00E+0 0
Water eutrophication kg.eq.P04 3- 4.33E-2 3.24E-2 2.75E-3 1.13E-4 7.6E-3 3.28E-4 00E+0 00E+0 00E+0 7.6E-3 00E+0 00E+0 00E+0 00E+0 0
Photochemical Ozone formation kg.eq.C2H4 2.57E-2 1.78E-2 1.62E-3 8.53E-5 6.06E-3 1.53E-4 00E+0 00E+0 00E+0 6.06E-3 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - elements kg.eq.Sb 8.62E-4 8.17E-4 8.99E-8 3.52E-10 4.52E-5 2.52E-8 00E+0 00E+0 00E+0 4.52E-5 00E+0 00E+0 00E+0 00E+0 0
Depletion of abiotic resources - fossil fuels MJ 6.9E+2 5.75E+2 4.03E+1 2.66E-2 6.93E+1 5.39E+0 00E+0 00E+0 00E+0 6.93E+1 00E+0 00E+0 00E+0 00E+0 0
Water pollution m³ 5.5E+3 4.14E+3 4.71E+2 1.55E+1 8.18E+2 5.7E+1 00E+0 00E+0 00E+0 8.19E+2 00E+0 00E+0 00E+0 00E+0 0
Air pollution m³ 9.53E+3 7.07E+3 3.74E+2 1.33E+0 2.02E+3 6.3E+1 00E+0 00E+0 00E+0 2.02E+3 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 8.28E+1 8.22E+1 4.23E-2 7.12E-4 5.89E-1 7.3E-3 00E+0 00E+0 00E+0 5.89E-1 00E+0 00E+0 00E+0 00E+0 0
Use of renewable primary energy resources used as raw materials MJ 3.93E+0 3.93E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 8.69E+1 8.63E+1 4.23E-2 7.12E-4 5.89E-1 7.3E-3 00E+0 00E+0 00E+0 5.89E-1 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.14E+3 1.02E+3 4.05E+1 4.93E-2 7.35E+1 7.26E+0 00E+0 00E+0 00E+0 7.35E+1 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable primary energy resources used as raw materials MJ 1.85E+1 1.82E+1 00E+0 00E+0 3.35E-1 00E+0 00E+0 00E+0 00E+0 3.35E-1 00E+0 00E+0 00E+0 00E+0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.16E+3 1.04E+3 4.05E+1 4.93E-2 7.39E+1 7.26E+0 00E+0 00E+0 00E+0 7.39E+1 00E+0 00E+0 00E+0 00E+0 0
Use of secondary materials kg 2.34E+0 2.34E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Net use of fresh water m³ 1.32E+1 1.32E+1 1.12E-3 4.93E-4 3.4E-2 8.85E-4 00E+0 00E+0 00E+0 3.4E-2 00E+0 00E+0 00E+0 00E+0 0
Hazardous waste disposed of kg 5.98E+1 3.03E+1 1.08E-3 7.03E-5 2.16E+1 7.9E+0 00E+0 00E+0 00E+0 2.16E+1 00E+0 00E+0 00E+0 00E+0 0
Non-hazardous waste disposed of kg 1E+2 9.82E+1 8.08E-2 2.25E-1 1.46E+0 6.22E-2 00E+0 00E+0 00E+0 1.46E+0 00E+0 00E+0 00E+0 00E+0 0
Radioactive waste disposed of kg 8.57E-2 8.35E-2 1.99E-4 1.52E-6 1.95E-3 4.32E-5 00E+0 00E+0 00E+0 1.95E-3 00E+0 00E+0 00E+0 00E+0 0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for recycling kg 6.04E+0 2.97E-1 00E+0 9E-1 00E+0 4.84E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Materials for energy recovery kg 5.02E-9 5.02E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 0
Total use of primary energy during the life cycle MJ 1.25E+3 1.12E+3 4.06E+1 4.97E-2 7.44E+1 7.26E+0 00E+0 00E+0 00E+0 7.44E+1 00E+0 00E+0 00E+0 00E+0 0
