ACOM-00085-V01.01 -EN -FR

General informations

Name of the PEP

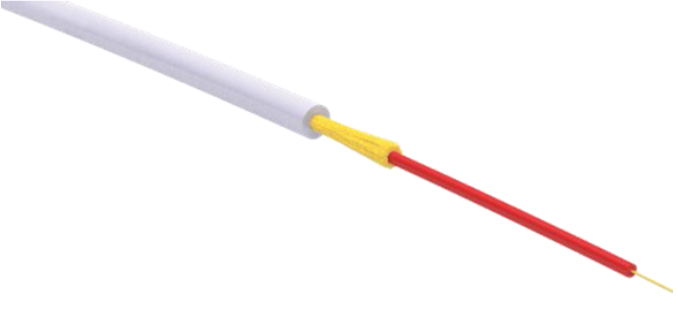

ACOPTIC - Gamme COR1823 - Câble de raccordement abonnés LSOH-FR extérieur/intérieur

Trademark / Owner

ACOPTIC

ACOME

Collective PEP

No

Product classification

• Wires and cables
• Power and Data transfer inside
• Copper and fiber optical communication cables

Date of publication

2023/06/01

Date of end of validity

2028/06/01

Date of verification

2023/07/29

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0001-ed4-2022 11 16

Use lifte time

20 years

Reference Product

COR1823 1FO C250

Energy model used

France 2018

Bill of material

Total mass

0.015 kg

Constitution

Plastic

87.60 %

0.01300 kg

Metal

0.20 %

0.00000 kg

Other

12.20 %

0.00200 kg

Homogeneous environmental family

Covered products by list

- COR1823

Covered products or brand by text

Produit de référence correspondant à l'ensemble de la Gamme COR1823

Functional unit impacts

Functional Unit

1 m

Description

Transmettre un signal de communication sur 1m, à la longueur d'onde de 1310nm pour une fibre optique monomode, pendant 20 années et à un taux d'utilisation de 100% en conformité avec les normes en vigueur comme indiqué sur la fiche produit

Extrapolation Rules

Produit de référence correspondant à l'ensemble de la Gamme COR1823

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	6.89E-2	3.95E-2	9.64E-4	5.32E-3	1.05E-6	2.31E-2	00E+0	00E+0	00E+0	00E+0	00E+0	1.05E-6	00E+0	00E+0
Climate change - fossil fuels	kg.eq.CO2	6.87E-2	3.93E-2	9.64E-4	5.3E-3	1.05E-6	2.31E-2	00E+0	00E+0	00E+0	00E+0	00E+0	1.05E-6	00E+0	00E+0
Climate change - biogenics	kg.eq.CO2	2.77E-4	2.64E-4	00E+0	1.32E-5	2.71E-9	-9.49E-11	00E+0	00E+0	00E+0	00E+0	00E+0	2.71E-9	00E+0	00E+0
Ozone depletion	kg.eq.CFC-11	9.38E-9	8.78E-9	1.48E-12	4.5E-10	1.55E-14	1.42E-10	00E+0	00E+0	00E+0	00E+0	00E+0	1.55E-14	00E+0	00E+0
Acidification (AP)	mole.eq.H+	3.28E-4	2.92E-4	6.1E-6	1.73E-5	6.1E-9	1.31E-5	00E+0	00E+0	00E+0	00E+0	00E+0	6.1E-9	00E+0	00E+0
Freshwater eutrophication	kg.eq.P	4.21E-7	1.69E-7	3.61E-10	2.95E-8	5.01E-11	2.22E-7	00E+0	00E+0	00E+0	00E+0	00E+0	5.01E-11	00E+0	00E+0
Marine aquatic eutrophication	kg.eq.N	5.02E-5	4.03E-5	2.86E-6	3.24E-6	8.39E-10	3.81E-6	00E+0	00E+0	00E+0	00E+0	00E+0	8.39E-10	00E+0	00E+0
Terrestrial eutrophication	mole.eq.N	5.51E-4	4.39E-4	3.14E-5	3.37E-5	1.21E-8	4.76E-5	00E+0	00E+0	00E+0	00E+0	00E+0	1.21E-8	00E+0	00E+0
Photochemical ozone formation	kg.eq.NMVOC	2.24E-4	1.92E-4	7.91E-6	1.3E-5	2.49E-9	1.15E-5	00E+0	00E+0	00E+0	00E+0	00E+0	2.49E-9	00E+0	00E+0
Depletion of abiotic resources - elements	kg.eq.Sb	5.44E-9	5.05E-9	3.79E-11	2.69E-10	4.98E-13	8.4E-11	00E+0	00E+0	00E+0	00E+0	00E+0	4.98E-13	00E+0	00E+0
Depletion of abiotic resources - fossil fuels	MJ	1.69E+0	1.56E+0	1.34E-2	8.33E-2	2.02E-4	3.43E-2	00E+0	00E+0	00E+0	00E+0	00E+0	2.02E-4	00E+0	00E+0
Water requirement	m³.eq.deprivation worldwide	1.31E-1	1.23E-1	3.66E-6	6.34E-3	7.63E-8	1.96E-3	00E+0	00E+0	00E+0	00E+0	00E+0	7.63E-8	00E+0	00E+0
Emission of fine particles	incidence of diseases	1.99E-9	1.74E-9	4.96E-11	1.04E-10	2.36E-13	8.84E-11	00E+0	00E+0	00E+0	00E+0	00E+0	2.36E-13	00E+0	00E+0
Ionizing radiation, human health	kBq.eq.U235	8.39E-2	7.96E-2	2.35E-6	4E-3	2.73E-5	2.72E-4	00E+0	00E+0	00E+0	00E+0	00E+0	2.73E-5	00E+0	00E+0
Ecotoxicity (fresh water)	CTUe	3.72E-1	3.27E-1	6.49E-4	2.37E-2	7.44E-6	2.07E-2	00E+0	00E+0	00E+0	00E+0	00E+0	7.44E-6	00E+0	00E+0
Human toxicity, carcinogenic effects	CTUh	3.24E-11	2.3E-11	1.69E-14	7.97E-12	1.76E-16	1.43E-12	00E+0	00E+0	00E+0	00E+0	00E+0	1.76E-16	00E+0	00E+0
Human toxicity, non-carcinogenic effects	CTUh	5.83E-10	5.23E-10	1.83E-12	3.22E-11	7.61E-15	2.65E-11	00E+0	00E+0	00E+0	00E+0	00E+0	7.61E-15	00E+0	00E+0
Impacts related to land use/soil quality	-	1.2E-3	1.14E-3	00E+0	5.7E-5	3.36E-8	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	3.36E-8	00E+0	00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	1.82E-2	1.54E-2	1.79E-5	2.4E-3	1.87E-5	3.37E-4	00E+0	00E+0	00E+0	00E+0	00E+0	1.87E-5	00E+0	00E+0
Use of renewable primary energy resources used as raw materials	MJ	3.16E-2	3.16E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	4.97E-2	4.7E-2	1.79E-5	2.4E-3	1.87E-5	3.37E-4	00E+0	00E+0	00E+0	00E+0	00E+0	1.87E-5	00E+0	00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.48E+0	1.34E+0	1.34E-2	8.33E-2	2.02E-4	3.43E-2	00E+0	00E+0	00E+0	00E+0	00E+0	2.02E-4	00E+0	00E+0
Use of non-renewable primary energy resources used as raw materials	MJ	2.12E-1	2.12E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.69E+0	1.56E+0	1.34E-2	8.33E-2	2.02E-4	3.43E-2	00E+0	00E+0	00E+0	00E+0	00E+0	2.02E-4	00E+0	00E+0
Net use of fresh water	m³	3.05E-3	2.85E-3	8.52E-8	1.48E-4	1.78E-9	4.56E-5	00E+0	00E+0	00E+0	00E+0	00E+0	1.78E-9	00E+0	00E+0
Total use of primary energy during the life cycle	MJ	1.74E+0	1.6E+0	1.35E-2	8.57E-2	2.21E-4	3.46E-2	00E+0	00E+0	00E+0	00E+0	00E+0	2.21E-4	00E+0	00E+0
Hazardous waste disposed of	kg	1.51E-2	1.1E-3	00E+0	7.18E-4	1.57E-8	1.32E-2	00E+0	00E+0	00E+0	00E+0	00E+0	1.57E-8	00E+0	00E+0
Non-hazardous waste disposed of	kg	2.76E-2	9.79E-3	3.38E-5	3.26E-3	1.01E-7	1.45E-2	00E+0	00E+0	00E+0	00E+0	00E+0	1.01E-7	00E+0	00E+0
Radioactive waste disposed of	kg	2.77E-6	2.01E-6	2.41E-8	1.71E-7	4.26E-11	5.68E-7	00E+0	00E+0	00E+0	00E+0	00E+0	4.26E-11	00E+0	00E+0
Materials for energy recovery	kg	8.57E-4	00E+0	00E+0	8.41E-4	00E+0	1.63E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Exported energy	MJ by energy vector	7.54E-4	2.11E-5	00E+0	7.32E-4	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
