SPRE-00004-V01.01

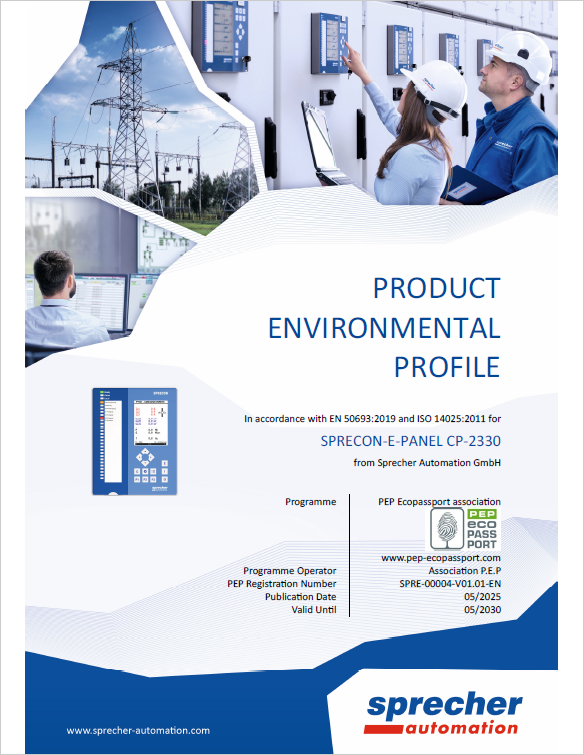

Download the PEP PDF
Name of the PEP
SPRECON-E-PANEL CP-2330
Trademark / Owner
SPRECHER AUTOMATION
SPRECHER AUTOMATION
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Miscellenaeous
Date of publication
2025/05/01
Date of end of validity
2030/05/01
Date of verification
2025/07/13
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0005-ed3.1-2023 12 08
Use life time
10 years
Reference Product
CP-2330
Energy model used
Germany
Total mass
0.54 kg
Constitution
Plastic
28.60 %
0.14800 kg
Metal
46.20 %
0.23800 kg
Other
25.20 %
0.13000 kg
Covered products by list
- CP-2330
Functional Unit
1 unit
Description
Optional alarm panel for the SPRECON-E multifunctional automation platform and protection devices, during a service life of 10 years and with a use rate of 100%.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 4.48E+1 1.11E+1 1.27E-1 9.01E-3 3.33E+1 2.13E-1 0 9.94E-3 0 0 0 3.33E+1 0 -0.23E+0
Climate change - fossil fuels kg.eq.CO2 4.42E+1 1.11E+1 1.27E-1 9E-3 3.28E+1 2.13E-1 0 9.8E-3 0 0 0 3.28E+1 0 -0.23E+0
Climate change - biogenics kg.eq.CO2 4.71E-1 4.19E-2 3.72E-5 1.91E-6 4.29E-1 1.01E-4 0 1.28E-4 0 0 0 4.29E-1 0 -5.52E-6
Climate change - land use and land use transformation kg.eq.CO2 7.39E-2 1.89E-2 6.29E-5 2.37E-6 5.48E-2 1.06E-4 0 1.63E-5 0 0 0 5.48E-2 0 -4.31E-5
Ozone depletion kg.eq.CFC-11 7.61E-7 3.74E-7 2.77E-9 1.07E-10 3.81E-7 2.93E-9 0 1.14E-10 0 0 0 3.81E-7 0 -6.01E-9
Acidification (AP) mole.eq.H+ 1.75E-1 7.87E-2 2.79E-4 1.26E-5 9.55E-2 4.17E-4 0 2.85E-5 0 0 0 9.54E-2 0 -0E+0
Freshwater eutrophication kg.eq.P 5.98E-3 9.97E-4 1.03E-6 4.19E-8 4.98E-3 2.35E-6 0 1.48E-6 0 0 0 4.97E-3 0 -1.21E-5
Marine aquatic eutrophication kg.eq.N 3.05E-2 1.52E-2 6.87E-5 3.66E-6 1.51E-2 1.01E-4 0 4.49E-6 0 0 0 1.51E-2 0 -0E+0
Terrestrial eutrophication mole.eq.N 3.42E-1 1.51E-1 7.15E-4 3.8E-5 1.9E-1 1.09E-3 0 5.67E-5 0 0 0 1.9E-1 0 -0E+0
Photochemical ozone formation kg.eq.NMVOC 1.11E-1 5.6E-2 4.33E-4 1.85E-5 5.41E-2 4.84E-4 0 1.62E-5 0 0 0 5.41E-2 0 -0E+0
Depletion of abiotic resources - elements kg.eq.Sb 6.43E+2 1.48E+2 1.81E+0 6.6E-2 4.91E+2 1.82E+0 0 1.47E-1 0 0 0 4.91E+2 0 -2.43E+0
Depletion of abiotic resources - fossil fuels MJ 1.88E-3 1.51E-3 4.16E-7 1.5E-8 3.65E-4 5.71E-7 0 1.09E-7 0 0 0 3.65E-4 0 -4.11E-8
Water requirement m³.eq.deprivation worldwide 4.66E+0 2.19E+0 7.46E-3 6.43E-4 2.44E+0 1.64E-2 0 7.29E-4 0 0 0 2.44E+0 0 -0E+0
Emission of fine particles incidence of diseases 1.1E-6 6.47E-7 9.45E-9 3.57E-10 4.31E-7 9.13E-9 0 1.28E-10 0 0 0 4.3E-7 0 -1.28E-8
Ionizing radiation, human health kBq.eq.U235 2.24E+0 4.17E-1 9.17E-4 3.37E-5 1.82E+0 2.15E-3 0 5.44E-4 0 0 0 1.82E+0 0 5.34E-4
Ecotoxicity (fresh water) CTUe 3.05E+2 1.68E+2 8.95E-1 5.01E-2 1.35E+2 1.43E+0 0 4.04E-2 0 0 0 1.35E+2 0 -0.53E+0
Human toxicity, carcinogenic effects CTUh 3.13E-8 1.9E-8 5.81E-11 3.32E-12 1.21E-8 7.7E-11 0 3.61E-12 0 0 0 1.21E-8 0 -9.52E-10
Human toxicity, non-carcinogenic effects CTUh 1.29E-6 7.69E-7 1.28E-9 8.88E-11 5.18E-7 2.84E-9 0 1.55E-10 0 0 0 5.18E-7 0 -3.95E-10
Impacts related to land use/soil quality - 1.88E+2 6.5E+1 1.09E+0 4.12E-2 1.21E+2 1.07E+0 0 3.6E-2 0 0 0 1.21E+2 0 -0.32E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 1.3E+2 7.5E+0 1.3E-2 4.95E-4 1.22E+2 3.13E-2 0 3.65E-2 0 0 0 1.22E+2 0 1.47E-2
Use of renewable primary energy resources used as raw materials MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.3E+2 7.5E+0 1.3E-2 4.95E-4 1.22E+2 3.13E-2 0 3.65E-2 0 0 0 1.22E+2 0 1.47E-2
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 6.83E+2 1.53E+2 1.92E+0 7.02E-2 5.26E+2 1.94E+0 0 1.57E-1 0 0 0 5.26E+2 0 -2.56E+0
Use of non-renewable primary energy resources used as raw materials MJ 5.27E+0 5.27E+0 0 0 0 0 0 0 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.89E+2 1.58E+2 1.92E+0 7.02E-2 5.26E+2 1.94E+0 0 1.57E-1 0 0 0 5.26E+2 0 -2.56E+0
Use of secondary materials kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 3.24E-1 7.94E-2 2.61E-4 1.97E-5 2.44E-1 6.35E-4 0 7.28E-5 0 0 0 2.44E-1 0 2.56E-4
Total use of primary energy during the life cycle MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Hazardous waste disposed of kg 3.25E-3 7.5E-4 0 0 0 2.5E-3 0 0 0 0 0 0 0 0
Non-hazardous waste disposed of kg 3.87E-1 1.06E-1 1.91E-6 1.43E-2 5.81E-4 2.65E-1 0 1.73E-7 0 0 0 5.81E-4 0 1.8E-2
Radioactive waste disposed of kg 1.75E-9 1.75E-9 0 0 0 0 0 0 0 0 0 0 0 0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 3.83E-1 1.25E-1 0 9.75E-3 0 2.48E-1 0 0 0 0 0 0 0 0
Materials for energy recovery kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
