ACOM-00079-V01.01

Download the PEP PDF
Name of the PEP
Câble ACOPTIC FTTH UND1534 12FO - N9298
Trademark / Owner
ACOPTIC
ACOME
Collective PEP
No
Product classification
  • Wires and cables
  • Power and Data transfer inside
  • Copper and fiber optical communication cables
Date of publication
2021/01/16
Date of end of validity
2026/01/16
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0001-ed3-2015 10 16
Use lifte time
20 years
Reference Product
Câble aérien de distribution - 12FO - N9298
Energy model used
France 2008
Total mass
74.3 g/m

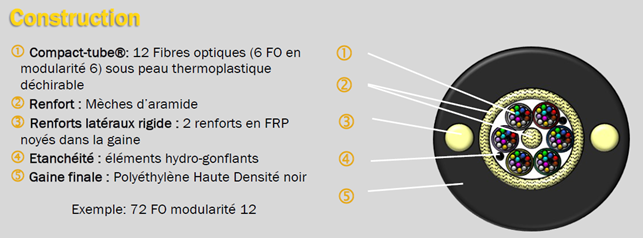

Constitution
Plastic
52.80 %
Metal
0.00 %
Other
47.20 %
Comments
Ce produit ne contient pas de substances interdites par la réglementation en vigueur lors de sa mise sur le marché en dehors des opérations de maintenance effectuées lors de la phase d’utilisation. Estimation de l’emploi de matériaux recyclés : 0.2% en masse.
Functional Unit
1 m
Description
« Transmettre un signal de communication sur 1 mètre selon le protocole 10GBASE-LR, à 1310nm, pendant 20 années et à un taux d'utilisation de 100% en conformité avec les normes en vigueur. »
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 2.79E-1 2.02E-1 3.7E-3 2.2E-2 2.06E-5 5.12E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 2.94E-8 2.67E-8 7.5E-12 6.4E-10 2.94E-11 2.02E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 4.7E-4 3.98E-4 1.66E-5 1.37E-5 7.65E-8 4.22E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 1.57E-4 8.95E-5 3.82E-6 2.69E-5 6.98E-9 3.67E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 6.28E-5 5.24E-5 1.18E-6 4.91E-6 4.43E-9 4.29E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 7.57E-6 7.57E-6 1.48E-10 4.19E-10 1E-11 1.27E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 1.44E+0 1.2E+0 5.2E-2 3.97E-2 2.37E-4 1.49E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 7.8E+1 1.93E+1 6.09E-1 2.4E+0 1.04E-3 5.57E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 3.12E+1 2.83E+1 1.52E-1 9.28E-1 6.86E-4 1.77E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 9.5E-2 9.21E-2 6.97E-5 9.01E-4 1.36E-4 1.76E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 3.19E-1 3.19E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.14E-1 4.11E-1 6.97E-5 9.01E-4 1.36E-4 1.76E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 2.86E+0 2.48E+0 5.23E-2 6.86E-2 1.74E-3 2.54E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 1.66E+0 1.61E+0 00E+0 4.8E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.52E+0 4.09E+0 5.23E-2 1.17E-1 1.74E-3 2.54E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 1.48E-4 1.48E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 2.37E-1 2.3E-1 3.31E-7 6.9E-3 4.87E-4 4.89E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 6.54E-1 6E-1 00E+0 1.61E-3 3.88E-8 5.17E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 1.2E-1 4.93E-2 1.31E-4 1.27E-2 4.21E-5 5.75E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 3.14E-4 3.02E-4 9.36E-8 7.64E-6 6.21E-7 3.02E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 9.52E-3 00E+0 00E+0 9.52E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 9.27E-3 00E+0 00E+0 9.27E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 4.93E+0 4.5E+0 5.23E-2 1.18E-1 1.88E-3 2.55E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
