EATO-00117-V01.02

Download the PEP PDF
Name of the PEP

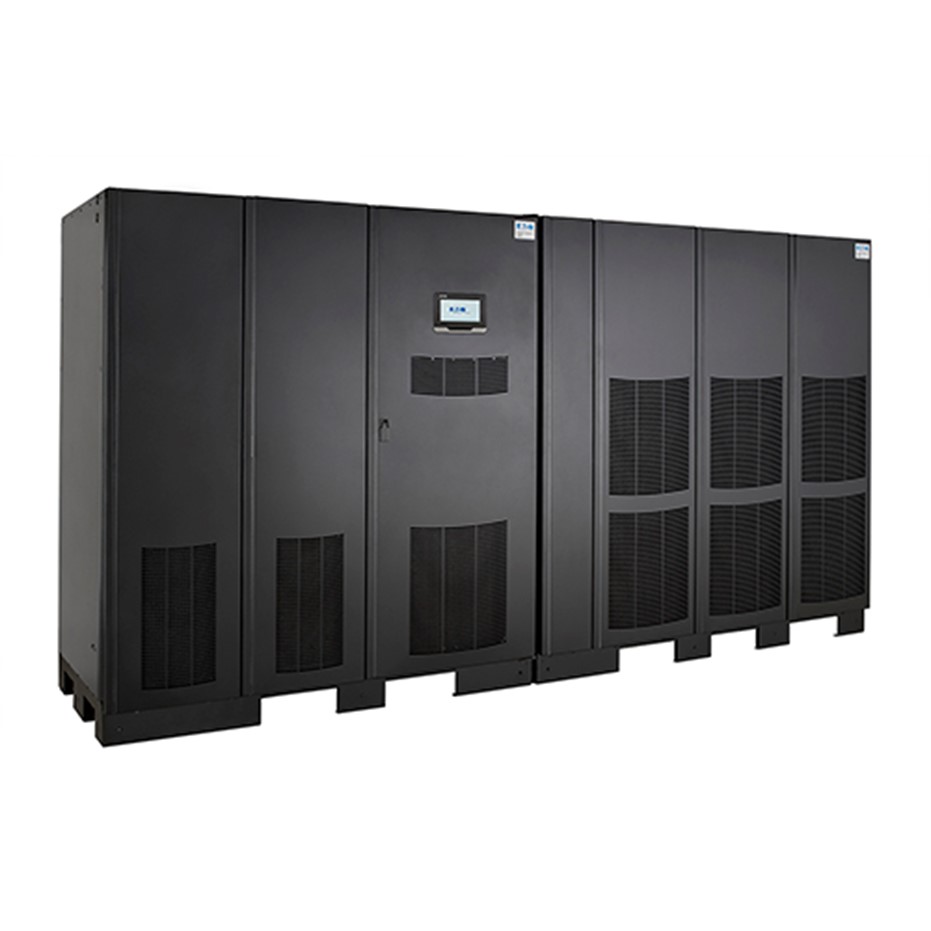

Power Xpert 9395P High Performance UPS (1200 kVA / 1200 kW)
Trademark / Owner
EATON
EATON CORPORATION PLC
Collective PEP
No
Product classification
  • Electric engineering, automation, process control engineering
  • Power supply
  • Uninterruptible Power Systems
  • UPS - VFI > 10kW (Online double conversion)
Date of publication
2024/02/01
Date of end of validity
2029/02/01
Date of verification
2024/04/17
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0010-ed1.1-2015 10 16
Use lifte time
15 years
Reference Product
9395P 1200kVA (FV1430621001003000)
Energy model used
Finland, China, Europe
Total mass
3290 kg
Constitution
Plastic
18.67 %
0.00000 kg
Metal
57.19 %
0.00000 kg
Other
24.14 %
0.00000 kg
Covered products by list
- 9395P-1200(1200)-PF1, 9395P-1200(1200)-PF1-HS, 9395P-1200(1200)-PF1-SB, 9395P-1200(1200)-PF1-SB-HS, 9395P-1000(1200), 9395P-1000(1200)-HS, 9395P-1200(1200), 9395P-1200(1200)-HS, 9395P-1200(1200)-SB, 9395P-1200(1200)-SB-HS
Covered products or brand by text
The PEP concerns product offerings from 9395P UPS series as mentioned below: • Eaton 9395PM 1200 kW (PF 1.0) range: 9395P-1200(1200)-PF1, 9395P-1200(1200)-PF1-HS, 9395P-1200(1200)-PF1-SB, 9395P-1200(1200)-PF1-SB-HS • Eaton 9395PM 1200 kW (PF 0.92) range: 9395P-1000(1200), 9395P-1000(1200)-HS, 9395P-1200(1200), 9395P-1200(1200)-HS, 9395P-1200(1200)-SB, 9395P-1200(1200)-SB-HS
Functional Unit
1 unit
Description
To protect the load of 1200,000 Watts (1200 kVA) against input power failure for 15 years and switch to the energy storage system to avoid power outage. *Note: The below mentioned results are for 9395P 1200kVA Double conversion mode. Please refer PEP to check Energy Saver System mode results
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 1.32E+6 3.7E+4 7.59E+2 2.13E+2 1.28E+6 5.15E+3 0 6.05E+2 0 0 0 1.28E+6 0 0
Climate change - fossil fuels kg.eq.CO2 1.32E+6 3.67E+4 7.59E+2 2.12E+2 1.28E+6 5.1E+3 0 6.04E+2 0 0 0 1.28E+6 0 0
Climate change - biogenics kg.eq.CO2 2.07E+3 3.07E+2 0 1.15E+0 1.71E+3 5.6E+1 0 1.44E+0 0 0 0 1.71E+3 0 0
Climate change - land use and land use transformation kg.eq.CO2 1.7E-3 6.98E-4 0 0 5.63E-7 1E-3 0 5.63E-7 0 0 0 0 0 0
Ozone depletion kg.eq.CFC-11 1.12E-2 5.37E-3 1.16E-6 2.25E-5 5.56E-3 2.12E-4 0 8.89E-5 0 0 0 5.48E-3 0 0
Acidification (AP) mole.eq.H+ 7.66E+3 3.23E+2 4.8E+0 2.77E-1 7.31E+3 2.48E+1 0 4.77E+0 0 0 0 7.31E+3 0 0
Freshwater eutrophication kg.eq.P 6.55E+0 1.4E+0 2.84E-4 9.16E-4 3.51E+0 1.64E+0 0 1.08E-3 0 0 0 3.51E+0 0 0
Marine aquatic eutrophication kg.eq.N 8.68E+2 3.04E+1 2.25E+0 1.78E-1 8.31E+2 4.67E+0 0 5.51E-1 0 0 0 8.3E+2 0 0
Terrestrial eutrophication mole.eq.N 1.29E+4 3.31E+2 2.47E+1 1.08E+0 1.25E+4 4.27E+1 0 5.3E+0 0 0 0 1.25E+4 0 0
Photochemical ozone formation kg.eq.NMVOC 2.81E+3 1.18E+2 6.23E+0 3.83E-1 2.67E+3 1.37E+1 0 1.85E+0 0 0 0 2.67E+3 0 0
Depletion of abiotic resources - elements kg.eq.Sb 4.92E+0 4.71E+0 2.99E-5 1.14E-6 1.55E-1 5.2E-2 0 6.24E-2 0 0 0 9.28E-2 0 0
Depletion of abiotic resources - fossil fuels MJ 3.36E+7 7.16E+5 1.06E+4 7.03E+2 3.26E+7 2.6E+5 0 8.99E+3 0 0 0 3.26E+7 0 0
Water requirement m³.eq.deprivation worldwide 9.36E+4 1.33E+4 2.88E+0 1.11E+1 4.64E+4 3.38E+4 0 1.1E+3 0 0 0 4.53E+4 0 0
Emission of fine particles incidence of diseases 6.02E-2 3.29E-3 3.91E-5 1.29E-6 5.67E-2 1.4E-4 0 2.59E-5 0 0 0 5.67E-2 0 0
Ionizing radiation, human health kBq.eq.U235 3.87E+6 1.93E+6 1.85E+0 4.11E+0 1.94E+6 3.13E+3 0 3.37E+4 0 0 0 1.9E+6 0 0
Ecotoxicity (fresh water) CTUe 1.93E+7 5.13E+6 5.11E+2 1.1E+3 1.38E+7 3.18E+5 0 1.32E+4 0 0 0 1.38E+7 0 0
Human toxicity, carcinogenic effects CTUh 1.37E-2 1.31E-2 1.33E-8 3.32E-6 1.52E-4 5.06E-4 0 2.25E-6 0 0 0 1.49E-4 0 0
Human toxicity, non-carcinogenic effects CTUh 1.01E-2 3.93E-3 1.44E-6 1.52E-6 5.95E-3 2.17E-4 0 2.54E-5 0 0 0 5.92E-3 0 0
Impacts related to land use/soil quality - 3.43E+4 3.82E+3 0 6.62E-2 2.55E+4 5.03E+3 0 1.16E+1 0 0 0 2.55E+4 0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 6.28E+6 1.28E+4 1.41E+1 3.38E+1 6.26E+6 1.77E+3 0 2.08E+2 0 0 0 6.26E+6 0 0
Use of renewable primary energy resources used as raw materials MJ 3.8E+3 3.8E+3 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.28E+6 1.66E+4 1.41E+1 3.38E+1 6.26E+6 1.77E+3 0 2.08E+2 0 0 0 6.26E+6 0 0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 3.36E+7 6.88E+5 1.06E+4 7.03E+2 3.26E+7 2.6E+5 0 8.83E+3 0 0 0 3.26E+7 0 0
Use of non-renewable primary energy resources used as raw materials MJ 2.84E+4 2.82E+4 0 0 1.64E+2 0 0 1.64E+2 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.36E+7 7.16E+5 1.06E+4 7.03E+2 3.26E+7 2.6E+5 0 8.99E+3 0 0 0 3.26E+7 0 0
Use of secondary materials kg 6.66E+1 6.66E+1 0 0 5.35E-3 0 0 5.35E-3 0 0 0 0 0 0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 2.38E+3 3.1E+2 6.71E-2 2.58E-1 1.08E+3 9.9E+2 0 2.84E+1 0 0 0 1.05E+3 0 0
Total use of primary energy during the life cycle MJ 3.99E+7 7.33E+5 1.06E+4 7.36E+2 3.89E+7 2.62E+5 0 9.2E+3 0 0 0 3.89E+7 0 0
Hazardous waste disposed of kg 1.81E+5 1.53E+5 0 7.07E-1 2.45E+4 4.08E+3 0 5.45E+2 0 0 0 2.39E+4 0 0
Non-hazardous waste disposed of kg 2E+5 1.37E+4 2.66E+1 1.72E+2 1.84E+5 1.31E+3 0 1.02E+2 0 0 0 1.84E+5 0 0
Radioactive waste disposed of kg 4.49E+1 5.42E+0 1.9E-2 8.97E-3 3.86E+1 8.8E-1 0 4.64E-2 0 0 0 3.86E+1 0 0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 2.95E+3 8.48E+2 0 0 7.89E-1 2.1E+3 0 7.89E-1 0 0 0 0 0 0
Materials for energy recovery kg 9.37E+1 9.61E+0 0 7.42E+1 1.63E-1 9.68E+0 0 1.63E-1 0 0 0 0 0 0
Exported energy MJ by energy vector 6.69E+1 0 0 6.38E+1 0 3.04E+0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 1.27E+0 1.27E+0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 6.6E+1 6.6E+1 0 0 0 0 0 0 0 0 0 0 0 0
