ACOM-00074-V01.01

Download the PEP PDF
Name of the PEP

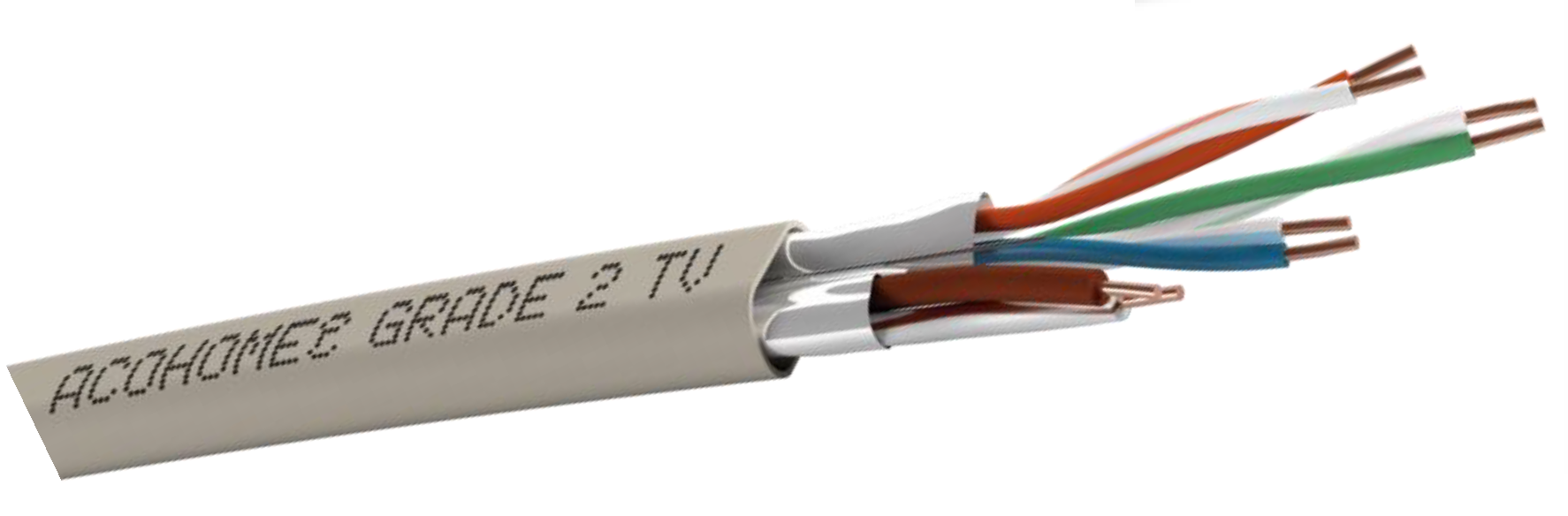

Câbles Grade 2 TV et Grade 3 TV - 4P LSOH-FR
Trademark / Owner
ACOME
ACOME
Collective PEP
No
Product classification
  • Wires and cables
  • Power and Data transfer inside
  • Copper and fiber optical communication cables
Date of publication
2019/01/22
Date of end of validity
2024/01/22
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0001-ed3-2015 10 16
Use lifte time
10 years
Reference Product
Grade 2 TV R7800
Energy model used
France 2008
Total mass
52.56 g
Constitution
Plastic
47.60 %
Metal
40.10 %
Other
12.30 %
Comments
Ce produit ne contient pas de substances interdites par la réglementation en vigueur lors de sa mise sur le marché en dehors des opérations de maintenance effectuées lors de la phase d’utilisation. Estimation de l’emploi de matériaux recyclés : 10,1% en masse.
Covered products or brand by text
Famille environnementale homogène : GRADE 3 TV R7900
Functional Unit
1 m
Description
« Transmettre un signal de communication sur 1 mètre selon le protocole Ethernet 1Gb, catégorie 6, pendant 10 années et à un taux d'utilisation de 17% en conformité avec les normes en vigueur. »
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 2.19E-1 1.6E-1 2.61E-3 9.84E-3 1.83E-3 4.48E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 6.09E-8 5.49E-8 5.29E-12 1.63E-9 2.62E-9 1.77E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 5.54E-4 4.86E-4 1.17E-5 1.63E-5 6.81E-6 3.33E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 1.21E-4 8.53E-5 2.7E-6 9.05E-6 6.21E-7 2.33E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 4.56E-5 3.88E-5 8.34E-7 2.1E-6 3.94E-7 3.47E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 2.35E-5 2.28E-5 1.04E-10 6.58E-7 8.93E-10 1.03E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 2.78E+0 2.46E+0 3.67E-2 8.16E-2 2.1E-2 1.81E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 6.98E+1 1.7E+1 4.29E-1 2.03E+0 9.27E-2 5.03E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 1.01E+2 9.62E+1 1.07E-1 2.96E+0 6.1E-2 1.35E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 2.57E-1 2.37E-1 4.92E-5 6.64E-3 1.21E-2 9.22E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 5.04E-2 5.04E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.07E-1 2.88E-1 4.92E-5 6.64E-3 1.21E-2 9.22E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 4.48E+0 3.95E+0 3.69E-2 1.24E-1 1.55E-1 2.17E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 5.41E-1 5.25E-1 00E+0 1.57E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 5.02E+0 4.47E+0 3.69E-2 1.4E-1 1.55E-1 2.17E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 5.49E-3 5.41E-3 00E+0 8.53E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 5.02E-1 4.45E-1 2.34E-7 1.34E-2 4.34E-2 4.21E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 2.16E+0 2.06E+0 00E+0 6.09E-2 3.45E-6 4.68E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 2.01E-1 1.61E-1 9.28E-5 7.97E-3 3.75E-3 2.85E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 7.21E-4 6.45E-4 6.61E-8 1.91E-5 5.53E-5 1.95E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 2.54E-2 7.28E-4 00E+0 3.61E-3 00E+0 2.11E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 2.34E-3 00E+0 00E+0 2.34E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 5.33E+0 4.76E+0 3.69E-2 1.47E-1 1.67E-1 2.18E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Functional Unit
1 m
Description
Grade 3 TV R7900
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 2.7E-1 2E-1 3E-3 1.12E-2 2.21E-3 5.27E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 7.28E-8 6.56E-8 6.08E-12 1.97E-9 3.16E-9 2.08E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 7.68E-4 6.85E-4 1.35E-5 2.24E-5 8.21E-6 3.88E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 1.41E-4 1.01E-4 3.1E-6 9.51E-6 7.49E-7 2.66E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 5.85E-5 5.06E-5 9.59E-7 2.46E-6 4.75E-7 4.05E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 2.85E-5 2.77E-5 1.2E-10 8.01E-7 1.08E-9 1.2E-9 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 3.36E+0 2.98E+0 4.22E-2 9.81E-2 2.54E-2 2.11E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 8.35E+1 2.12E+1 4.94E-1 2.42E+0 1.12E-1 5.93E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 1.21E+2 1.16E+2 1.23E-1 3.55E+0 7.36E-2 1.57E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 3.05E-1 2.81E-1 5.66E-5 8.16E-3 1.46E-2 1.03E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 4.96E-2 4.96E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.55E-1 3.31E-1 5.66E-5 8.16E-3 1.46E-2 1.03E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 5.25E+0 4.62E+0 4.24E-2 1.45E-1 1.87E-1 2.55E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 6.2E-1 6.02E-1 00E+0 1.8E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 5.87E+0 5.22E+0 4.24E-2 1.63E-1 1.87E-1 2.55E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 5.66E-3 5.55E-3 00E+0 1.02E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 5.52E-1 4.85E-1 2.69E-7 1.46E-2 5.23E-2 4.95E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 2.58E+0 2.45E+0 00E+0 7.27E-2 4.16E-6 5.51E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 2.8E-1 2.34E-1 1.07E-4 1.02E-2 4.52E-3 3.16E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 8.41E-4 7.5E-4 7.6E-8 2.22E-5 6.67E-5 2.23E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 3.13E-2 1.09E-3 00E+0 3.46E-3 00E+0 2.67E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 2.29E-3 00E+0 00E+0 2.29E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 6.23E+0 5.56E+0 4.25E-2 1.72E-1 2.01E-1 2.56E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
