ABBG-00319-V01.01

Download the PEP PDF
Name of the PEP

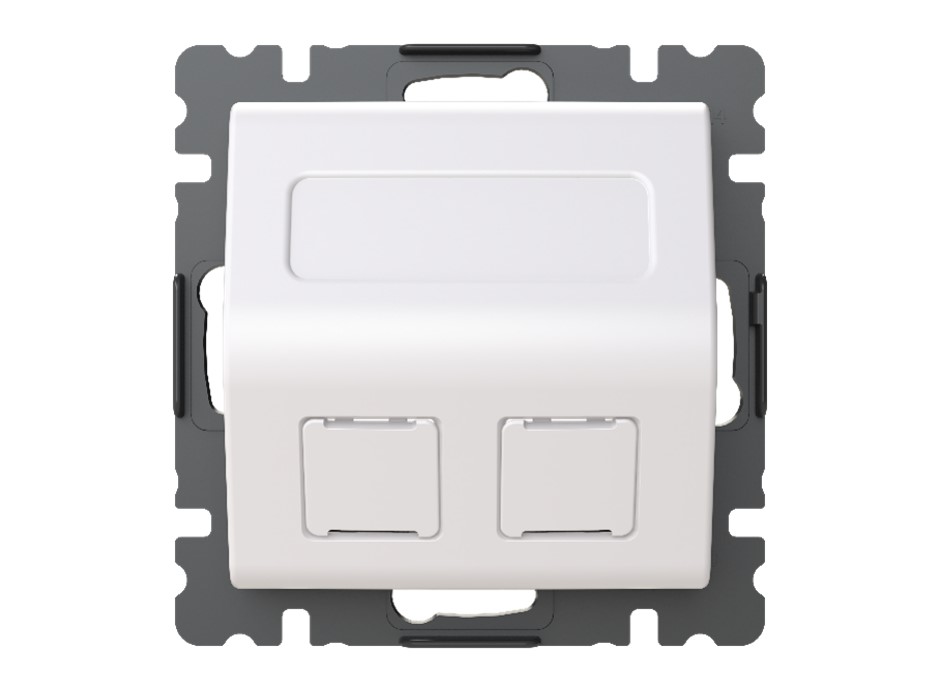

RJ45 outlets
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Wall mounted swithgear and controlgear
  • Plugs and socket outlets
  • RJ sockets for data communication
Geographical validity area
europe / FIN / SWE
Date of publication
2023/07/01
Date of end of validity
2028/07/01
Date of verification
2023/10/27
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0005-ed3-2023 06 06
Use lifte time
20 years
Reference Product
2TKA00004961
Energy model used
Manufacturing: Lithuania and Czech Republic national electric mix Installation: Based on sales mix (see geographical representativeness) Use: - End of life: Based on sales mix (see geographical representativeness)
Total mass
0.038 kg
Constitution
Plastic
28.20 %
0.02700 kg
Metal
0.00 %
0.00000 kg
Other
71.80 %
0.01100 kg
Comments
The reference product and other products in this range are in conformity with the provisions of Low Voltage Directive 2014/35/EU, and national legislation. Plastic used for the reference product are halogen-free materials (IEC/61249-2-21) and they are also recyclable. The sustainable PC is derived from biowaste and residual materials like vegetable oil residue.
Covered products by list
- 2TKA00004983
- 2TKA00005228
- 2TKA00005229
- 2TKA00005230
- 2TKA00005231
- 2TKA00005232
- 2TKA00004985
- 2TKA00005204
- 2TKA00004961
Functional Unit
1 unit
Description
Protect persons during 20 years against direct contact with liveparts and allow grouping monitoring, control, and protectiondevices in a single enclosure or a cabinet having the followingdimensions (71 mm x 71 mm x 38 mm)
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 2.4E-1 2.25E-1 9.53E-4 1.65E-3 00E+0 1.29E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.02E+0
Climate change - fossil fuels kg.eq.CO2 2.34E-1 2.19E-1 9.51E-4 1.45E-3 00E+0 1.29E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.03E+0
Climate change - biogenics kg.eq.CO2 4.94E-3 4.76E-3 8.11E-7 2.02E-4 00E+0 -2.48E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 4.82E-3
Climate change - land use and land use transformation kg.eq.CO2 2.31E-4 2.23E-4 3.85E-7 7.81E-7 00E+0 7.06E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 1.74E-5
Ozone depletion kg.eq.CFC-11 1.21E-8 1.09E-8 2.2E-10 1.71E-10 00E+0 8.17E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 4.88E-10
Acidification (AP) mole.eq.H+ 1.32E-3 1.28E-3 2.95E-6 5.04E-6 00E+0 2.92E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0E+0
Freshwater eutrophication kg.eq.P 2.2E-4 2.19E-4 6.21E-8 1.24E-7 00E+0 1.2E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -3.07E-7
Marine aquatic eutrophication kg.eq.N 2.45E-4 2.33E-4 6.06E-7 1.8E-6 00E+0 9.32E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -1.3E-5
Terrestrial eutrophication mole.eq.N 2.4E-3 2.29E-3 6.62E-6 1.78E-5 00E+0 8.9E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0E+0
Photochemical ozone formation kg.eq.NMVOC 6.37E-4 6.08E-4 1.71E-6 4.34E-6 00E+0 2.29E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -7.89E-5
Depletion of abiotic resources - elements kg.eq.Sb 3.62E-7 3E-7 3.36E-9 7.12E-9 00E+0 5.12E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -2.02E-8
Depletion of abiotic resources - fossil fuels MJ 3.72E+0 3.59E+0 1.44E-2 1.48E-2 00E+0 1.05E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.65E+0
Water requirement m³.eq.deprivation worldwide 9.13E-2 8.9E-2 4.34E-5 1.63E-4 00E+0 2.14E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.01E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 2.78E-1 2.72E-1 2.05E-4 5.79E-4 00E+0 5.06E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.01E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 2.78E-1 2.72E-1 2.05E-4 5.79E-4 00E+0 5.06E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.01E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 9.78E-5 8.71E-5 6.12E-7 9.01E-7 00E+0 9.16E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 4.42E-5
Use of non-renewable primary energy resources used as raw materials MJ 4.01E+0 3.87E+0 1.53E-2 1.57E-2 00E+0 1.12E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.7E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.01E+0 3.87E+0 1.53E-2 1.57E-2 00E+0 1.12E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0.7E+0
Net use of fresh water m³ 2.51E-3 2.44E-3 1.73E-6 5.13E-6 00E+0 5.92E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -0E+0
Hazardous waste disposed of kg 2.1E-6 1.85E-6 3.74E-8 3.54E-8 00E+0 1.8E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 7.41E-8
Non-hazardous waste disposed of kg 3.98E-2 1.66E-2 7.48E-4 7.36E-3 00E+0 1.51E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 5.4E-4
Radioactive waste disposed of kg 8.39E-6 7.78E-6 9.73E-8 8.58E-8 00E+0 4.27E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 -6.55E-7
Materials for recycling kg 1.69E-2 00E+0 00E+0 6.76E-3 00E+0 1.01E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
