ABBG-00001-V01.01

Download the PEP PDF Extrapolation Rules
Name of the PEP

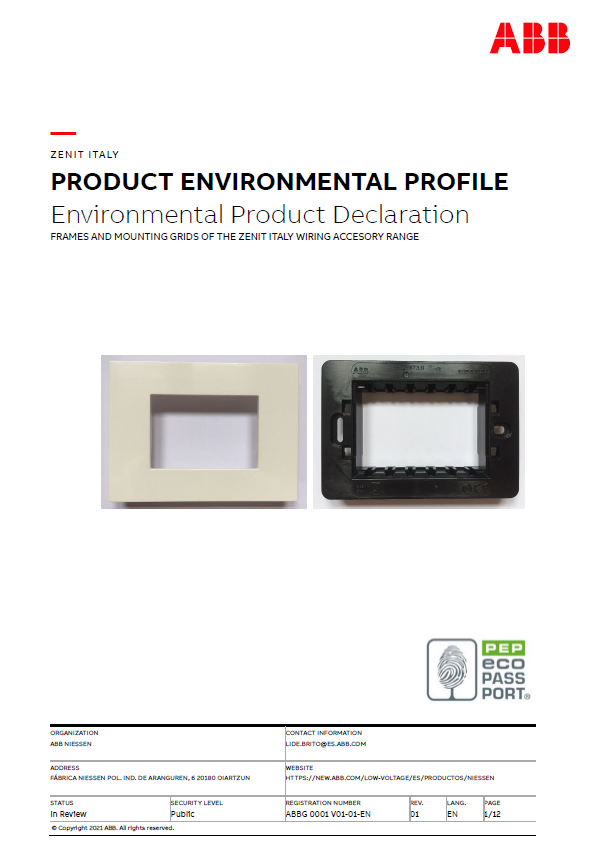

FRAMES AND MOUNTING GRIDS OF THE ZENIT ITALY WIRING ACCESORY RANGE
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Enclosures
  • Cabinets
  • Accessories for cabinet
Date of publication
2021/04/27
Date of end of validity
2026/04/27
PCR
PEP-PCR-ed3-2015 04 02
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product
Z2373.1 for the frame and Z2373.9 for the mounting grid
Energy model used
Europe
Total mass
34.8 g
Constitution
Plastic
58.80 %
Metal
3.00 %
Other
38.20 %
Comments
FU: 34.8g only the system including the frame and the mount-ing grid Reference product mass with packaging: 56.71g including the whole system of frame and mounting grid, its packaging and additional elements and accessories
Functional Unit
34 g
Description
Protect persons during 20 years against direct contact with live parts and allow control de-vices in a single enclosure having the following dimensions for the frame 86 x 118 x 4mm, and for the mounting grid 70 x 102 x 19 mm.
Extrapolation Rules
Extrapolation rules are necessary so that a lifecycle assessment of a family-product can be made. Thus, an environmental weighting factor is applied to all the capacities covered by the same product range, ZENIT ITALY. These weighting factors of extrapolation rules are given at the scale of the functional unit. To extrapolate the product under consideration and calculate the value of each impact-cate-gory for each lifecycle stage, the value of the impact category of the reference product must be multiplied by its extrapolation coefficient. Coef mass(n)=m(i)/m(ref) Where “m” means mass and “i” the nominal current value. The “ref” corresponds to the refer-ence product. The “n” refers to either the mass of the product and the corresponding screws, the mass of the packaging, or the addition of both. Extrapolation rule file attached.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7
Global warming kg.eq.CO2 3.74E-1 3.65E-1 2.82E-3 1.26E-3 00E+0 4.28E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 8.06E-9 7.94E-9 5.72E-12 8.57E-12 00E+0 1.07E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification of soil and water kg.eq.SO2 1.42E-3 1.38E-3 1.27E-5 6.16E-6 00E+0 1.64E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water eutrophication kg.eq.P04 3- 2.9E-4 2.61E-4 2.9E-6 6.62E-6 00E+0 1.87E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical Ozone formation kg.eq.C2H4 9.06E-5 8.8E-5 9.01E-7 4.34E-7 00E+0 1.28E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 1.59E-6 1.59E-6 1.12E-10 5.38E-11 00E+0 2.64E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 5.26E+0 5.14E+0 3.97E-2 1.75E-2 00E+0 6.1E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water pollution m³ 2.15E-1 2.07E-1 1.53E-5 6.81E-5 00E+0 7.73E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Air pollution m³ 4.03E+0 3.87E+0 4.08E-2 2.45E-2 00E+0 8.94E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 3.9E+0 3.89E+0 4.51E-5 4.7E-5 00E+0 3.87E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 3.39E-1 3.39E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 4.23E+0 4.23E+0 4.51E-5 4.7E-5 00E+0 3.87E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 4.49E+0 4.36E+0 4.23E-2 1.89E-2 00E+0 6.96E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 1.04E+0 1.04E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 5.53E+0 5.4E+0 4.23E-2 1.89E-2 00E+0 6.96E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 4.12E-3 4.12E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable secondary fuels MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 1.34E-2 1.34E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 5.24E-4 5.22E-4 3.51E-9 1.83E-8 00E+0 1.34E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 2.78E-2 2.77E-2 00E+0 2.49E-5 00E+0 1.07E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 4.15E-6 4.15E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Components for re-use kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Exported energy MJ by energy vector 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of primary energy during the life cycle MJ 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
