TRNE-00001-V01.01

Download the PEP PDF
Name of the PEP

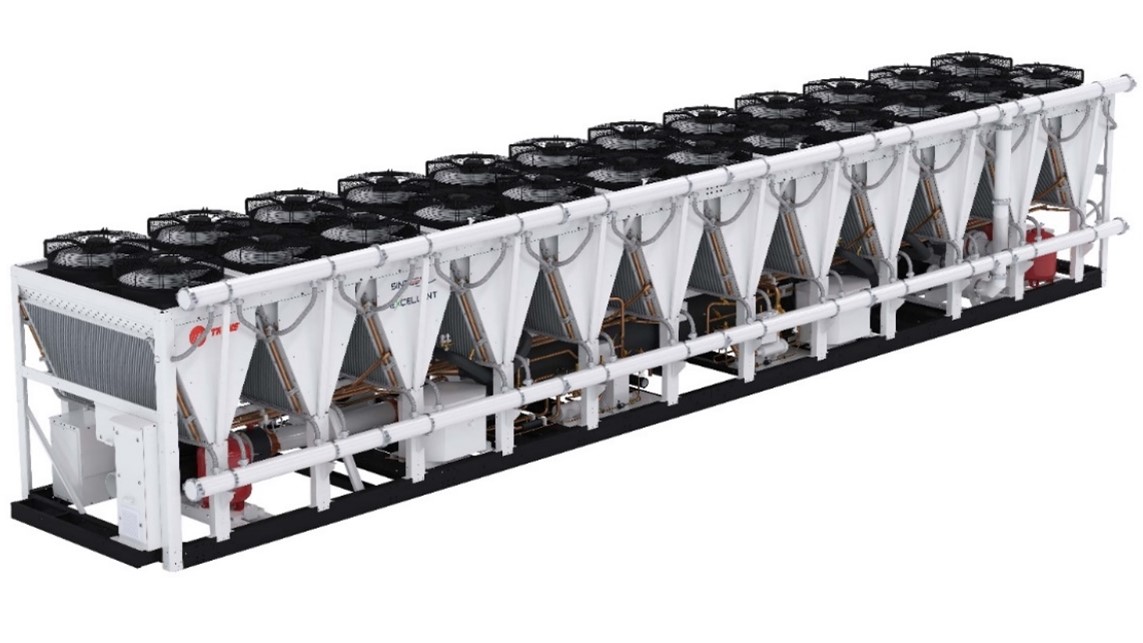

Sintesis™ eXcellent GVAF Chillers
Trademark / Owner
TRANE
TRANE TECHNOLOGIES
Collective PEP
No
Product classification
  • Heating, ventilation and air conditioning equipement
  • Refrigeration
  • Chillers
Date of publication
2024/12/20
Date of end of validity
2029/12/20
Date of verification
2024/12/23
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0013-ed3-2023 06 06
Use lifte time
22 years
Reference Product
GVAF 285 XSE
Energy model used
Europe
Total mass
8470 kg
Constitution
Plastic
1.30 %
110.11000 kg
Metal
96.60 %
8182.02000 kg
Other
2.10 %
177.87000 kg
Comments
N/A
Covered products by list
- GVAF 105 XSE
- GVAF 140 XSE
- GVAF 140 XSS
- GVAF 210 XSE
- GVAF 210 XSS
- GVAF 285 XSE
- GVAF 285 XSS
- GVAF 330 XSE
- GVAF 420 XSE
- GVAF 455 XSS
Functional Unit
1 kW
Description
To produce 1 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product
Extrapolation Rules
N/A
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 7.02E+2 4.11E+1 5.67E-1 7.18E-3 6.52E+2 8.46E+0 0 0 0 0 0 0 0 -1.21E+1
Climate change - fossil fuels kg.eq.CO2 6.96E+2 4.12E+1 5.67E-1 7.18E-3 6.46E+2 8.46E+0 0 0 0 0 0 0 0 -1.21E+1
Climate change - biogenics kg.eq.CO2 5.63E+0 -0.17E+0 -0E+0 0 5.79E+0 2.54E-3 0 0 0 0 0 0 0 -0E+0
Climate change - land use and land use transformation kg.eq.CO2 1.24E-1 2.61E-2 3.17E-4 0 9.79E-2 1.64E-4 0 0 0 0 0 0 0 -0.01E+0
Ozone depletion kg.eq.CFC-11 1.47E-8 1.34E-10 8.36E-14 2.01E-13 1.46E-8 3.76E-12 0 0 0 0 0 0 0 -3.94E-11
Acidification (AP) mole.eq.H+ 1.42E+0 1.74E-1 2.82E-3 1.07E-4 1.25E+0 4.48E-4 0 0 0 0 0 0 0 -0.05E+0
Freshwater eutrophication kg.eq.P 2.82E-3 1.46E-4 2.88E-6 2.2E-9 2.67E-3 9.76E-7 0 0 0 0 0 0 0 -1.5E-5
Marine aquatic eutrophication kg.eq.N 3.46E-1 3.38E-2 1.41E-3 4.9E-5 3.11E-1 1.63E-4 0 0 0 0 0 0 0 -0.01E+0
Terrestrial eutrophication mole.eq.N 3.64E+0 3.65E-1 1.55E-2 5.36E-4 3.26E+0 1.92E-3 0 0 0 0 0 0 0 -0.1E+0
Photochemical ozone formation kg.eq.NMVOC 9.28E-1 1.02E-1 2.88E-3 1.35E-4 8.23E-1 3.86E-4 0 0 0 0 0 0 0 -0.03E+0
Depletion of abiotic resources - elements kg.eq.Sb 1.52E-3 1.35E-3 7.47E-8 0 1.77E-4 1.03E-8 0 0 0 0 0 0 0 -0E+0
Depletion of abiotic resources - fossil fuels MJ 1.4E+4 4.99E+2 7.5E+0 9.92E-2 1.35E+4 1.63E+0 0 0 0 0 0 0 0 -1.38E+2
Water requirement m³.eq.deprivation worldwide 1.82E+2 3.39E+0 3.39E-2 0 1.78E+2 4.99E-2 0 0 0 0 0 0 0 -1.83E+0
Emission of fine particles incidence of diseases 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ionizing radiation, human health kBq.eq.U235 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ecotoxicity (fresh water) CTUe 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Human toxicity, carcinogenic effects CTUh 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Human toxicity, non-carcinogenic effects CTUh 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Impacts related to land use/soil quality - 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 9.86E+3 9.33E+1 3.32E-1 0 9.77E+3 1.61E-1 0 0 0 0 0 0 0 -4.43E+1
Use of renewable primary energy resources used as raw materials MJ 4.89E+0 4.89E+0 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9.87E+3 9.82E+1 3.32E-1 0 9.77E+3 1.61E-1 0 0 0 0 0 0 0 -4.43E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.4E+4 4.96E+2 7.5E+0 9.92E-2 1.35E+4 1.63E+0 0 0 0 0 0 0 0 -1.38E+2
Use of non-renewable primary energy resources used as raw materials MJ 4E+0 4E+0 0 0 0 0 0 0 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.4E+4 5E+2 7.5E+0 9.92E-2 1.35E+4 1.63E+0 0 0 0 0 0 0 0 -1.38E+2
Use of secondary materials kg 4.58E+0 4.58E+0 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 7.62E+0 1.4E-1 1.1E-3 0 7.48E+0 1.21E-3 0 0 0 0 0 0 0 -0.47E+0
Total use of primary energy during the life cycle MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Hazardous waste disposed of kg 2.88E-4 2.69E-4 1.01E-9 0 1.95E-5 3.61E-10 0 0 0 0 0 0 0 -0E+0
Non-hazardous waste disposed of kg 1.69E+1 4.48E+0 7.47E-4 0 1.12E+1 1.28E+0 0 0 0 0 0 0 0 -2E+0
Radioactive waste disposed of kg 2.18E+0 1.85E-2 2.26E-5 0 2.16E+0 1.98E-5 0 0 0 0 0 0 0 -0E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 8.03E+0 7.89E-1 0 0 0 7.24E+0 0 0 0 0 0 0 0 0
Materials for energy recovery kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 2.57E+0 1.11E+0 0 0 0 1.46E+0 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Functional Unit
1 unit
Description
1 unit of Sintesis eXcellent™ GVAF with free cooling
Extrapolation Rules
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 6.7E+5 3.92E+4 5.41E+2 6.86E+0 6.22E+5 8.08E+3 0 0 0 0 0 0 0 -1.15E+4
Climate change - fossil fuels kg.eq.CO2 6.65E+5 3.93E+4 5.42E+2 6.86E+0 6.17E+5 8.08E+3 0 0 0 0 0 0 0 -1.15E+4
Climate change - biogenics kg.eq.CO2 5.37E+3 -1.62E+2 -0.58E+0 0 5.53E+3 2.42E+0 0 0 0 0 0 0 0 -4.17E+0
Climate change - land use and land use transformation kg.eq.CO2 1.19E+2 2.49E+1 3.03E-1 0 9.35E+1 1.57E-1 0 0 0 0 0 0 0 -1.33E+1
Ozone depletion kg.eq.CFC-11 1.41E-5 1.28E-7 7.98E-11 1.92E-10 1.39E-5 3.59E-9 0 0 0 0 0 0 0 -3.77E-8
Acidification (AP) mole.eq.H+ 1.36E+3 1.67E+2 2.7E+0 1.02E-1 1.19E+3 4.27E-1 0 0 0 0 0 0 0 -4.93E+1
Freshwater eutrophication kg.eq.P 2.7E+0 1.4E-1 2.75E-3 2.1E-6 2.55E+0 9.33E-4 0 0 0 0 0 0 0 -0.01E+0
Marine aquatic eutrophication kg.eq.N 3.31E+2 3.23E+1 1.34E+0 4.68E-2 2.97E+2 1.55E-1 0 0 0 0 0 0 0 -9.14E+0
Terrestrial eutrophication mole.eq.N 3.47E+3 3.49E+2 1.48E+1 5.12E-1 3.11E+3 1.83E+0 0 0 0 0 0 0 0 -9.56E+1
Photochemical ozone formation kg.eq.NMVOC 8.86E+2 9.71E+1 2.75E+0 1.29E-1 7.86E+2 3.69E-1 0 0 0 0 0 0 0 -2.86E+1
Depletion of abiotic resources - elements kg.eq.Sb 1.46E+0 1.29E+0 7.14E-5 0 1.69E-1 9.81E-6 0 0 0 0 0 0 0 -0.45E+0
Depletion of abiotic resources - fossil fuels MJ 1.34E+7 4.77E+5 7.16E+3 9.47E+1 1.29E+7 1.56E+3 0 0 0 0 0 0 0 -1.32E+5
Water requirement m³.eq.deprivation worldwide 1.74E+5 3.24E+3 3.24E+1 0 1.7E+5 4.77E+1 0 0 0 0 0 0 0 -1.75E+3
Emission of fine particles incidence of diseases 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ionizing radiation, human health kBq.eq.U235 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ecotoxicity (fresh water) CTUe 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Human toxicity, carcinogenic effects CTUh 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Human toxicity, non-carcinogenic effects CTUh 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Impacts related to land use/soil quality - 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 9.42E+6 8.91E+4 3.17E+2 0 9.33E+6 1.54E+2 0 0 0 0 0 0 0 -4.23E+4
Use of renewable primary energy resources used as raw materials MJ 4.67E+3 4.67E+3 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9.42E+6 9.38E+4 3.17E+2 0 9.33E+6 1.54E+2 0 0 0 0 0 0 0 -4.23E+4
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 1.34E+7 4.73E+5 7.16E+3 9.47E+1 1.29E+7 1.56E+3 0 0 0 0 0 0 0 -1.32E+5
Use of non-renewable primary energy resources used as raw materials MJ 3.82E+3 3.82E+3 0 0 0 0 0 0 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 1.34E+7 4.77E+5 7.16E+3 9.47E+1 1.29E+7 1.56E+3 0 0 0 0 0 0 0 -1.32E+5
Use of secondary materials kg 4.38E+3 4.38E+3 0 0 0 0 0 0 0 0 0 0 0 0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 7.28E+3 1.34E+2 1.05E+0 0 7.14E+3 1.15E+0 0 0 0 0 0 0 0 -4.49E+2
Total use of primary energy during the life cycle MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Hazardous waste disposed of kg 2.75E-1 2.56E-1 9.65E-7 0 1.87E-2 3.44E-7 0 0 0 0 0 0 0 -0.16E+0
Non-hazardous waste disposed of kg 1.62E+4 4.28E+3 7.13E-1 0 1.06E+4 1.23E+3 0 0 0 0 0 0 0 -1.91E+3
Radioactive waste disposed of kg 2.08E+3 1.76E+1 2.16E-2 0 2.06E+3 1.89E-2 0 0 0 0 0 0 0 -4.62E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 7.67E+3 7.53E+2 0 0 0 6.91E+3 0 0 0 0 0 0 0 0
Materials for energy recovery kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 2.45E+3 1.06E+3 0 0 0 1.4E+3 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
