General informations

Name of the PEP

Pompe à chaleur air/eau Vaillant aroTHERM plus plus assurant le chauffage pour le logement collectif

Trademark / Owner

VAILLANT

SAUNIER DUVAL EAU CHAUDE CHAUFFAGE (SDECC)

Collective PEP

Product classification

Heating, ventilation and air conditioning equipement
Heating and/or air conditioning and/or hot water heating
Collective or tertiary heat pumps
Air/Water

Geographical validity area

FRA

Date of publication

2024/05/01

Date of end of validity

2029/05/01

Date of verification

2024/05/24

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0013-ed3-2023 06 06

Use lifte time

22 years

Reference Product

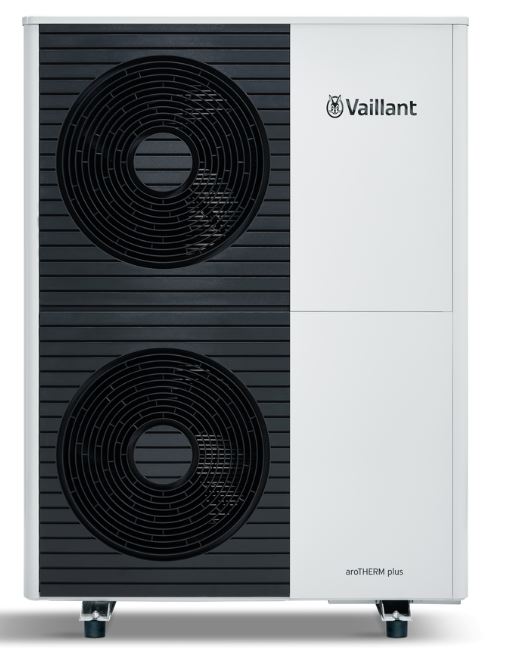

aroTHERM plus VWL 155/6 A 400V + interface VWZAI

Energy model used

France

Bill of material

Total mass

271 kg

Constitution

Plastic

12.20 %

30.08100 kg

Metal

68.80 %

204.33400 kg

Other

19.00 %

36.58500 kg

Homogeneous environmental family

Covered products by list

- 0010021643 + 0010031647
- 0010031660 + 0010031647
- 0010021642 + 0010031647
- 0010021644 + 0010031647
- aroTHERM plus VWL 125-6 A 230V + interface VWZAI
- aroTHERM plus VWL 125-6 A 400V + interface VWZAI
- aroTHERM plus VWL 155-6 A 230V + interface VWZAI
- aroTHERM plus VWL 155-6 A 400V + interface VWZAI

Covered products or brand by text

0010021643 + 0010031647 0010031660 + 0010031647 0010021642 + 0010031647 0010021644 + 0010031647

Functional unit impacts

Functional Unit

1 kW

Description

Produire 1kW de chauffage, selon le scénario d'usage approprié défini dans la norme EN 14825 et pendant la durée de vie de référence de 22 ans du produit.

Extrapolation Rules

Regles d'extrapolation détaillée dans le PEP

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	7.75E+2	1.3E+2	1.24E+0	3.46E+0	6.3E+2	1.04E+1	1.58E-3	2.74E+0	6.27E+2	-3.97E+1
Climate change - fossil fuels	kg.eq.CO2	7.74E+2	1.34E+2	1.24E+0	5.2E-1	6.27E+2	1.03E+1	1.58E-3	2.74E+0	6.25E+2	-3.96E+1
Climate change - biogenics	kg.eq.CO2	3.44E-1	-5.08E+0	3.99E-4	2.94E+0	2.46E+0	2.63E-2	0	1.16E-3	2.45E+0	1.34E-1
Climate change - land use and land use transformation	kg.eq.CO2	9.76E-1	5.32E-1	6.16E-4	5.09E-5	4.32E-1	1.08E-2	0	7.17E-4	4.31E-1	-0.22E+0
Ozone depletion	kg.eq.CFC-11	4.72E-5	2.09E-5	2.69E-8	3.1E-9	2.61E-5	1.65E-7	0	2.5E-7	2.59E-5	-8.92E-7
Acidification (AP)	mole.eq.H+	7.29E+0	2.57E+0	2.71E-3	6.52E-4	4.39E+0	3.24E-1	0	1.29E-2	4.38E+0	-0.45E+0
Freshwater eutrophication	kg.eq.P	3.55E-2	1.41E-2	1.01E-5	1.11E-6	2.03E-2	1.05E-3	0	2.03E-5	2.03E-2	-0.01E+0
Marine aquatic eutrophication	kg.eq.N	8.49E-1	1.95E-1	6.66E-4	3.88E-4	6.37E-1	1.55E-2	0	2.33E-3	6.35E-1	-0.09E+0
Terrestrial eutrophication	mole.eq.N	9.76E+0	2.59E+0	6.93E-3	2.84E-3	6.95E+0	2.06E-1	0	2.1E-2	6.93E+0	-1.33E+0
Photochemical ozone formation	kg.eq.NMVOC	3.31E+0	8.26E-1	4.2E-3	9.89E-4	2.41E+0	6.82E-2	2.34E-2	2.33E-2	2.36E+0	-0.31E+0
Depletion of abiotic resources - elements	kg.eq.Sb	6.34E-2	2.97E-2	4.15E-6	3.58E-7	2.95E-2	4.07E-3	0	2.43E-6	2.95E-2	-0E+0
Depletion of abiotic resources - fossil fuels	MJ	8.72E+4	1.83E+3	1.76E+1	1.6E+0	8.53E+4	1.03E+2	0	1.54E+2	8.51E+4	-4.91E+2
Water requirement	m³.eq.deprivation worldwide	2.94E+2	5.57E+1	7.25E-2	2.92E-2	2.32E+2	5.78E+0	0	2.05E-1	2.32E+2	-7.16E+0
Emission of fine particles	incidence of diseases	3.82E-5	1.22E-5	9.2E-8	1.08E-8	2.5E-5	8.62E-7	0	1.15E-7	2.49E-5	-4.45E-6
Ionizing radiation, human health	kBq.eq.U235	8.51E+2	4.6E+0	8.91E-3	1.07E-3	8.46E+2	4.79E-1	0	2.82E-2	8.46E+2	-1.33E+0
Ecotoxicity (fresh water)	CTUe	8.66E+3	3.08E+3	8.69E+0	2.02E+0	5.27E+3	2.92E+2	2.57E-4	6.57E+1	5.21E+3	-2.04E+3
Human toxicity, carcinogenic effects	CTUh	1.45E-6	6.27E-7	5.64E-10	3.52E-10	7.49E-7	7E-8	0	9.97E-10	7.48E-7	-1.89E-7
Human toxicity, non-carcinogenic effects	CTUh	6.63E-5	2.84E-5	1.25E-8	3.08E-9	3.24E-5	5.44E-6	6.6E-11	1.88E-8	3.24E-5	-1.67E-6
Impacts related to land use/soil quality	-	5.96E+3	1.55E+3	1.06E+1	1.4E+0	4.27E+3	1.27E+2	0	8.68E+0	4.26E+3	-3.02E+2
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	7.56E+3	3.15E+2	2.76E-1	1.42E+1	7.21E+3	1.96E+1	0	5.94E-1	7.21E+3	-1.22E+2
Use of renewable primary energy resources used as raw materials	MJ	4.04E+1	5.46E+1	0	-1.42E+1	0	0	0	0	0	-3.08E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	7.6E+3	3.7E+2	2.76E-1	3.82E-2	7.21E+3	1.96E+1	0	5.94E-1	7.21E+3	-1.25E+2
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	8.72E+4	1.75E+3	1.76E+1	8.44E+0	8.53E+4	1.4E+2	0	1.54E+2	8.51E+4	-4.79E+2
Use of non-renewable primary energy resources used as raw materials	MJ	4.3E+1	8.67E+1	0	-6.85E+0	0	-3.69E+1	0	0	0	-1.26E+1
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	8.72E+4	1.84E+3	1.76E+1	1.6E+0	8.53E+4	1.03E+2	0	1.54E+2	8.51E+4	-4.91E+2
Use of secondary materials	kg	2.97E-1	2.97E-1	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	2.68E+1	2.19E+0	2.52E-3	1.57E-3	2.44E+1	1.64E-1	0	7.95E-3	2.44E+1	-0.6E+0
Total use of primary energy during the life cycle	MJ	9.48E+4	2.2E+3	1.79E+1	1.63E+0	9.25E+4	1.22E+2	0	1.54E+2	9.23E+4	-6.16E+2
Hazardous waste disposed of	kg	7.19E+1	3.17E+1	1.7E-2	2.08E-2	3.86E+1	1.51E+0	0	3.63E-2	3.86E+1	-1.2E+1
Non-hazardous waste disposed of	kg	1.81E+3	7.44E+2	1.02E+0	1.21E+0	9.54E+2	1.07E+2	0	2.53E-1	9.54E+2	-1.58E+2
Radioactive waste disposed of	kg	1.11E+0	3.29E-3	5.78E-6	6.94E-7	1.1E+0	3.65E-4	0	1.59E-5	1.1E+0	-0E+0
Components for re-use	kg	0	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	9.95E+0	0	0	0	0	9.95E+0	0	0	0	0
Materials for energy recovery	kg	1.09E+0	0	0	0	0	1.09E+0	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	7.59E-1	7.59E-1	0	0	0	0	0	0	0	0

Declared product impacts

Functional Unit

1 unit

Description

Assurer le chauffage à l’aide de la pompe à chaleur aroTHERM plus de 12.69 kW pour une durée de vie de référence de 22 ans du produit

Extrapolation Rules

Disponible dans la fiche PEP

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	9.83E+3	1.64E+3	1.57E+1	4.39E+1	8E+3	1.32E+2	2E-2	3.48E+1	7.96E+3	-5.04E+2
Climate change - fossil fuels	kg.eq.CO2	9.82E+3	1.7E+3	1.57E+1	6.6E+0	7.96E+3	1.31E+2	2E-2	3.48E+1	7.93E+3	-5.03E+2
Climate change - biogenics	kg.eq.CO2	4.37E+0	-6.45E+1	5.06E-3	3.73E+1	3.12E+1	3.33E-1	0	1.48E-2	3.12E+1	1.7E+0
Climate change - land use and land use transformation	kg.eq.CO2	1.24E+1	6.75E+0	7.81E-3	6.45E-4	5.48E+0	1.37E-1	0	9.1E-3	5.47E+0	-2.85E+0
Ozone depletion	kg.eq.CFC-11	5.99E-4	2.65E-4	3.42E-7	3.93E-8	3.32E-4	2.09E-6	0	3.17E-6	3.29E-4	-1.13E-5
Acidification (AP)	mole.eq.H+	9.25E+1	3.27E+1	3.43E-2	8.27E-3	5.57E+1	4.11E+0	0	1.64E-1	5.55E+1	-5.72E+0
Freshwater eutrophication	kg.eq.P	4.5E-1	1.79E-1	1.28E-4	1.41E-5	2.58E-1	1.33E-2	0	2.57E-4	2.58E-1	-0.12E+0
Marine aquatic eutrophication	kg.eq.N	1.08E+1	2.48E+0	8.45E-3	4.92E-3	8.08E+0	1.96E-1	0	2.96E-2	8.06E+0	-1.13E+0
Terrestrial eutrophication	mole.eq.N	1.24E+2	3.29E+1	8.8E-2	3.61E-2	8.82E+1	2.62E+0	0	2.66E-1	8.8E+1	-1.69E+1
Photochemical ozone formation	kg.eq.NMVOC	4.2E+1	1.05E+1	5.33E-2	1.25E-2	3.05E+1	8.66E-1	2.97E-1	2.95E-1	3E+1	-3.97E+0
Depletion of abiotic resources - elements	kg.eq.Sb	8.04E-1	3.77E-1	5.26E-5	4.54E-6	3.75E-1	5.17E-2	0	3.08E-5	3.75E-1	-0.05E+0
Depletion of abiotic resources - fossil fuels	MJ	1.11E+6	2.33E+4	2.23E+2	2.02E+1	1.08E+6	1.3E+3	0	1.95E+3	1.08E+6	-6.23E+3
Water requirement	m³.eq.deprivation worldwide	3.73E+3	7.07E+2	9.2E-1	3.71E-1	2.95E+3	7.34E+1	0	2.6E+0	2.95E+3	-9.08E+1
Emission of fine particles	incidence of diseases	4.85E-4	1.55E-4	1.17E-6	1.37E-7	3.18E-4	1.09E-5	0	1.45E-6	3.16E-4	-5.65E-5
Ionizing radiation, human health	kBq.eq.U235	1.08E+4	5.84E+1	1.13E-1	1.36E-2	1.07E+4	6.08E+0	0	3.58E-1	1.07E+4	-1.68E+1
Ecotoxicity (fresh water)	CTUe	1.1E+5	3.91E+4	1.1E+2	2.56E+1	6.69E+4	3.71E+3	3.27E-3	8.34E+2	6.61E+4	-2.58E+4
Human toxicity, carcinogenic effects	CTUh	1.84E-5	7.96E-6	7.16E-9	4.47E-9	9.51E-6	8.88E-7	0	1.26E-8	9.5E-6	-2.4E-6
Human toxicity, non-carcinogenic effects	CTUh	8.41E-4	3.6E-4	1.58E-7	3.91E-8	4.12E-4	6.91E-5	8.37E-10	2.39E-7	4.11E-4	-2.12E-5
Impacts related to land use/soil quality	-	7.56E+4	1.97E+4	1.35E+2	1.77E+1	5.42E+4	1.62E+3	0	1.1E+2	5.41E+4	-3.83E+3
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	9.6E+4	4E+3	3.51E+0	1.81E+2	9.15E+4	2.49E+2	0	7.53E+0	9.15E+4	-1.55E+3
Use of renewable primary energy resources used as raw materials	MJ	5.13E+2	6.93E+2	0	-1.8E+2	0	0	0	0	0	-3.91E+1
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	9.65E+4	4.69E+3	3.51E+0	4.85E-1	9.15E+4	2.49E+2	0	7.53E+0	9.15E+4	-1.59E+3
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.11E+6	2.22E+4	2.23E+2	1.07E+2	1.08E+6	1.77E+3	0	1.95E+3	1.08E+6	-6.07E+3
Use of non-renewable primary energy resources used as raw materials	MJ	5.46E+2	1.1E+3	0	-8.69E+1	0	-4.68E+2	0	0	0	-1.61E+2
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.11E+6	2.33E+4	2.23E+2	2.02E+1	1.08E+6	1.3E+3	0	1.95E+3	1.08E+6	-6.23E+3
Use of secondary materials	kg	3.77E+0	3.77E+0	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	3.4E+2	2.78E+1	3.2E-2	1.99E-2	3.1E+2	2.08E+0	0	1.01E-1	3.1E+2	-7.59E+0
Total use of primary energy during the life cycle	MJ	1.2E+6	2.8E+4	2.27E+2	2.07E+1	1.17E+6	1.55E+3	0	1.96E+3	1.17E+6	-7.82E+3
Hazardous waste disposed of	kg	9.13E+2	4.03E+2	2.15E-1	2.64E-1	4.9E+2	1.91E+1	0	4.6E-1	4.9E+2	-1.52E+2
Non-hazardous waste disposed of	kg	2.29E+4	9.44E+3	1.29E+1	1.54E+1	1.21E+4	1.36E+3	0	3.21E+0	1.21E+4	-2E+3
Radioactive waste disposed of	kg	1.41E+1	4.17E-2	7.33E-5	8.81E-6	1.4E+1	4.63E-3	0	2.01E-4	1.4E+1	-0.01E+0
Components for re-use	kg	0	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	1.26E+2	0	0	0	0	1.26E+2	0	0	0	0
Materials for energy recovery	kg	1.38E+1	0	0	0	0	1.38E+1	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	9.63E+0	9.63E+0	0	0	0	0	0	0	0	0
