DDTH-00012-V01.02

Download the PEP PDF Extrapolation Rules

General informations

Name of the PEP

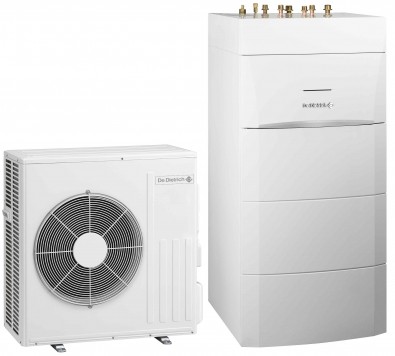

ALEZIO S V200

Trademark / Owner

DE DIETRICH

BDR THERMEA GROUP

Collective PEP

Product classification

Heating, ventilation and air conditioning equipement
Heating and/or air conditioning and/or hot water heating
Domestic heat pumps
Air/Water

Date of publication

2020/08/15

Date of end of validity

2025/08/15

Date of verification

PCR

PEP-PCR-ed3-2015 04 02

PSR

PSR-0013-ed2-2019 12 06

Use life time

17 years

Reference Product

ALEZIO S V200 6ME/EM V200 7692992Référence 7746792

Energy model used

France

Bill of material

Total mass

180.1 kg

Constitution

Plastic

76.20 %

Metal

9.00 %

Other

14.80 %

Homogeneous environmental family

Covered products or brand by text

ALEZIO S 4.5 MR/H V200 7692988 - ALEZIO S 4.5 MR/EM V200 7692990 - ALEZIO S 6 MR/H V200 7692991 - ALEZIO S 8 MR/H V200 7692995 - ALEZIO S 8 MR/EM V200 76929961 - ALEZIO S 11 MR/H V200 7692997 - ALEZIO S 11 MR/EM V200 7692999 - ALEZIO S 11 TR/H V200 7693000 - ALEZIO S 11 TR/ET V200 7693001 - ALEZIO S 16 MR/H V200 7693002 - ALEZIO S 16 MR/EM V200 7693003 - ALEZIO S 16 TR/H V200 7693004 - ALEZIO S 16 TR/ET V200 7693005

Functional unit impacts

Functional Unit

1 kW

Description

Produire 1 kW de chauffage ainsi que la production d'eau chaude sanitaire, selon le scénario d’usage de référence et pendant une durée de vie de référence de 17 ans du produit

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Global warming	kg.eq.CO2	2.69E+3	4.23E+2	2.78E+0	1.01E+1	2.16E+3	9E+1	2.31E+2	3.73E+2	00E+0	00E+0	00E+0	1.56E+3	00E+0	00E+0
Ozone depletion	kg.eq.CFC-11	2.3E-3	2.39E-5	5.64E-9	8.01E-7	2.27E-3	4.21E-8	1.86E-8	4.82E-5	00E+0	00E+0	00E+0	2.22E-3	00E+0	00E+0
Acidification of soil and water	kg.eq.SO2	6.9E+0	8.42E-1	1.25E-2	2.11E-2	6.02E+0	6.46E-3	1.95E-4	2.33E-1	00E+0	00E+0	00E+0	5.79E+0	00E+0	00E+0
Water eutrophication	kg.eq.P04 3-	7.99E-1	1.68E-1	2.88E-3	1.93E-2	5.92E-1	1.72E-2	5.55E-5	6.44E-2	00E+0	00E+0	00E+0	5.28E-1	00E+0	00E+0
Photochemical Ozone formation	kg.eq.C2H4	5.27E-1	8.95E-2	8.89E-4	2.68E-3	4.34E-1	4.37E-4	3.4E-5	9.87E-2	00E+0	00E+0	00E+0	3.35E-1	00E+0	00E+0
Depletion of abiotic resources - elements	kg.eq.Sb	2.11E-2	2.03E-2	1.11E-7	2.47E-5	7.6E-4	4.7E-8	1.18E-8	1.15E-6	00E+0	00E+0	00E+0	7.59E-4	00E+0	00E+0
Depletion of abiotic resources - fossil fuels	MJ	2.38E+4	4.2E+3	3.91E+1	8.07E+1	1.94E+4	9.21E+0	6.35E+0	1.54E+3	00E+0	00E+0	00E+0	1.79E+4	00E+0	00E+0
Water pollution	m³	1.28E+5	3.48E+4	4.58E+2	1.1E+3	9.06E+4	1.29E+3	1.21E+1	1.19E+4	00E+0	00E+0	00E+0	7.88E+4	00E+0	00E+0
Air pollution	m³	1.47E+5	4.78E+4	1.14E+2	8.99E+2	9.47E+4	3.26E+3	8.74E+3	3.41E+4	00E+0	00E+0	00E+0	5.19E+4	00E+0	00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	1.04E+4	1.04E+2	5.25E-2	00E+0	1.03E+4	1.13E-1	3.3E-4	9.81E-1	00E+0	00E+0	00E+0	1.03E+4	00E+0	00E+0
Use of renewable primary energy resources used as raw materials	MJ	8.32E+1	7.84E+1	00E+0	4.73E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.05E+4	1.82E+2	5.25E-2	3.19E+0	1.03E+4	1.13E-1	3.3E-4	9.81E-1	00E+0	00E+0	00E+0	1.03E+4	00E+0	00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.43E+5	8.97E+3	3.93E+1	3.67E+2	1.34E+5	1.07E+1	1.98E+0	1.88E+3	00E+0	00E+0	00E+0	1.32E+5	00E+0	00E+0
Use of non-renewable primary energy resources used as raw materials	MJ	2.97E+2	2.77E+2	00E+0	6.35E+0	1.37E+1	00E+0	4.97E+0	8.73E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.43E+5	9.25E+3	3.93E+1	3.74E+2	1.34E+5	1.07E+1	6.95E+0	1.89E+3	00E+0	00E+0	00E+0	1.32E+5	00E+0	00E+0
Use of secondary materials	kg	2.03E+1	1.89E+1	00E+0	1.39E+0	6.07E-2	00E+0	00E+0	6.07E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of non-renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Net use of fresh water	m³	3.7E+4	1.24E+2	2.49E-4	1.17E+0	3.69E+4	1.64E-2	5.86E-4	1.09E+0	00E+0	00E+0	00E+0	3.69E+4	00E+0	00E+0
Hazardous waste disposed of	kg	3.23E+2	3.06E+2	00E+0	8.42E+0	8.05E+0	4.15E-3	4.89E-3	5.11E+0	00E+0	00E+0	00E+0	2.93E+0	00E+0	00E+0
Non-hazardous waste disposed of	kg	3.49E+3	2.48E+2	9.89E-2	1.04E+1	3.2E+3	3.13E+1	2.12E-3	2.1E+1	00E+0	00E+0	00E+0	3.18E+3	00E+0	00E+0
Radioactive waste disposed of	kg	4.71E+1	1.32E-1	7.05E-5	2.38E-3	4.7E+1	1.39E-4	5.88E-6	1.81E-2	00E+0	00E+0	00E+0	4.7E+1	00E+0	00E+0
Components for re-use	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for recycling	kg	2.16E+1	5.77E+0	00E+0	5E+0	4.97E-1	1.03E+1	00E+0	4.97E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for energy recovery	kg	1.18E+1	8.54E-8	00E+0	6.65E-1	5.17E-1	1.06E+1	00E+0	5.17E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Exported energy	MJ by energy vector	5.69E-1	1.14E-1	00E+0	5.72E-2	00E+0	3.98E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of primary energy during the life cycle	MJ	1.54E+5	9.43E+3	3.94E+1	3.77E+2	1.44E+5	1.09E+1	6.95E+0	1.89E+3	00E+0	00E+0	00E+0	1.42E+5	00E+0	00E+0

Declared product impacts

Functional Unit

1 unit

Description

Pompe à chaleur air/eau d’une puissance de XX* kW assurant la fonction de fournir la chaleur et la production d’eau chaude sanitaire à un logement individuel pour une durée de vie de référence de 17 ans (la puissance est à ajuster en fonction du produit considéré de la gamme)

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Global warming	kg.eq.CO2	9.67E+3	1.52E+3	1E+1	3.62E+1	7.78E+3	3.24E+2	8.31E+2	1.34E+3	00E+0	00E+0	00E+0	5.6E+3	00E+0	00E+0
Ozone depletion	kg.eq.CFC-11	8.27E-3	8.62E-5	2.03E-8	2.88E-6	8.18E-3	1.51E-7	6.7E-8	1.73E-4	00E+0	00E+0	00E+0	8.01E-3	00E+0	00E+0
Acidification of soil and water	kg.eq.SO2	2.49E+1	3.03E+0	4.5E-2	7.59E-2	2.17E+1	2.32E-2	7.03E-4	8.39E-1	00E+0	00E+0	00E+0	2.08E+1	00E+0	00E+0
Water eutrophication	kg.eq.P04 3-	2.88E+0	6.05E-1	1.04E-2	6.93E-2	2.13E+0	6.18E-2	2E-4	2.32E-1	00E+0	00E+0	00E+0	1.9E+0	00E+0	00E+0
Photochemical Ozone formation	kg.eq.C2H4	1.9E+0	3.22E-1	3.2E-3	9.65E-3	1.56E+0	1.57E-3	1.23E-4	3.55E-1	00E+0	00E+0	00E+0	1.21E+0	00E+0	00E+0
Depletion of abiotic resources - elements	kg.eq.Sb	7.59E-2	7.3E-2	4.01E-7	8.9E-5	2.74E-3	1.69E-7	4.26E-8	4.15E-6	00E+0	00E+0	00E+0	2.73E-3	00E+0	00E+0
Depletion of abiotic resources - fossil fuels	MJ	8.56E+4	1.51E+4	1.41E+2	2.9E+2	7E+4	3.32E+1	2.29E+1	5.56E+3	00E+0	00E+0	00E+0	6.44E+4	00E+0	00E+0
Water pollution	m³	4.62E+5	1.25E+5	1.65E+3	3.94E+3	3.26E+5	4.65E+3	4.37E+1	4.27E+4	00E+0	00E+0	00E+0	2.84E+5	00E+0	00E+0
Air pollution	m³	5.29E+5	1.72E+5	4.11E+2	3.23E+3	3.41E+5	1.18E+4	3.15E+4	1.23E+5	00E+0	00E+0	00E+0	1.87E+5	00E+0	00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	3.74E+4	3.74E+2	1.89E-1	00E+0	3.71E+4	4.08E-1	1.19E-3	3.53E+0	00E+0	00E+0	00E+0	3.71E+4	00E+0	00E+0
Use of renewable primary energy resources used as raw materials	MJ	2.99E+2	2.82E+2	00E+0	1.7E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	3.77E+4	6.57E+2	1.89E-1	1.15E+1	3.71E+4	4.08E-1	1.19E-3	3.53E+0	00E+0	00E+0	00E+0	3.71E+4	00E+0	00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	5.15E+5	3.23E+4	1.42E+2	1.32E+3	4.81E+5	3.87E+1	7.13E+0	6.76E+3	00E+0	00E+0	00E+0	4.74E+5	00E+0	00E+0
Use of non-renewable primary energy resources used as raw materials	MJ	1.07E+3	9.98E+2	00E+0	2.29E+1	4.93E+1	00E+0	1.79E+1	3.14E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	5.16E+5	3.33E+4	1.42E+2	1.34E+3	4.81E+5	3.87E+1	2.5E+1	6.79E+3	00E+0	00E+0	00E+0	4.74E+5	00E+0	00E+0
Use of secondary materials	kg	7.31E+1	6.79E+1	00E+0	4.99E+0	2.18E-1	00E+0	00E+0	2.18E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Use of non-renewable secondary fuels	MJ	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Net use of fresh water	m³	1.33E+5	4.48E+2	8.97E-4	4.21E+0	1.33E+5	5.9E-2	2.11E-3	3.91E+0	00E+0	00E+0	00E+0	1.33E+5	00E+0	00E+0
Hazardous waste disposed of	kg	1.16E+3	1.1E+3	00E+0	3.03E+1	2.9E+1	1.49E-2	1.76E-2	1.84E+1	00E+0	00E+0	00E+0	1.06E+1	00E+0	00E+0
Non-hazardous waste disposed of	kg	1.26E+4	8.94E+2	3.56E-1	3.73E+1	1.15E+4	1.13E+2	7.64E-3	7.57E+1	00E+0	00E+0	00E+0	1.15E+4	00E+0	00E+0
Radioactive waste disposed of	kg	1.7E+2	4.75E-1	2.54E-4	8.58E-3	1.69E+2	4.99E-4	2.12E-5	6.52E-2	00E+0	00E+0	00E+0	1.69E+2	00E+0	00E+0
Components for re-use	kg	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for recycling	kg	7.77E+1	2.08E+1	00E+0	1.8E+1	1.79E+0	3.71E+1	00E+0	1.79E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for energy recovery	kg	4.25E+1	3.08E-7	00E+0	2.39E+0	1.86E+0	3.82E+1	00E+0	1.86E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Exported energy	MJ by energy vector	2.05E+0	4.09E-1	00E+0	2.06E-1	00E+0	1.43E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of primary energy during the life cycle	MJ	5.53E+5	3.4E+4	1.42E+2	1.36E+3	5.18E+5	3.91E+1	2.5E+1	6.79E+3	00E+0	00E+0	00E+0	5.11E+5	00E+0	00E+0

Files

PEP PDF

Extrapolation rules

DDTH-00012-V01.02 -FR

DDTH-00012-V01.02
