LEDV-00062-V01.01

Download the PEP PDF
Name of the PEP

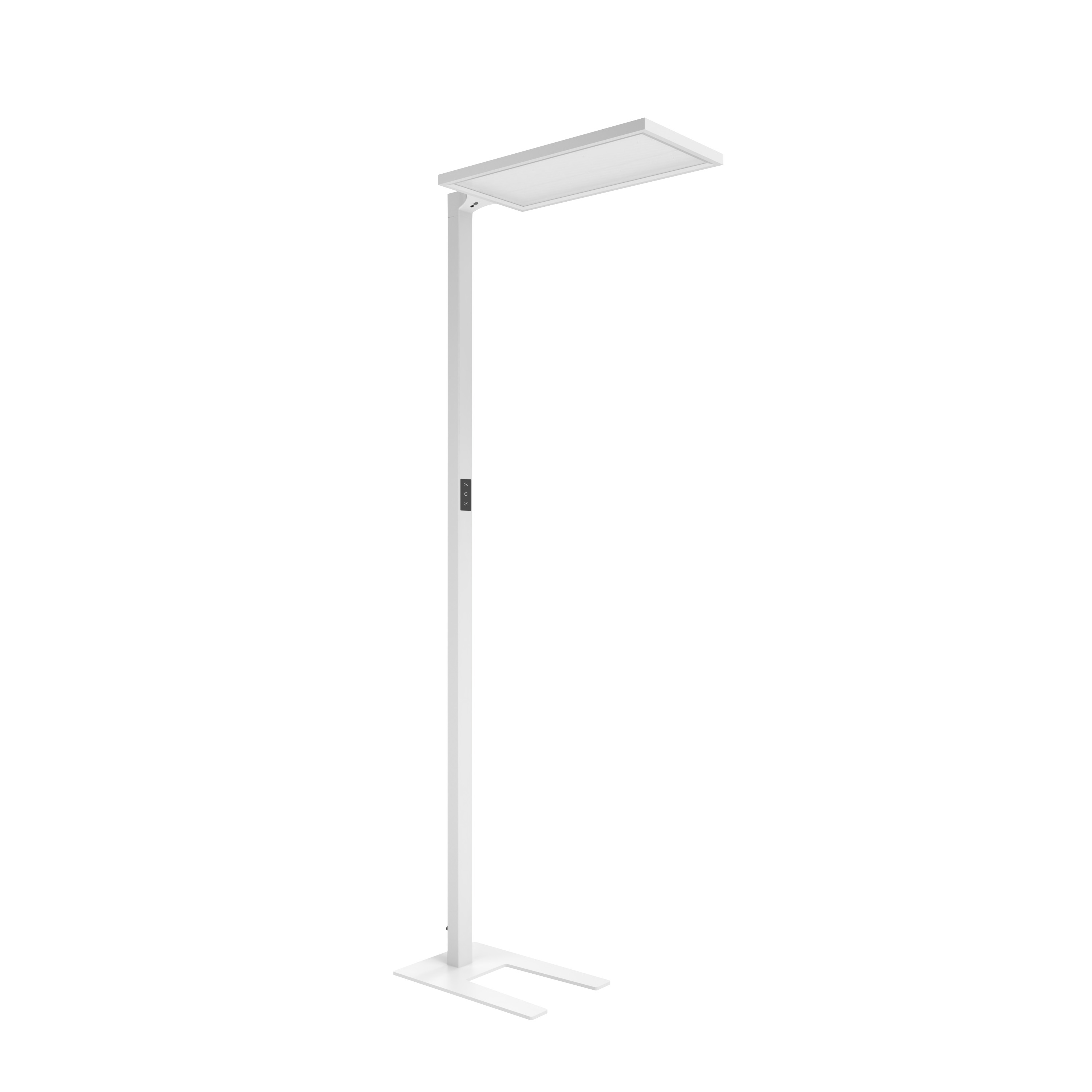

FLOORSTANDING COMPACT
Trademark / Owner
LEDVANCE
LEDVANCE GMBH
Collective PEP
No
Product classification
  • Lighting products
  • Indoor lighting products and control gear
  • Recessed
  • Non-linear recessed indoor lighting fixtures for tertiary lighting
Geographical validity area
european_union27
Date of publication
2025/11/01
Date of end of validity
2030/11/01
Date of verification
2025/11/04
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0014-ed2-2023 07 13
Use life time
40 years
Reference Product
FS COMP SN EU V 88W 840 WT
Energy model used
EU-28
Total mass
19.594 kg
Constitution
Plastic
8.44 %
1.11000 kg
Metal
83.83 %
11.02100 kg
Other
7.73 %
1.01800 kg
Covered products by list
- FS COMP SN EU V 88W 840 WT
- FS COMP SN EU V 88W 840 GY
- FS COMP SN EU V 88W 840 BK
- FS COMP SN CH V 88W 840 WT
- FS COMP SN CH V 88W 840 GY
- FS COMP SN CH V 88W 840 BK
- FS COMP SN EU V 88W 840 WT
Covered products or brand by text
FS COMP SN EU V 88W 840 WT FS COMP SN EU V 88W 840 GY FS COMP SN EU V 88W 840 BK FS COMP SN CH V 88W 840 WT FS COMP SN CH V 88W 840 GY FS COMP SN CH V 88W 840 BK
Functional Unit
1 unit
Description
Provide lighting that delivers an outgoing artificial luminous flux of 1,000 lumens during a reference lifetime of 35,000 hours.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 4.7E+1 3.48E+0 1.5E-1 1.44E-1 4.3E+1 1.42E-1 0 0 0 0 0 4.3E+1 0 -1.25E+0
Climate change - fossil fuels kg.eq.CO2 4.66E+1 3.76E+0 1.5E-1 8.82E-2 4.25E+1 1.42E-1 0 0 0 0 0 4.25E+1 0 -1.46E+0
Climate change - biogenics kg.eq.CO2 2.02E-1 -0.29E+0 -0E+0 5.59E-2 4.37E-1 -0E+0 0 0 0 0 0 4.37E-1 0 2.14E-1
Climate change - land use and land use transformation kg.eq.CO2 1.46E-1 4.85E-3 4.18E-4 3.2E-4 1.4E-1 3.01E-4 0 0 0 0 0 1.4E-1 0 -0E+0
Ozone depletion kg.eq.CFC-11 9.91E-10 2.37E-11 1.71E-14 2.34E-13 9.67E-10 1.09E-13 0 0 0 0 0 9.67E-10 0 -1.83E-11
Acidification (AP) mole.eq.H+ 1.16E-1 2.04E-2 2.47E-3 2.32E-4 9.3E-2 1.06E-4 0 0 0 0 0 9.3E-2 0 -0.01E+0
Freshwater eutrophication kg.eq.P 1.01E-4 8.12E-6 1.37E-7 1.99E-6 9.08E-5 9.5E-8 0 0 0 0 0 9.08E-5 0 -3.66E-6
Marine aquatic eutrophication kg.eq.N 2.65E-2 3.1E-3 8.88E-4 1.24E-4 2.23E-2 4.29E-5 0 0 0 0 0 2.23E-2 0 -0E+0
Terrestrial eutrophication mole.eq.N 2.94E-1 3.32E-2 9.71E-3 1.05E-3 2.5E-1 5.02E-4 0 0 0 0 0 2.5E-1 0 -0.01E+0
Photochemical ozone formation kg.eq.NMVOC 6.73E-2 9.22E-3 2.44E-3 1.91E-4 5.54E-2 1.02E-4 0 0 0 0 0 5.54E-2 0 -0E+0
Depletion of abiotic resources - elements kg.eq.Sb 1.1E-4 1.01E-4 5.44E-9 6.11E-8 8.83E-6 2.76E-9 0 0 0 0 0 8.83E-6 0 -5.67E-5
Depletion of abiotic resources - fossil fuels MJ 9.12E+2 4.23E+1 1.81E+0 1.19E+0 8.67E+2 5.01E-1 0 0 0 0 0 8.67E+2 0 -1.86E+1
Water requirement m³.eq.deprivation worldwide 1.13E+1 6.45E-1 3.9E-4 1.19E-2 1.06E+1 1.77E-2 0 0 0 0 0 1.06E+1 0 -0.21E+0
Emission of fine particles incidence of diseases 1.11E-6 2.77E-7 5.67E-8 1.7E-9 7.69E-7 1.07E-9 0 0 0 0 0 7.69E-7 0 -1.26E-7
Ionizing radiation, human health kBq.eq.U235 2.27E+1 8.03E-2 3.5E-4 5.2E-3 2.26E+1 1.73E-3 0 0 0 0 0 2.26E+1 0 -0.08E+0
Ecotoxicity (fresh water) CTUe 1.67E+2 1.88E+1 1.61E+0 3.61E-1 1.46E+2 4.99E-1 0 0 0 0 0 1.46E+2 0 -8.81E+0
Human toxicity, carcinogenic effects CTUh 1.65E-8 2.62E-9 2.35E-11 1.63E-11 1.38E-8 1.16E-11 0 0 0 0 0 1.38E-8 0 -1.11E-9
Human toxicity, non-carcinogenic effects CTUh 3.25E-7 3.17E-8 7.45E-10 1.34E-9 2.9E-7 7.28E-10 0 0 0 0 0 2.9E-7 0 -1.15E-8
Impacts related to land use/soil quality - 3.69E+2 2.01E+1 2.32E-1 1.39E+0 3.47E+2 2.02E-1 0 0 0 0 0 3.47E+2 0 -8.54E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 6.03E+2 1.01E+1 4.53E-2 3.53E-1 5.92E+2 9.09E-2 0 0 0 0 0 5.92E+2 0 -1.13E+1
Use of renewable primary energy resources used as raw materials MJ 3.22E+0 3.22E+0 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.06E+2 1.33E+1 4.53E-2 3.53E-1 5.92E+2 9.09E-2 0 0 0 0 0 5.92E+2 0 -1.13E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 9.12E+2 4.15E+1 1.81E+0 1.19E+0 8.67E+2 5.01E-1 0 0 0 0 0 8.67E+2 0 -1.86E+1
Use of non-renewable primary energy resources used as raw materials MJ 8.19E-1 8.19E-1 0 0 0 0 0 0 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 9.12E+2 4.23E+1 1.81E+0 1.19E+0 8.67E+2 5.01E-1 0 0 0 0 0 8.67E+2 0 -1.86E+1
Use of secondary materials kg 3.16E-1 3.16E-1 0 0 0 0 0 0 0 0 0 0 0 1.45E-1
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 4.8E-1 1.85E-2 2.71E-5 7.97E-4 4.6E-1 4.43E-4 0 0 0 0 0 4.6E-1 0 -0.01E+0
Total use of primary energy during the life cycle MJ 1.52E+3 5.56E+1 1.85E+0 1.55E+0 1.46E+3 5.92E-1 0 0 0 0 0 1.46E+3 0 -2.99E+1
Hazardous waste disposed of kg 1.21E-6 5.31E-8 6.55E-11 1.99E-8 1.13E-6 1.18E-10 0 0 0 0 0 1.13E-6 0 -3.32E-8
Non-hazardous waste disposed of kg 1.3E+0 5.7E-1 1.76E-4 1.57E-2 6.71E-1 4.32E-2 0 0 0 0 0 6.71E-1 0 -0.33E+0
Radioactive waste disposed of kg 1.37E-1 6.7E-4 2.51E-6 3.18E-5 1.37E-1 1.17E-5 0 0 0 0 0 1.37E-1 0 -0E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 4.12E-1 1.66E-2 0 1.47E-1 0 2.49E-1 0 0 0 0 0 0 0 0
Materials for energy recovery kg 7.69E-2 8.49E-3 0 1.61E-2 0 5.23E-2 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 6.9E-1 9.05E-2 0 1.04E-1 0 4.95E-1 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 7.7E-2 -0.08E+0 0 7.7E-2 0 0 0 0 0 0 0 0 0 0
Functional Unit
1 unit
Description
A luminaire providing an outgoing luminous flux of 12,600 lumen during a reference lifetime of 40 years.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Climate change - total kg.eq.CO2 1.69E+3 1.25E+2 5.41E+0 5.2E+0 1.55E+3 5.11E+0 0 0 0 0 0 1.55E+3 0 -4.5E+1
Climate change - fossil fuels kg.eq.CO2 1.68E+3 1.35E+2 5.4E+0 3.18E+0 1.53E+3 5.1E+0 0 0 0 0 0 1.53E+3 0 -5.26E+1
Climate change - biogenics kg.eq.CO2 7.26E+0 -1.05E+1 -0.01E+0 2.01E+0 1.57E+1 -0.01E+0 0 0 0 0 0 1.57E+1 0 7.72E+0
Climate change - land use and land use transformation kg.eq.CO2 5.26E+0 1.75E-1 1.51E-2 1.15E-2 5.05E+0 1.08E-2 0 0 0 0 0 5.05E+0 0 -0.13E+0
Ozone depletion kg.eq.CFC-11 3.57E-8 8.53E-10 6.16E-13 8.41E-12 3.48E-8 3.91E-12 0 0 0 0 0 3.48E-8 0 -6.59E-10
Acidification (AP) mole.eq.H+ 4.18E+0 7.33E-1 8.89E-2 8.34E-3 3.35E+0 3.83E-3 0 0 0 0 0 3.35E+0 0 -0.32E+0
Freshwater eutrophication kg.eq.P 3.64E-3 2.92E-4 4.93E-6 7.15E-5 3.27E-3 3.42E-6 0 0 0 0 0 3.27E-3 0 -0E+0
Marine aquatic eutrophication kg.eq.N 9.52E-1 1.11E-1 3.2E-2 4.45E-3 8.03E-1 1.55E-3 0 0 0 0 0 8.03E-1 0 -0.05E+0
Terrestrial eutrophication mole.eq.N 1.06E+1 1.19E+0 3.5E-1 3.77E-2 9E+0 1.81E-2 0 0 0 0 0 9E+0 0 -0.5E+0
Photochemical ozone formation kg.eq.NMVOC 2.42E+0 3.32E-1 8.79E-2 6.88E-3 1.99E+0 3.66E-3 0 0 0 0 0 1.99E+0 0 -0.13E+0
Depletion of abiotic resources - elements kg.eq.Sb 3.95E-3 3.63E-3 1.96E-7 2.2E-6 3.18E-4 9.94E-8 0 0 0 0 0 3.18E-4 0 -0E+0
Depletion of abiotic resources - fossil fuels MJ 3.28E+4 1.52E+3 6.5E+1 4.29E+1 3.12E+4 1.81E+1 0 0 0 0 0 3.12E+4 0 -6.7E+2
Water requirement m³.eq.deprivation worldwide 4.08E+2 2.32E+1 1.4E-2 4.29E-1 3.83E+2 6.36E-1 0 0 0 0 0 3.83E+2 0 -7.38E+0
Emission of fine particles incidence of diseases 3.98E-5 9.96E-6 2.04E-6 6.11E-8 2.77E-5 3.86E-8 0 0 0 0 0 2.77E-5 0 -4.54E-6
Ionizing radiation, human health kBq.eq.U235 8.16E+2 2.89E+0 1.26E-2 1.87E-1 8.13E+2 6.22E-2 0 0 0 0 0 8.13E+2 0 -2.8E+0
Ecotoxicity (fresh water) CTUe 6.03E+3 6.77E+2 5.8E+1 1.3E+1 5.26E+3 1.8E+1 0 0 0 0 0 5.26E+3 0 -3.17E+2
Human toxicity, carcinogenic effects CTUh 5.93E-7 9.45E-8 8.45E-10 5.86E-10 4.96E-7 4.19E-10 0 0 0 0 0 4.96E-7 0 -4E-8
Human toxicity, non-carcinogenic effects CTUh 1.17E-5 1.14E-6 2.68E-8 4.81E-8 1.04E-5 2.62E-8 0 0 0 0 0 1.04E-5 0 -4.16E-7
Impacts related to land use/soil quality - 1.33E+4 7.24E+2 8.35E+0 4.99E+1 1.25E+4 7.28E+0 0 0 0 0 0 1.25E+4 0 -3.08E+2
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 2.17E+4 3.64E+2 1.63E+0 1.27E+1 2.13E+4 3.27E+0 0 0 0 0 0 2.13E+4 0 -4.08E+2
Use of renewable primary energy resources used as raw materials MJ 1.16E+2 1.16E+2 0 0 0 0 0 0 0 0 0 0 0 0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 2.18E+4 4.8E+2 1.63E+0 1.27E+1 2.13E+4 3.27E+0 0 0 0 0 0 2.13E+4 0 -4.08E+2
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 3.28E+4 1.49E+3 6.5E+1 4.29E+1 3.12E+4 1.81E+1 0 0 0 0 0 3.12E+4 0 -6.7E+2
Use of non-renewable primary energy resources used as raw materials MJ 2.95E+1 2.95E+1 0 0 0 0 0 0 0 0 0 0 0 0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.28E+4 1.52E+3 6.5E+1 4.29E+1 3.12E+4 1.81E+1 0 0 0 0 0 3.12E+4 0 -6.7E+2
Use of secondary materials kg 1.14E+1 1.14E+1 0 0 0 0 0 0 0 0 0 0 0 5.23E+0
Use of renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Use of non-renewable secondary fuels MJ 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Net use of fresh water m³ 1.73E+1 6.65E-1 9.77E-4 2.87E-2 1.66E+1 1.59E-2 0 0 0 0 0 1.66E+1 0 -0.28E+0
Total use of primary energy during the life cycle MJ 5.47E+4 2E+3 6.67E+1 5.56E+1 5.25E+4 2.13E+1 0 0 0 0 0 5.25E+4 0 -1.08E+3
Hazardous waste disposed of kg 4.34E-5 1.91E-6 2.36E-9 7.16E-7 4.08E-5 4.24E-9 0 0 0 0 0 4.08E-5 0 -1.2E-6
Non-hazardous waste disposed of kg 4.68E+1 2.05E+1 6.35E-3 5.64E-1 2.42E+1 1.55E+0 0 0 0 0 0 2.42E+1 0 -1.18E+1
Radioactive waste disposed of kg 4.95E+0 2.41E-2 9.02E-5 1.14E-3 4.92E+0 4.21E-4 0 0 0 0 0 4.92E+0 0 -0.03E+0
Components for re-use kg 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Materials for recycling kg 1.48E+1 5.97E-1 0 5.28E+0 0 8.96E+0 0 0 0 0 0 0 0 0
Materials for energy recovery kg 2.77E+0 3.06E-1 0 5.8E-1 0 1.88E+0 0 0 0 0 0 0 0 0
Exported energy MJ by energy vector 2.48E+1 3.26E+0 0 3.74E+0 0 1.78E+1 0 0 0 0 0 0 0 0
Biogenic carbon content of the product kg of C 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Biogenic carbon content of the associated packaging kg of C 2.77E+0 -2.77E+0 0 2.77E+0 0 0 0 0 0 0 0 0 0 0
