ABBG-00254-V01.01 -EN

General informations

Name of the PEP

PSX Busbar

Trademark / Owner

ABB ASEA BROWN BOVERI

ABB ASEA BROWN BOVERI LTD

Collective PEP

No

Product classification

• Installation wiring devices for electric power and communication networks (≤ 63 amperes)
• Others
• Connection devices (except enclosures)
• Connector

Geographical validity area

DEU / NLD / CHE

Date of publication

2023/06/01

Date of end of validity

2028/06/01

Date of verification

2023/11/20

PCR

PEP-PCR-ed4-2021 09 06

PSR

PSR-0005-ed2-2016 03 29

Use life time

20 years

Reference Product

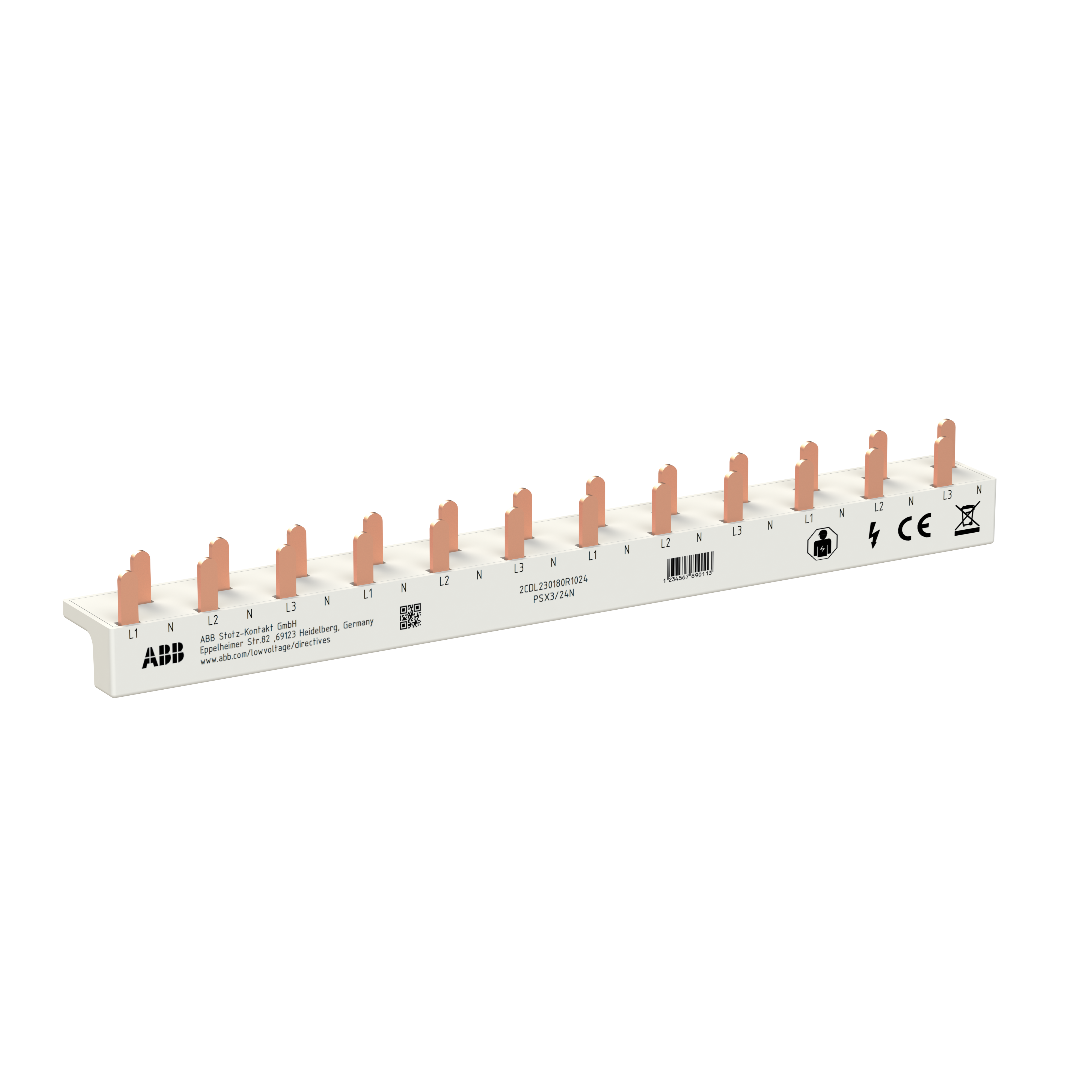

PSX3/24– 2CDL230180R1024 busbar

Energy model used

Germany, Switzerland and Netherlands

Bill of material

Total mass

0.107 kg

Constitution

Plastic

25.00 %

0.02700 kg

Metal

71.80 %

0.07700 kg

Other

3.20 %

0.00300 kg

Comments

difference on weight come due to rounded numbers.

Homogeneous environmental family

Covered products by list

- PSX3/24N
- PSX1/24N
- PSX3/16N
- PSX1/12N
- PSX1/8N
- BSKX

Functional unit impacts

Functional Unit

1 unit

Description

One busbar in continuous operation for a period of 20 years, supply-ing electrical power at a voltage of 400 V with usage up to 63 A.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Use B1	Maintenance B2	Repair B3	Replacement B4	Refurbishment B5	Operational energy use B6	Operational water use B7	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	2.47E+0	1.07E+0	7.77E-3	1.26E-3	1.36E+0	2.95E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.59E+0
Climate change - fossil fuels	kg.eq.CO2	2.04E+0	1.07E+0	7.76E-3	7.56E-4	9.41E-1	2.95E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.59E+0
Climate change - biogenics	kg.eq.CO2	4.24E-1	2.71E-3	3.14E-6	5.01E-4	4.21E-1	2.29E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	4.09E-4
Climate change - land use and land use transformation	kg.eq.CO2	3.13E-3	1.67E-3	4.38E-6	3.55E-7	1.45E-3	1.07E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Ozone depletion	kg.eq.CFC-11	1.39E-7	4.98E-8	1.68E-9	1.69E-10	8.28E-8	5.07E-9	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-2.32E-8
Acidification (AP)	mole.eq.H+	7.72E-2	6.98E-2	1.54E-4	3.06E-6	7.15E-3	9.15E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.04E+0
Freshwater eutrophication	kg.eq.P	3.66E-4	3.01E-4	3.9E-8	6.18E-9	6.49E-5	1.85E-7	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Marine aquatic eutrophication	kg.eq.N	4.42E-3	3.45E-3	3.87E-5	8.94E-7	9.04E-4	2.75E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Terrestrial eutrophication	mole.eq.N	6.09E-2	4.79E-2	4.3E-4	9.86E-6	1.23E-2	2.95E-4	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.02E+0
Photochemical ozone formation	kg.eq.NMVOC	1.65E-2	1.33E-2	1.14E-4	3E-6	2.95E-3	9.01E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.01E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1.74E-3	1.66E-3	1.38E-8	3.42E-9	7.34E-5	1.02E-7	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0E+0
Depletion of abiotic resources - fossil fuels	MJ	8.92E+1	1.33E+1	1.09E-1	1.12E-2	7.54E+1	3.37E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-7.23E+0
Water requirement	m³.eq.deprivation worldwide	1.94E+0	1.29E+0	2.81E-4	5.07E-5	6.49E-1	1.26E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.65E+0
Emission of fine particles	incidence of diseases	4.5E+1	7E+0	8E+0	9E+0	1E+1	1.1E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	1.2E+1
Ionizing radiation, human health	kBq.eq.U235	7.5E+1	1.3E+1	1.4E+1	1.5E+1	1.6E+1	1.7E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	1.8E+1
Ecotoxicity (fresh water)	CTUe	1.05E+2	1.9E+1	2E+1	2.1E+1	2.2E+1	2.3E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	2.4E+1
Human toxicity, carcinogenic effects	CTUh	1.35E+2	2.5E+1	2.6E+1	2.7E+1	2.8E+1	2.9E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	3E+1
Human toxicity, non-carcinogenic effects	CTUh	1.65E+2	3.1E+1	3.2E+1	3.3E+1	3.4E+1	3.5E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	3.6E+1
Impacts related to land use/soil quality	-	1.95E+2	3.7E+1	3.8E+1	3.9E+1	4E+1	4.1E+1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	4.2E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	7.25E+1	2.96E+0	1.06E-3	1.91E-4	6.95E+1	5.7E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-1.5E+0
Use of renewable primary energy resources used as raw materials	MJ	5.59E-2	5.59E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	7.25E+1	3.01E+0	1.06E-3	1.91E-4	6.95E+1	5.7E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-1.5E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	8.84E+1	1.25E+1	1.09E-1	1.12E-2	7.54E+1	3.37E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-7.23E+0
Use of non-renewable primary energy resources used as raw materials	MJ	7.85E-1	7.85E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	8.92E+1	1.33E+1	1.09E-1	1.12E-2	7.54E+1	3.37E-1	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-7.23E+0
Net use of fresh water	m³	2.66E-1	3.09E-2	9.63E-6	1.85E-6	2.35E-1	4.7E-5	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.02E+0
Total use of primary energy during the life cycle	MJ	1.5E+1	1E+0	2E+0	3E+0	4E+0	5E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	6E+0
Hazardous waste disposed of	kg	6.81E-1	3.8E-1	5.2E-3	8.05E-4	2.66E-1	3.03E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-0.19E+0
Non-hazardous waste disposed of	kg	1.04E-3	3.67E-5	7.47E-7	7.49E-8	9.96E-4	2.25E-6	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-1.73E-5
Radioactive waste disposed of	kg	7.25E+1	3.01E+0	1.06E-3	1.91E-4	6.95E+1	5.7E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	-1.5E+0
Components for re-use	kg	4.65E-2	4.65E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for recycling	kg	9.16E-2	3.97E-3	00E+0	2.83E-3	00E+0	8.48E-2	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Materials for energy recovery	kg	8.68E-3	00E+0	00E+0	3.17E-4	00E+0	8.37E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Biogenic carbon content of the product	kg of C	1E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
Biogenic carbon content of the associated packaging	kg of C	1.73E-3	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0	00E+0
