NMLS-00001-V01.01

Download the PEP PDF

General informations

Name of the PEP

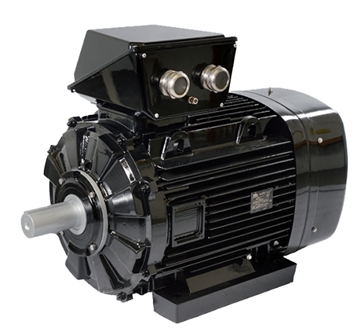

DYNEO+ Moteurs synchrones à réluctance assistée d'aimants

Trademark / Owner

NIDEC LEROY-SOMER

MOTEURS LEROY-SOMER

Collective PEP

Product classification

Others

Date of publication

2025/04/01

Date of end of validity

2030/04/01

Date of verification

2025/04/17

PCR

PEP-PCR-ed4-2021 09 06

PSR

No PSR

Use lifte time

25 years

Reference Product

DYNEO+ LSHRM315MR 200kW 1500tr/min 400V

Energy model used

Fabrication : France Utilisation : 66% Europe _ 33% US

Bill of material

Total mass

868 kg

Constitution

Plastic

0.24 %

2.10000 kg

Metal

99.30 %

825.80000 kg

Other

0.46 %

2.10000 kg

Homogeneous environmental family

Covered products by list

- DYNEO+ LSHRM160MR1 11kW 1500tr/min 400V
- DYNEO+ LSHRM160LR1 15kW 1500tr/min 400V
- DYNEO+ LSHRM180M1 18.5kW 1500tr/min 400V
- DYNEO+ LSHRM180L1 22kW 1500tr/min 400V
- DYNEO+ LSHRM200LR1 30kW 1500tr/min 400V
- DYNEO+ LSHRM225SZ1 37kW 1500tr/min 400V
- DYNEO+ LSHRM225MG 45kW 1500tr/min 400V
- DYNEO+ LSHRM250ME 55kW 1500tr/min 400V
- DYNEO+ LSHRM280SD 75kW 1500tr/min 400V
- DYNEO+ LSHRM280MD 90kW 1500tr/min 400V
- DYNEO+ LSHRM315SN1 110kW 1500tr/min 400V
- DYNEO+ LSHRM315MP 132kW 1500tr/min 400V
- DYNEO+ LSHRM315MP 160kW 1500tr/min 400V
- DYNEO+ LSHRM315MR 200kW 1500tr/min 400V
- DYNEO+ LSHRM160MR1 11kW 3000tr/min 400V
- DYNEO+ LSHRM160MR1 15kW 3000tr/min 400V
- DYNEO+ LSHRM160LR1 18.5kW 3000tr/min 400V
- DYNEO+ LSHRM180M1 22kW 3000tr/min 400V
- DYNEO+ LSHRM200LQ1 30kW 3000tr/min 400V
- DYNEO+ LSHRM200LQ1 37kW 3000tr/min 400V
- DYNEO+ LSHRM225MY1 45kW 3000tr/min 400V
- DYNEO+ LSHRM250ME 55kW 3000tr/min 400V
- DYNEO+ LSHRM280SC 75kW 3000tr/min 400V
- DYNEO+ LSHRM280MC 90kW 3000tr/min 400V
- DYNEO+ LSHRM315SN1 110kW 3000tr/min 400V
- DYNEO+ LSHRM315MN1 132kW 3000tr/min 400V
- DYNEO+ LSHRM315MN1 160kW 3000tr/min 400V
- DYNEO+ LSHRM315MN1 200kW 3000tr/min 400V

Covered products or brand by text

DYNEO+ 1500 et 3000tr/min INTERCHANGEABLE

Functional unit impacts

Functional Unit

1 kW

Description

Assurer la production d’ 1 kW de puissance mécanique pour une durée de vie de référence de 25 ans.

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Maintenance B2	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	5.36E+4	7.2E+1	1.49E+0	1.56E-3	5.36E+4	3.77E+0	3.11E+0	5.35E+4	-1.03E+1
Climate change - fossil fuels	kg.eq.CO2	1.62E+2	4.44E-1	4.18E-4	8.36E-5	1.61E+2	3.07E-3	2.96E-2	1.61E+2	-0.01E+0
Climate change - biogenics	kg.eq.CO2	5.33E+4	7.14E+1	1.49E+0	1.47E-3	5.33E+4	3.76E+0	3.08E+0	5.33E+4	-1.02E+1
Climate change - land use and land use transformation	kg.eq.CO2	1.22E+2	1.06E-1	8.04E-4	1.32E-7	1.21E+2	1.53E-3	3.25E-3	1.21E+2	-0.01E+0
Ozone depletion	kg.eq.CFC-11	6.65E-4	7.79E-7	3.17E-8	2.63E-11	6.64E-4	9.51E-8	4.65E-8	6.64E-4	-1.51E-7
Acidification (AP)	mole.eq.H+	2.25E+2	5.19E-1	1.12E-2	6.95E-6	2.25E+2	3.77E-2	2.35E-2	2.25E+2	-0.13E+0
Freshwater eutrophication	kg.eq.P	4.26E+1	6.31E-2	9.88E-5	2.96E-8	4.25E+1	3.14E-3	1.76E-3	4.25E+1	-0.01E+0
Marine aquatic eutrophication	kg.eq.N	4.16E+1	6.34E-2	2.86E-3	3.57E-6	4.15E+1	3.14E-3	3.35E-3	4.15E+1	-0.01E+0
Terrestrial eutrophication	mole.eq.N	3.57E+2	6.33E-1	3.1E-2	3.57E-5	3.57E+2	3.47E-2	3.51E-2	3.56E+2	-0.16E+0
Photochemical ozone formation	kg.eq.NMVOC	1.25E+2	2.44E-1	1.1E-2	1.54E-5	1.25E+2	1.89E-2	1.31E-2	1.25E+2	-0.06E+0
Depletion of abiotic resources - elements	kg.eq.Sb	1.21E-1	4.69E-3	3.66E-6	8.44E-10	1.16E-1	3.84E-4	1.63E-4	1.16E-1	-0E+0
Depletion of abiotic resources - fossil fuels	MJ	1.47E+6	8.38E+2	2.18E+1	1.74E-2	1.47E+6	4.71E+1	3.98E+1	1.47E+6	-1.04E+2
Water requirement	m³.eq.deprivation worldwide	1.31E+4	2.49E+1	9.56E-2	1.98E-5	1.3E+4	7.45E-1	6.32E-1	1.3E+4	-2.39E+0
Emission of fine particles	incidence of diseases	1.02E-3	6.34E-6	1.28E-7	1.77E-10	1.02E-3	2.11E-7	2.29E-7	1.02E-3	-9.28E-7
Ionizing radiation, human health	kBq.eq.U235	4.67E+4	1.04E+1	2.49E-2	8.33E-6	4.66E+4	1.83E-1	3.6E-1	4.66E+4	-0.28E+0
Ecotoxicity (fresh water)	CTUe	8.86E+4	4.29E+2	1.14E+1	8.18E-3	8.81E+4	2.28E+1	2.19E+1	8.81E+4	-8.82E+1
Human toxicity, carcinogenic effects	CTUh	1.56E-5	1.77E-7	6.59E-10	2.18E-13	1.54E-5	2.58E-8	1.79E-8	1.53E-5	-4.95E-8
Human toxicity, non-carcinogenic effects	CTUh	4.23E-4	4.49E-6	1.41E-8	5.61E-12	4.18E-4	4.81E-7	1.67E-7	4.18E-4	-9.98E-7
Impacts related to land use/soil quality	-	2.17E+5	6.45E+3	1.9E+1	1.93E-3	2.11E+5	1.9E+1	1.95E+1	2.11E+5	-4.87E+1
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	2.15E+5	9.72E+2	2.93E-1	1.01E-4	2.14E+5	2.66E+0	8E+0	2.14E+5	-1.29E+1
Use of renewable primary energy resources used as raw materials	MJ	1.68E-1	1.68E-1	0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	2.15E+5	9.72E+2	2.93E-1	1.01E-4	2.14E+5	2.66E+0	8E+0	2.14E+5	-1.29E+1
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	1.47E+6	8.38E+2	2.18E+1	1.74E-2	1.47E+6	4.71E+1	3.98E+1	1.47E+6	-1.04E+2
Use of non-renewable primary energy resources used as raw materials	MJ	0	0	0	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	1.47E+6	8.37E+2	2.18E+1	1.74E-2	1.47E+6	4.7E+1	3.98E+1	1.47E+6	-1.03E+2
Use of secondary materials	kg	0	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	-4.99E+3	-0.35E+0	-0.01E+0	-6.86E-7	-4.99E+3	-0.06E+0	-0.15E+0	-4.99E+3	9.21E-3
Total use of primary energy during the life cycle	MJ	1.69E+6	1.81E+3	2.21E+1	1.75E-2	1.69E+6	4.96E+1	4.78E+1	1.69E+6	-1.16E+2
Hazardous waste disposed of	kg	1.02E+3	6.39E+0	2.12E-2	1.64E-5	1.01E+3	1.3E-1	2.33E+0	1.01E+3	-2.98E+0
Non-hazardous waste disposed of	kg	1.81E+4	1.27E+2	1.78E+0	2.79E-4	1.79E+4	1.45E+1	5.36E+0	1.79E+4	-3.22E+1
Radioactive waste disposed of	kg	1.24E+1	3.03E-3	5.99E-6	1.85E-9	1.24E+1	4.66E-5	9.15E-5	1.24E+1	-7.31E-5
Components for re-use	kg	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	4.17E+0	0	0	0	0	4.17E+0	0	0	0
Materials for energy recovery	kg	0	0	0	0	0	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	1.9E-2	0	0	0	0	0	0	0	0

Declared product impacts

Functional Unit

200 kW

Description

DYNEO+ LSHRM315MR 200kW 1500tr/min 400V

Indicator	Unit	Total	Manufacturing	Distribution	Installation	Use	End of Life	Maintenance B2	Operational energy use B6	Benefits and loads beyond the system boundaries D
Climate change - total	kg.eq.CO2	1.07E+7	1.44E+4	2.98E+2	5.5E+0	1.07E+7	8.68E+2	7.09E+2	1.07E+7	-2.05E+3
Climate change - fossil fuels	kg.eq.CO2	3.24E+4	8.88E+1	8.35E-2	3.34E+0	3.23E+4	7.46E-1	5.94E+0	3.23E+4	-2.19E+0
Climate change - biogenics	kg.eq.CO2	1.07E+7	1.43E+4	2.98E+2	2.16E+0	1.07E+7	8.67E+2	7.02E+2	1.07E+7	-2.05E+3
Climate change - land use and land use transformation	kg.eq.CO2	2.43E+4	2.12E+1	1.61E-1	3.08E-4	2.43E+4	3.94E-1	6.65E-1	2.43E+4	-2.93E+0
Ozone depletion	kg.eq.CFC-11	1.33E-1	1.56E-4	6.35E-6	3.49E-8	1.33E-1	2.08E-5	1.17E-5	1.33E-1	-3.02E-5
Acidification (AP)	mole.eq.H+	4.51E+4	1.04E+2	2.23E+0	1.01E-2	4.5E+4	7.57E+0	4.9E+0	4.5E+4	-2.52E+1
Freshwater eutrophication	kg.eq.P	8.52E+3	1.26E+1	1.98E-2	1.62E-4	8.51E+3	6.04E-1	3.97E-1	8.51E+3	-2.5E+0
Marine aquatic eutrophication	kg.eq.N	8.31E+3	1.27E+1	5.72E-1	1.51E-2	8.3E+3	6.99E-1	7.16E-1	8.3E+3	-2.78E+0
Terrestrial eutrophication	mole.eq.N	7.14E+4	1.27E+2	6.19E+0	4.97E-2	7.13E+4	7.64E+0	7.46E+0	7.13E+4	-3.27E+1
Photochemical ozone formation	kg.eq.NMVOC	2.5E+4	4.89E+1	2.2E+0	2.17E-2	2.49E+4	4.13E+0	2.97E+0	2.49E+4	-1.13E+1
Depletion of abiotic resources - elements	kg.eq.Sb	2.42E+1	9.45E-1	7.32E-4	1.51E-6	2.32E+1	7.66E-2	3.26E-2	2.32E+1	-0.19E+0
Depletion of abiotic resources - fossil fuels	MJ	2.95E+8	1.68E+5	4.36E+3	2.35E+1	2.94E+8	1.07E+4	9.01E+3	2.94E+8	-2.07E+4
Water requirement	m³.eq.deprivation worldwide	2.61E+6	4.99E+3	1.91E+1	3.87E-2	2.61E+6	1.76E+2	1.31E+2	2.61E+6	-4.78E+2
Emission of fine particles	incidence of diseases	2.05E-1	1.27E-3	2.57E-5	2.34E-7	2.03E-1	5.51E-5	4.97E-5	2.03E-1	-0E+0
Ionizing radiation, human health	kBq.eq.U235	9.33E+6	2.08E+3	4.97E+0	1.8E-2	9.33E+6	3.49E+1	7.37E+1	9.33E+6	-5.64E+1
Ecotoxicity (fresh water)	CTUe	1.77E+7	8.61E+4	2.28E+3	2.51E+1	1.76E+7	6.47E+3	4.53E+3	1.76E+7	-1.76E+4
Human toxicity, carcinogenic effects	CTUh	3.11E-3	3.55E-5	1.32E-7	6.52E-10	3.07E-3	5.19E-6	4.15E-6	3.07E-3	-9.9E-6
Human toxicity, non-carcinogenic effects	CTUh	8.46E-2	9.05E-4	2.83E-6	2.49E-8	8.36E-2	9.33E-5	3.36E-5	8.35E-2	-0E+0
Impacts related to land use/soil quality	-	4.34E+7	1.29E+6	3.79E+3	5.98E+0	4.21E+7	5.05E+3	4.09E+3	4.21E+7	-9.75E+3
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials	MJ	4.29E+7	1.94E+5	5.87E+1	2.27E-1	4.27E+7	5.36E+2	1.62E+3	4.27E+7	-2.59E+3
Use of renewable primary energy resources used as raw materials	MJ	3.35E+1	3.35E+1	0	0	0	0	0	0	0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	4.29E+7	1.94E+5	5.87E+1	2.27E-1	4.27E+7	5.36E+2	1.62E+3	4.27E+7	-2.59E+3
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials	MJ	2.95E+8	1.68E+5	4.36E+3	2.35E+1	2.94E+8	1.07E+4	9.01E+3	2.94E+8	-2.07E+4
Use of non-renewable primary energy resources used as raw materials	MJ	0	0	0	0	0	0	0	0	0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials)	MJ	2.95E+8	1.67E+5	4.36E+3	2.35E+1	2.94E+8	1.06E+4	9E+3	2.94E+8	-2.07E+4
Use of secondary materials	kg	0	0	0	0	0	0	0	0	0
Use of renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0
Use of non-renewable secondary fuels	MJ	0	0	0	0	0	0	0	0	0
Net use of fresh water	m³	-9.98E+5	-7.03E+1	-1.23E+0	-0.01E+0	-9.98E+5	-1.01E+1	-3.13E+1	-9.97E+5	1.84E+0
Total use of primary energy during the life cycle	MJ	3.38E+8	3.62E+5	4.42E+3	2.38E+1	3.37E+8	1.12E+4	1.06E+4	3.37E+8	-2.33E+4
Hazardous waste disposed of	kg	2.04E+5	1.28E+3	4.25E+0	8.64E-2	2.03E+5	3.55E+1	4.66E+2	2.02E+5	-5.95E+2
Non-hazardous waste disposed of	kg	3.62E+6	2.56E+4	3.56E+2	6.27E+0	3.59E+6	2.99E+3	1.16E+3	3.59E+6	-6.44E+3
Radioactive waste disposed of	kg	2.47E+3	6.06E-1	1.2E-3	4.17E-6	2.47E+3	8.84E-3	1.87E-2	2.47E+3	-0.01E+0
Components for re-use	kg	0	0	0	0	0	0	0	0	0
Materials for recycling	kg	9.25E+2	0	0	0	9.19E+1	8.33E+2	9.19E+1	0	0
Materials for energy recovery	kg	0	0	0	0	0	0	0	0	0
Exported energy	MJ by energy vector	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the product	kg of C	0	0	0	0	0	0	0	0	0
Biogenic carbon content of the associated packaging	kg of C	3.8E+0	0	0	0	0	0	0	0	0
