ABBG-00008-V01.01

Download the PEP PDF
Name of the PEP
ABB Switch Disconnectors OTDC100-250_ (FI)
Trademark / Owner
ABB ASEA BROWN BOVERI
ABB ASEA BROWN BOVERI LTD
Collective PEP
No
Product classification
  • Installation wiring devices for electric power and communication networks (≤ 63 amperes)
  • Electrical Switchgear and Controlgear Solutions for cabinet
  • Circuit breakers for overcurrent protection
  • Switches / Disconnectors
Date of publication
2022/07/23
Date of end of validity
2027/07/23
Date of verification
2023/04/20
PCR
PEP-PCR-ed4-2021 09 06
PSR
PSR-0005-ed2-2016 03 29
Use lifte time
20 years
Reference Product

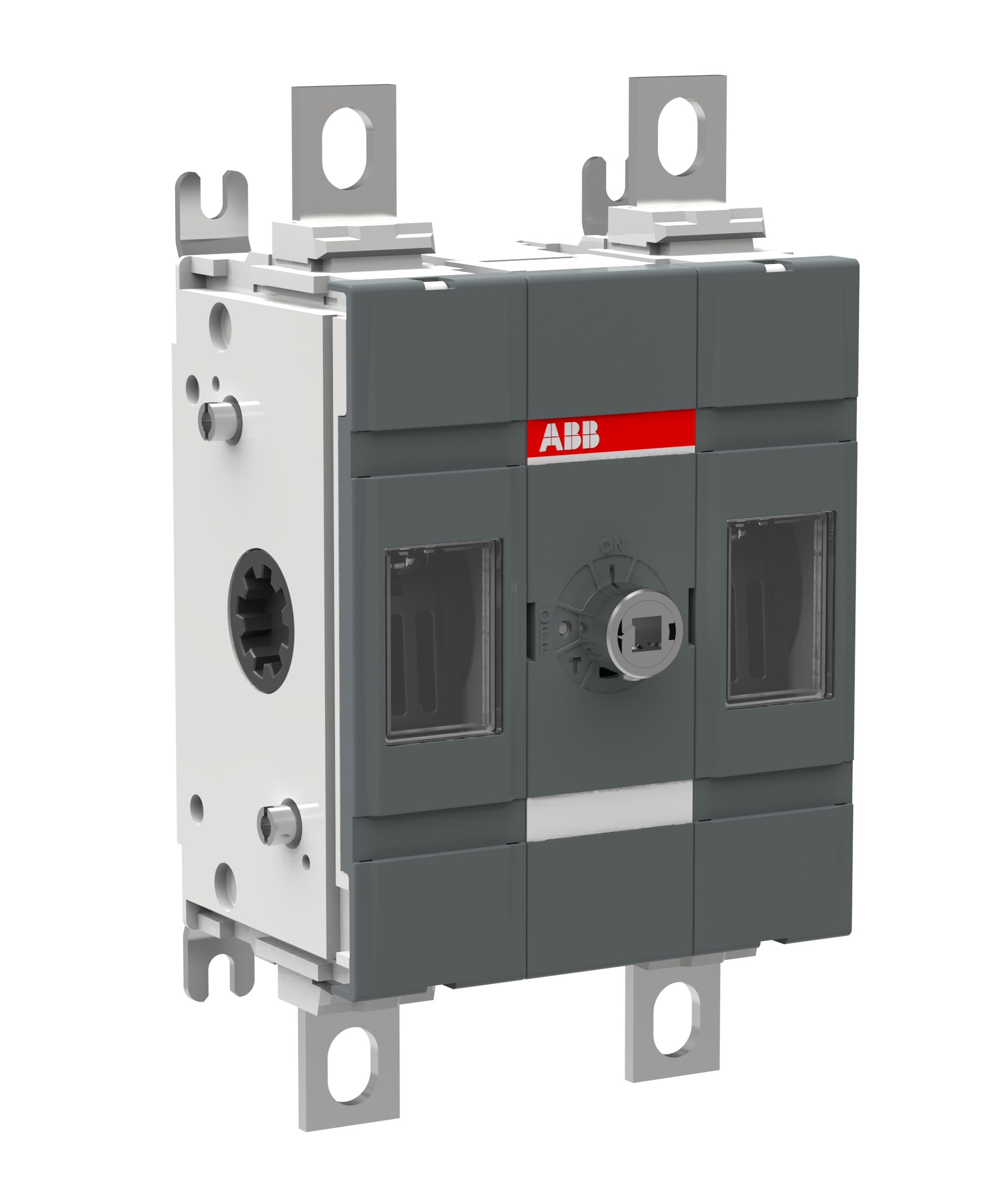

OTDC200E-2P Switch Disconnector
Energy model used
Global
Total mass
1.408 kg
Constitution
Plastic
40.41 %
0.56900 kg
Metal
45.17 %
0.63600 kg
Other
14.42 %
0.20300 kg
Covered products by list
- OTDC100-250_ (2 pole)
- OTDC100-250_ (4 pole)
- OTDC100-200_ (6 pole)
Functional Unit
1 unit
Description
The functional unit is to turn off all or part of an installation by separating the installation or part of the installation of all electrical energy, for safety reasons with a rated voltage U and rated current In ensuring isolation characterized by rated voltage Ui for a reference lifetime of 20 years.
Indicator Unit Total Manufacturing Distribution Installation Use End of Life Use
B1		 Maintenance
B2		 Repair
B3		 Replacement
B4		 Refurbishment
B5		 Operational energy use
B6		 Operational water use
B7		 Benefits and loads beyond the system boundaries
D
Global warming kg.eq.CO2 2.31E+1 8.37E+0 2.96E-1 9.84E-2 1.4E+1 3.43E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - total kg.eq.CO2 2.31E+1 8.37E+0 2.96E-1 9.84E-2 1.4E+1 3.43E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - fossil fuels kg.eq.CO2 2.29E+1 8.37E+0 2.95E-1 3.15E-2 1.39E+1 3.14E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - biogenics kg.eq.CO2 1.6E-1 -0.01E+0 2.88E-4 6.68E-2 7.75E-2 2.87E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Climate change - land use and land use transformation kg.eq.CO2 3.85E-2 1.34E-2 1.12E-4 1.18E-5 2.48E-2 1.56E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ozone depletion kg.eq.CFC-11 2.34E-6 6.3E-7 7.05E-8 7.47E-9 1.6E-6 3.25E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Acidification (AP) mole.eq.H+ 2.29E-1 1.13E-1 1.87E-3 1.65E-4 1.13E-1 1.36E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Freshwater eutrophication kg.eq.P 1.81E-2 8.95E-3 1.82E-5 2.09E-6 9.05E-3 4.82E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Marine aquatic eutrophication kg.eq.N 3.94E-2 2.05E-2 5.98E-4 8.71E-5 1.71E-2 1.09E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Terrestrial eutrophication mole.eq.N 3.16E-1 1.35E-1 6.56E-3 6.14E-4 1.71E-1 3.6E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Photochemical ozone formation kg.eq.NMVOC 1.01E-1 3.97E-2 1.91E-3 1.91E-4 5.83E-2 1.06E-3 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - elements kg.eq.Sb 4.01E-3 2.54E-3 6.7E-7 7.36E-8 1.47E-3 3.36E-7 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Depletion of abiotic resources - fossil fuels MJ 3.03E+2 1.21E+2 4.6E+0 4.91E-1 1.73E+2 3.09E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Water requirement m³.eq.deprivation worldwide 1.51E+1 1.58E+0 1.57E-2 2.5E-3 1.35E+1 2.33E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Emission of fine particles incidence of diseases 1.64E-6 5.83E-7 3.44E-8 3.76E-9 9.94E-7 2.52E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ionizing radiation, human health kBq.eq.U235 2.28E+0 9.91E-1 2.32E-2 2.49E-3 1.24E+0 1.83E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Ecotoxicity (fresh water) CTUe 1.66E+3 9.5E+2 3.57E+0 4.89E-1 6.99E+2 4.66E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Human toxicity, carcinogenic effects CTUh 4.94E-8 2.79E-8 1.04E-10 1.23E-11 2.11E-8 2.43E-10 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Human toxicity, non-carcinogenic effects CTUh 2.15E-6 1.2E-6 3.86E-9 5.36E-10 9.26E-7 1.43E-8 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Impacts related to land use/soil quality - 1.45E+2 7.53E+1 5.09E+0 5.62E-1 6.11E+1 2.82E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy, excluding renewable primary energy resources used as raw materials MJ 6.51E+2 1.44E+1 5.75E-2 6.61E-3 6.36E+2 1.74E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of renewable primary energy resources used as raw materials MJ 3.22E+0 3.22E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 6.54E+2 1.76E+1 5.75E-2 6.61E-3 6.36E+2 1.74E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy, excluding non-renewable primary energy resources used as raw materials MJ 2.88E+2 1.07E+2 4.6E+0 4.91E-1 1.73E+2 3.09E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of non-renewable primary energy resources used as raw materials MJ 1.47E+1 1.47E+1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Total use of non-renewable primary energy resources (primary energy and primary energy resources used as raw materials) MJ 3.03E+2 1.21E+2 4.6E+0 4.91E-1 1.73E+2 3.09E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Use of secondary materials kg 2.78E-1 2.78E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Net use of fresh water m³ 5.17E-1 5.86E-2 5.38E-4 8.4E-5 4.57E-1 8.81E-4 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Hazardous waste disposed of kg 1.2E-2 1.53E-3 1.09E-5 1.18E-6 1.05E-2 5E-6 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Non-hazardous waste disposed of kg 4.82E+0 1.77E+0 4.15E-1 6.24E-2 2.01E+0 5.63E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Radioactive waste disposed of kg 1.02E-3 5.2E-4 3.12E-5 3.29E-6 4.5E-4 1.59E-5 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for recycling kg 1.34E+0 2.54E-1 00E+0 3.06E-1 00E+0 7.84E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Materials for energy recovery kg 4.95E-2 4.43E-3 00E+0 1.7E-2 00E+0 2.81E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Biogenic carbon content of the product kg of C 2.3E-1 2.3E-1 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
Biogenic carbon content of the associated packaging kg of C 3.4E-2 3.4E-2 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0 00E+0
